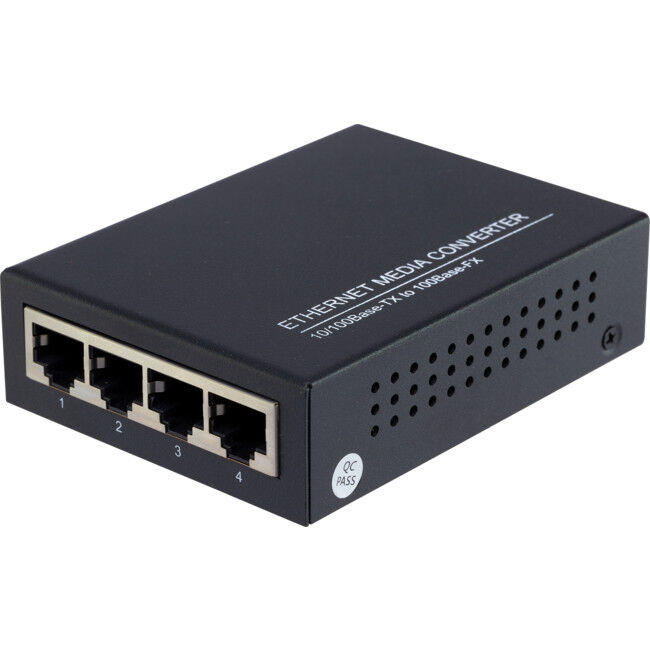

4P100SM20KSC is a Fast Ethernet Media Converter, extends the 10/100Mbbps twisted-pair network segments up to 20km over the fiber technology. The series media converter is compact and cost-effective design, provide 4-port 10/100Mbps auto negotiation RJ45 connector and 1-port 155Mbps full-duplex on the fiber port with SC interface. It’s widely used in security monitoring, wireless networking, optical fiber access and other application scenarios.

Features

  • 4-port 10/100M auto-negotiation RJ45 with auto-MDI/MDI-X
  • Fiber port: Single mode SC
  • Full duplex and Half duplex operation with IEEE 802.3x flow control
  • Support broadcast filtering, MAC address automatic learning and updating
  • Support QoS, VoIP packet transparent trans
  • 2048bytes maximum packet length
  • LED indicators for working status
  • Support hot plug and play
  • -20~60ºC working temperature
  • ESD, surge protection
  • IP30 enclosure
  • Wall-mounted Installation with optional kits
  • Low power consumption, lead-free process
  • CE/FCC/ROHS compliance

Specifications

Performance

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Data forwarding

Store and Forward

Switch capacity

1Gbps

Packet forwarding Rate

0.744Mpps

MAC address

2k

Buffer Space

512Kbit

Flow Control

support

Max. Packet Length

2048bytes

Interface

Copper Port

4x 10/100M Auto-negotiation, RJ45 auto-MDI/MDI-X
Cat5/Cat5e/Cat6, ≤100m

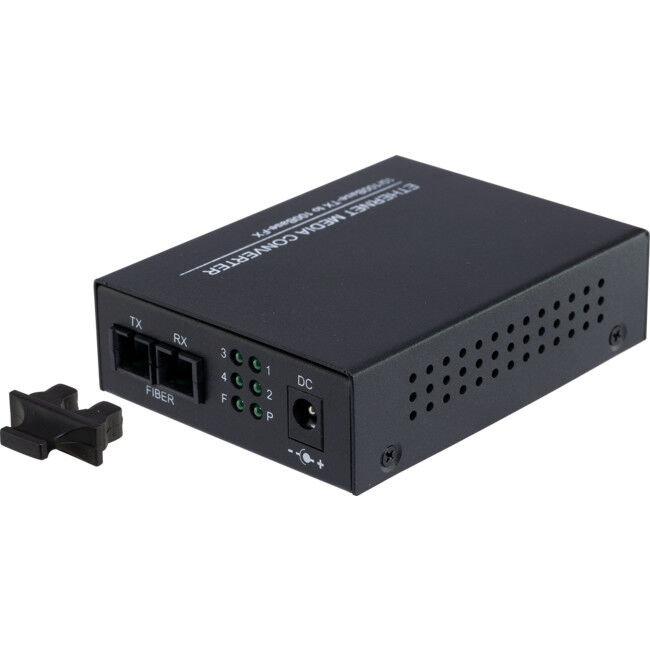

Fiber Port

155M SC Single Mode
OS1/OS2 ≤120km; OM1/OM2 ≤2km

LED indicators

Status

PWR, Fiber Link/Act, Copper Link/Act

Electrical characteristics

Input Voltage

5Vdc

Power Consumption

<2W

Power Port

DC socket, Φ2.5mm

Power Adaptor

100~240Vac 50/60Hz input, 5Vdc 1A output

Physical characteristics

Dimension

94x71x26mm





Enclosure

Metal IP30

Environment

Working Temperature

-20~60ºC

Storage Temperature

-40~85ºC

Relative Humidity

5%~95% (no condensation )

Certification

Safety

EN62368

EMC

EN55032, EN55035, FCC Part 15 Subpart B Class A
IEC61000-3-2, IEC 61000-3-3, IEC61000-4-2, IEC 61000-4-3,
IEC 61000-4-4, IEC 61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11

Reliability

IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32

ROHS

ROHS 2.0

Available Fibre Media Converters

Code Model Ports Speed Mode Dual Fibre Connector Distance
09051505 FMC100SM20KSC 1 100MB SM Y SC 20KM
09051507 FMC1GBSM20KSC 1 1GB SM Y SC 20KM

09051512 FMC1GBMM550MSC2 1 1GB MM Y SC 550M

09051550 4P100SM20KSC 4 100MB SM Y SC 20KM
09051552 4P1GBSM20KSC 4 1GB SM Y SC 20KM

09051522 FMC1GBSFP 1 1GB Requires SFP Module, can be SM/MM and LC/SC etc.







(4P100SM20KSC)

SKU 4P100SM20KSC
Model # 4P100SM20KSC
Barcode # 9328202034892
