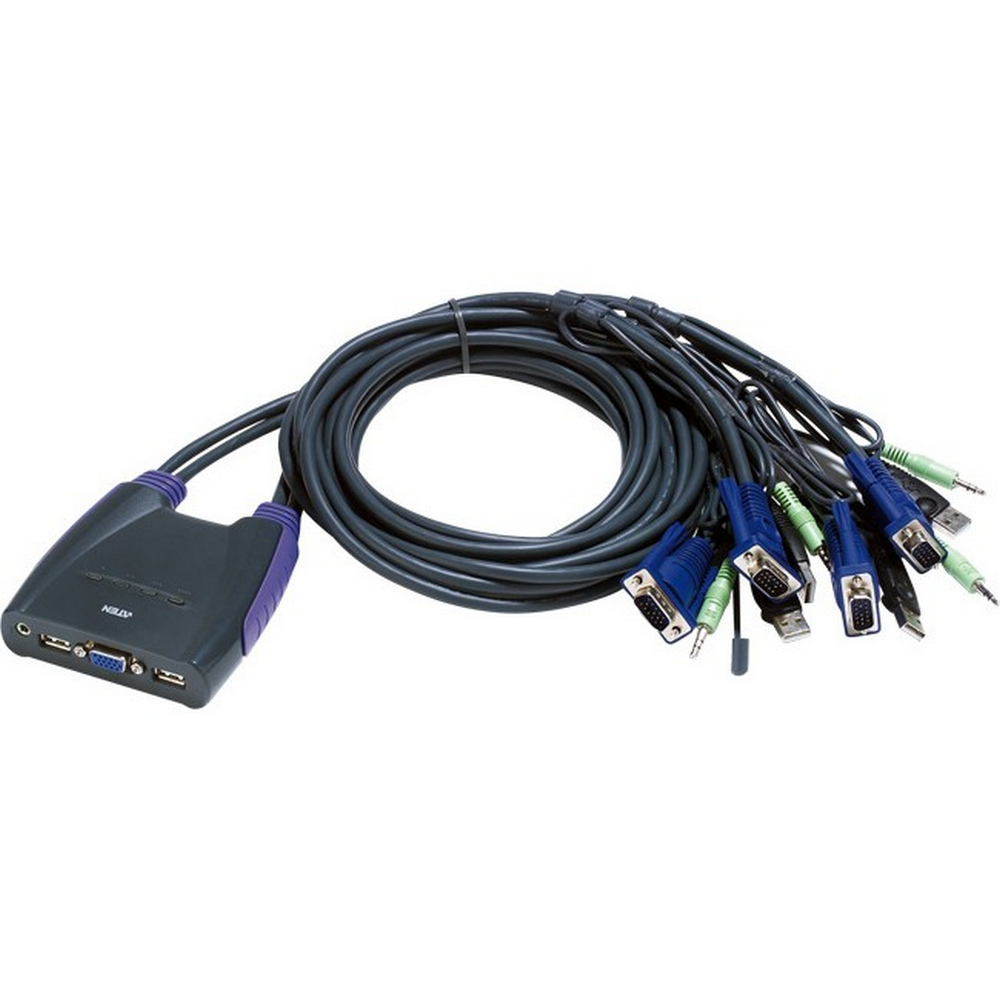

4-Port USB KVM Switch - ATEN
CS64U 4-Port USB KVM Switch has a handy design integrating with cables and built-in USB. It can control 4 servers via a single console.
FEATURES:
- One USB console controls four USB computers
- Built-in 0.9/1.2 m cables and bus-powered design
- Select OS via hotkey
- Multiplatform support – Windows, Linux, Mac and Sun
- USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
- Supports multimedia USB keyboards and multifunction mice
- Supports wireless keyboards and mice
- All-in-one design
- With speaker support
- Superior video quality – up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- ATEN USB ASIC inside
SPECIFICATIONS:
Computer Connections | 4 | ||
Computer Port Selection | Hotkey | ||
Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
Video | 1 x HDB-15 Female(Blue) | ||
Mouse | 1 x USB Type A Female (White) | ||
Speaker | 1 x Mini Stereo Jack Female (Green) | ||
KVM Ports | Keyboard/Mouse | 4 x USB Type A Male(Black) | |
Video | 4 x HDB-15 Male(Blue) | ||
Speaker | 4 x Mini Stereo Plug Male (Green) | ||
LED | Selected | 4 (Green) | |
Cable Length | Computers | 1.8m | |
Emulation | Keyboard/Mouse | USB | |
Video | 2048 x 1536, DDC2B | ||
Scan Interval | 1-99 seconds | ||
Environment | Operating Temp. | 0°~50°C | |
Storage Temp. | -20°~60°C | ||
Humidity | 0~80% RH, Non-condensing | ||
Physical Properties | Housing | Plastic | |
Weight | 0.80 kg | ||
Dimensions ( Lx W x H ) | 10.90 x 9.72 x 2.54 cm |
