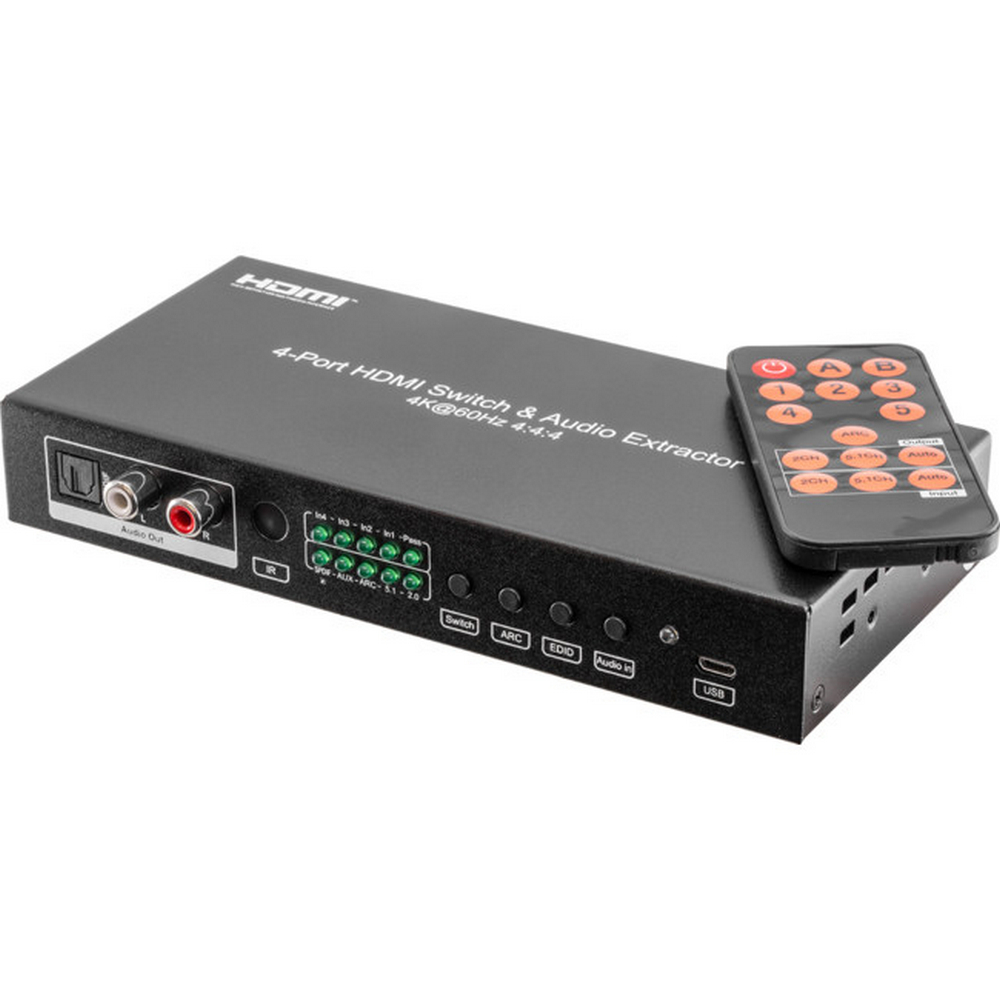

Easily switch between four different HDMI sources with the push of a button or using the included remote. With the HDMI4S18G you are getting the latest and greatest in what HDMI has to offer: 4K, 18GBPS bandwidth, HDMI version 2.0, HDR10, and ARC. To top it all off, the HDMI4S18G is also an excellent HDMI audio extractor, allowing you to output audioonly in either two-channel stereo or 5.1ch surround sound. With ARC, you can grab the audio signal from the TV and output it using the S/PDIF or RCA outputs.

Features

• Switch inputs via the front panel or remote control
• Extract stereo audio via the front RCA outputs or 5.1ch via the front S/PDIF toslink port
• Audio mixing support via 3.5mm auxiliary input and S/PDIF toslink input (bypass mode)
• Upto 18GBPS bandwidth
• HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
• Simultaneous audio output: Stereo and toslink
• 12 bits per channel (36 bit all channels) deep colour
• HDCP 2.2 (backwards compatible)
• HDR10 support
• Uncompressed LPCM 7.1 audio
• DTS-HD Master and Dolby True HD
• Audio Return Channel (ARC)

Connections

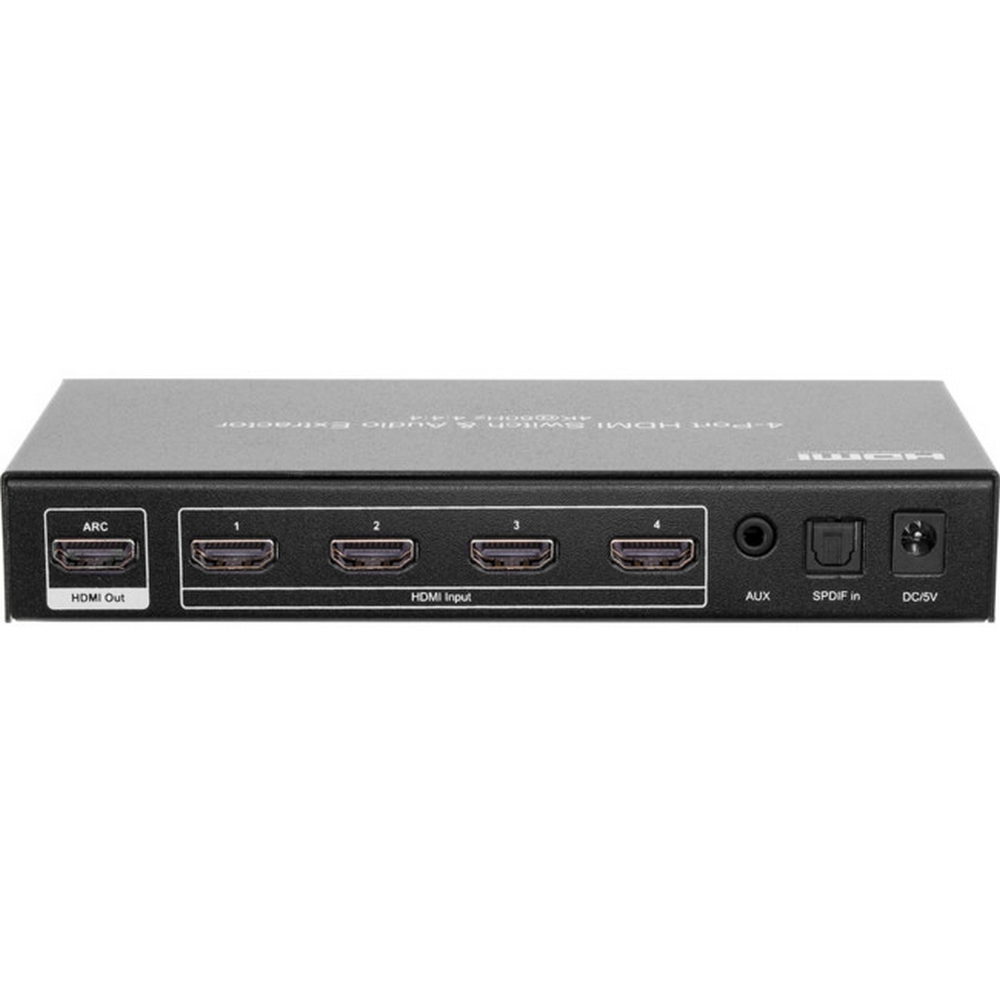

• Back Panel
  • 4x HDMI inputs
  • 1x (ARC) HDMI output
  • 3.5mm AUX input
  • S/PDIF optical input

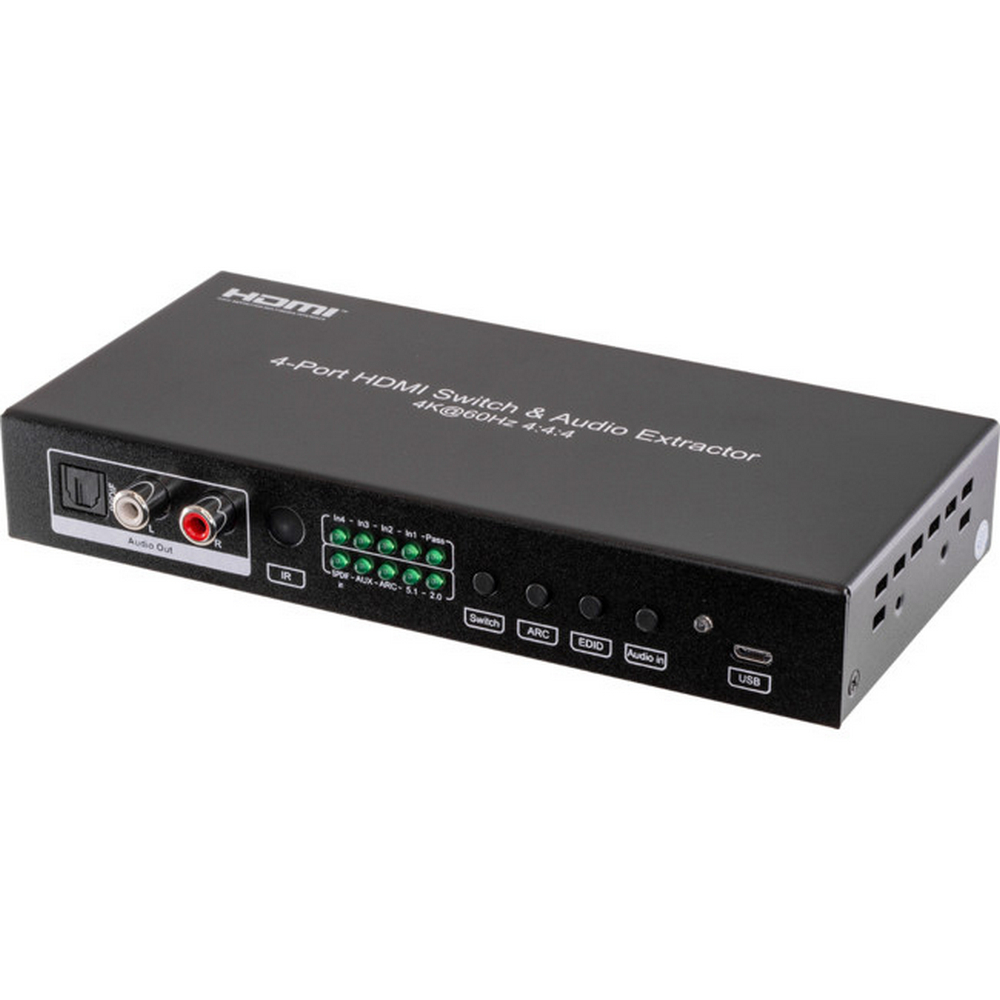

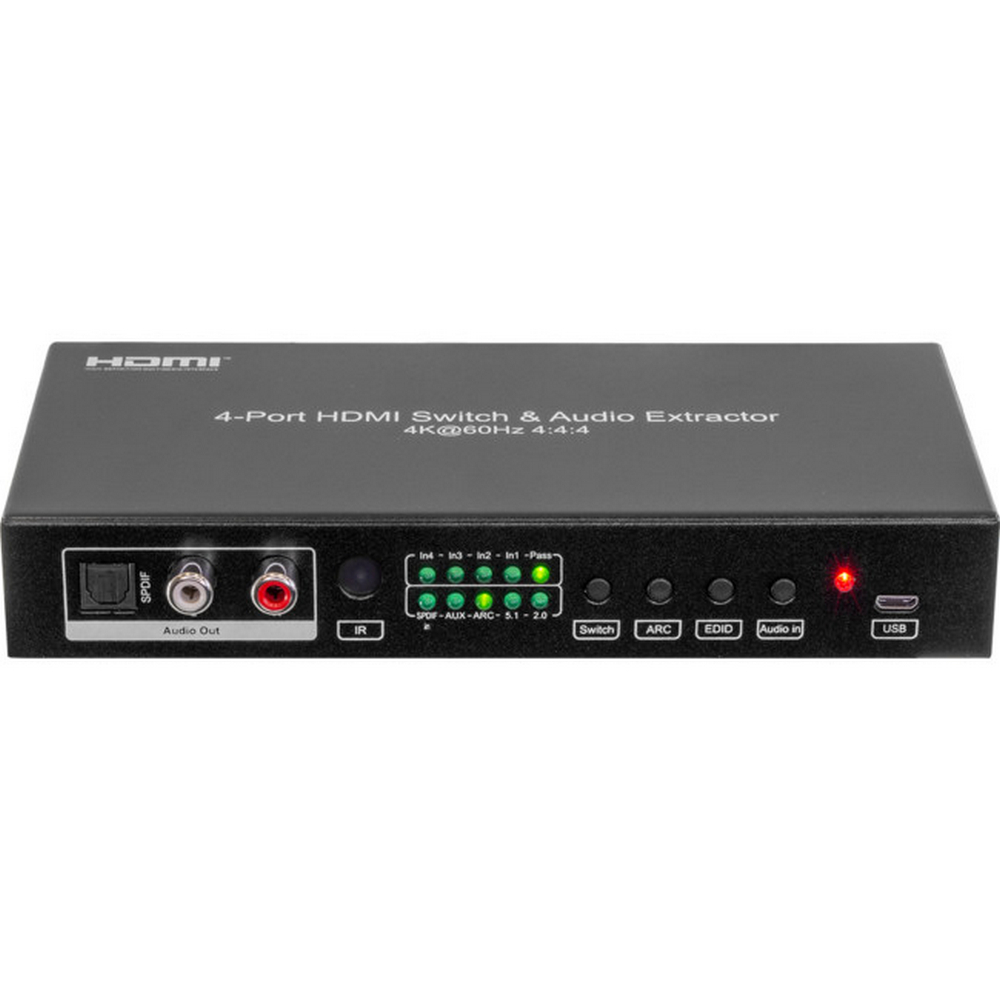

• Front Panel
  • S/PDIF optical output
  • 2x stereo RCA output
  • Micro USB input for firmware upgrades
  • LED indicators for:
    Input, Pass-through, S/PDIF in, AUX, ARC, 5.1 audio,2.0 audio
  • Push-buttons for:
    Source switching (1-4), ARC, EDID (2ch-5.1ch audio), Audio input (Aux, S/PDIF) switching
  • Power LED indicator
  • IR window

In the box

• HDMI4S18G Switcher

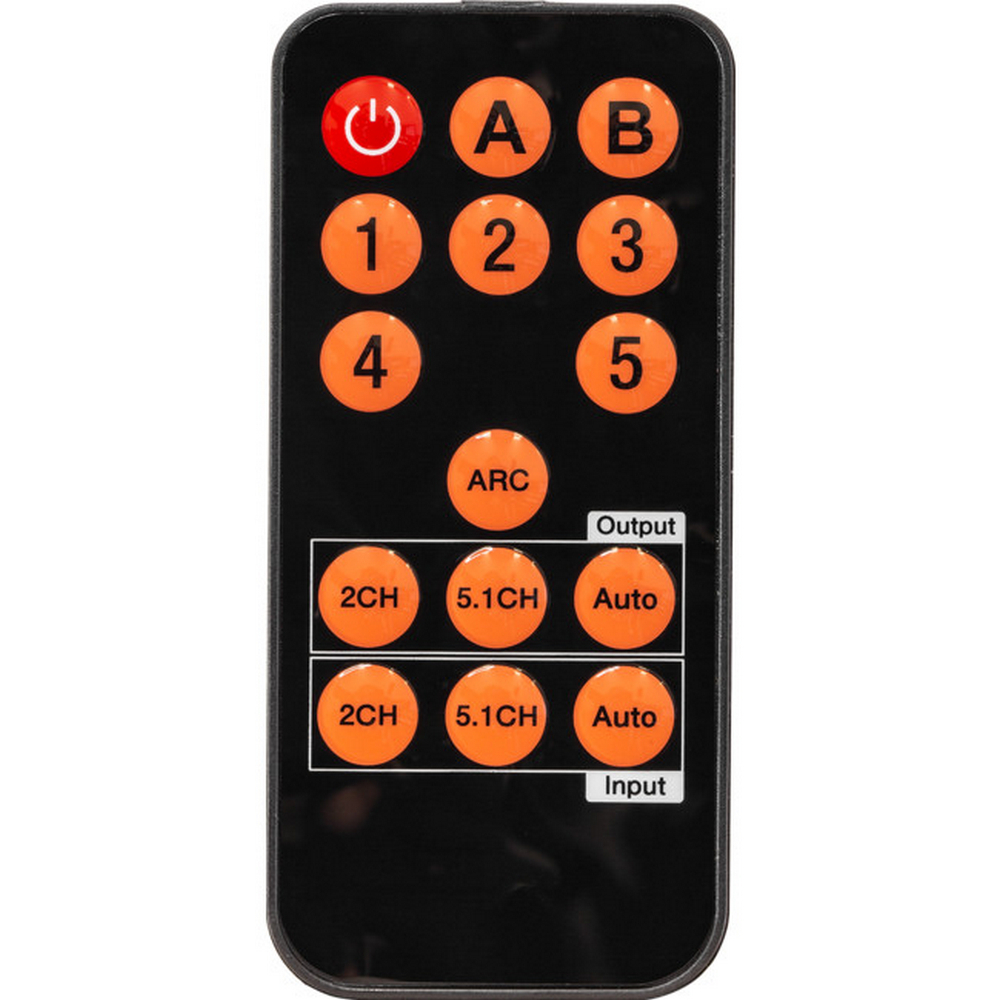

• Remote control
• 5V 1A power supply
• User manual
• Mounting ears (for rack mounting)
