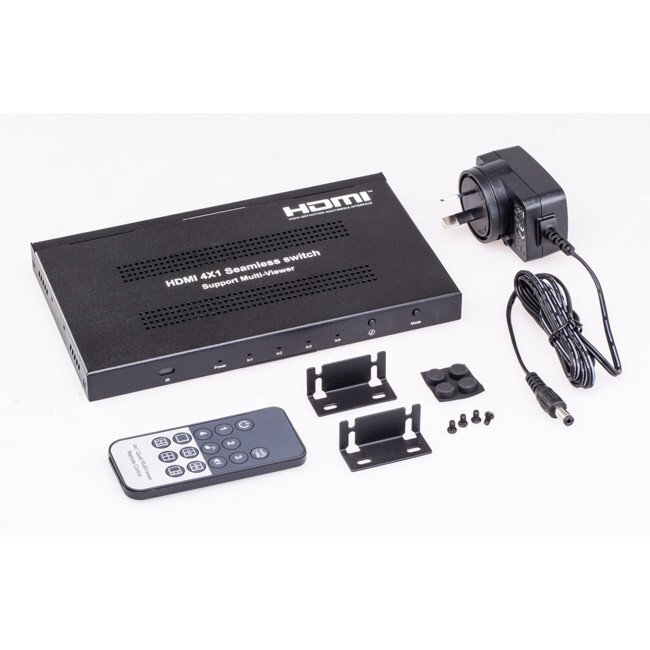

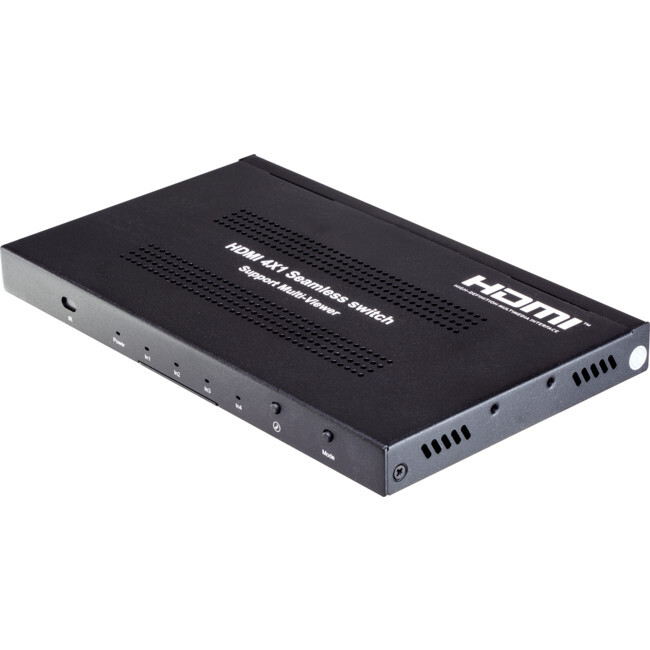

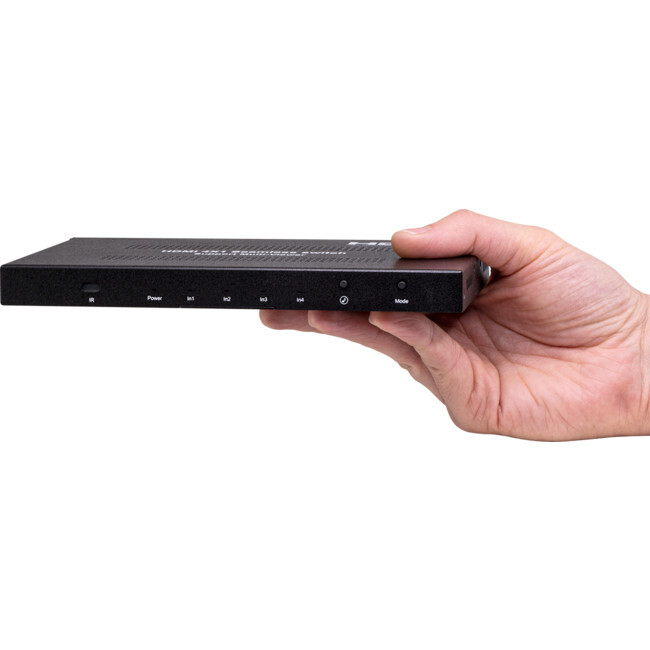

This HD41QMV2 quad multi-viewer with a seamless switchingfeature allows you simultaneously and synchronously monitor/view 4 different HD video sources on a single display. Easily switch from the 5 display modes via the IR remote control or the button at the front panel.

Features

  • Support 4 x HDMI input, 1 x HDMI output, up to 1080p 60hz resolution
  • View 4 HD video sources simultaneously on a single display
  • Seamless switching 4 HD video sources between 5 display modes
  • Support Audio Switching

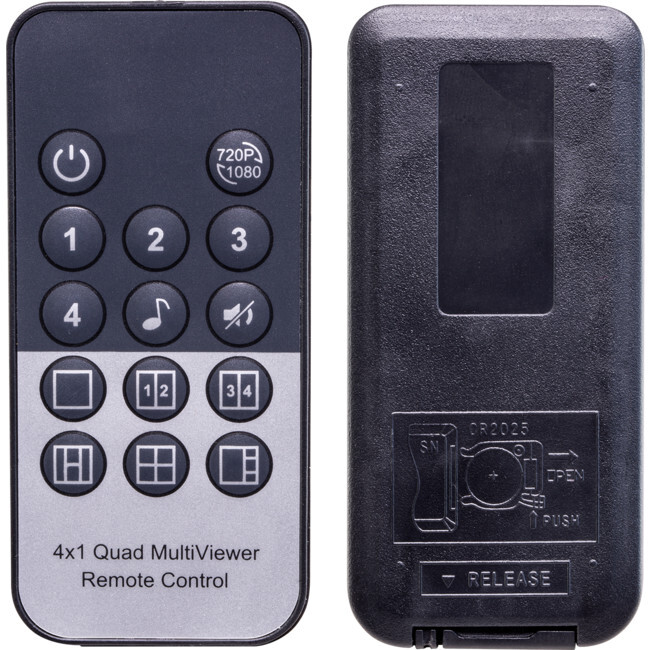

  • IR remote control and Panel Button Control
  • Support audio output format: PCM2.0
  • Easy to mount with the mounting ears supplied
  • SPECIFICATIONS

    Operating Temperature Range

    0to +40°C(32to +104°F)

    Operating Humidity Range

    5 to 90%RH (No Condensation)

    Bandwidth frequency

    4.95Gbps

    HDCP

    HDCP1.4

    Input ports

    4xHDMI (socket)

    Output ports

    1xHDMI outputs (socket)

    TV resolution

    50Hz

    576i; 576P; 720P; 1080i; 1080P

    60Hz/59.94Hz

    480i; 480P; 720P; 1080P

    30/29.97/24/25Hz

    1080P

    Dimensions(LxWxH)

    190.4x113x17mm

    Power consumption

    7W (MAX), 12V DC 1A, power supply included

    Transmission Distance

    Input 8m, Output 15m (Maximum) over standard HDMI cable/26AWG

    Net Weight 480g

    IR remote control battery

    CR2025 button cell

(HD41QMV2)

12 Months

SKU HD41QMV2
Model # SX-MVS01
Barcode # 9328202033604
Brand PRO2
Unit Of Measure Each
Assembled Width 1.000m
