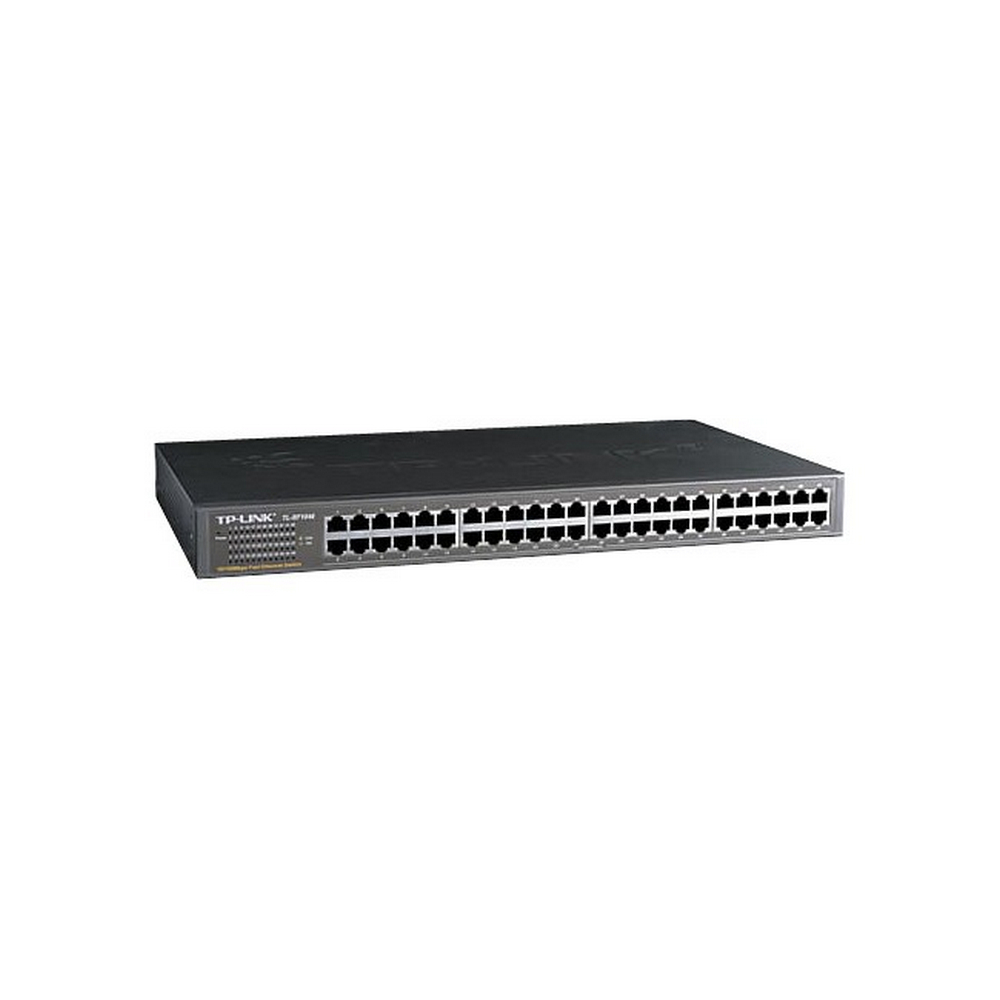

48-port Unmanaged Gigabit Rackmount Switch - TP-LINK

The TL-SG1048 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and workgroupnetworks.

FEATURES:

All ports support Full/half duplex transfer mode for10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
Supports Auto-MDI/MDIX function
Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
Store and forward Switching scheme
Standard 19-inch rack-mountable steel case.

SPECIFICATIONS:

Standards and Protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Basic Function	Wire-speed Performance
	MAC Address Auto-Learning andAuto-aging
	IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth	96Gbps
MAC Address Table	8k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port
Transmission Method	Store-and-Forward
Ports	48 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators	Power, Link/Act
Safety & Emission	FCC, CE
Dimensions (WDH)	17.314.21.7 in. (44036044mm)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Power	100-240VAC, 50/60Hz
