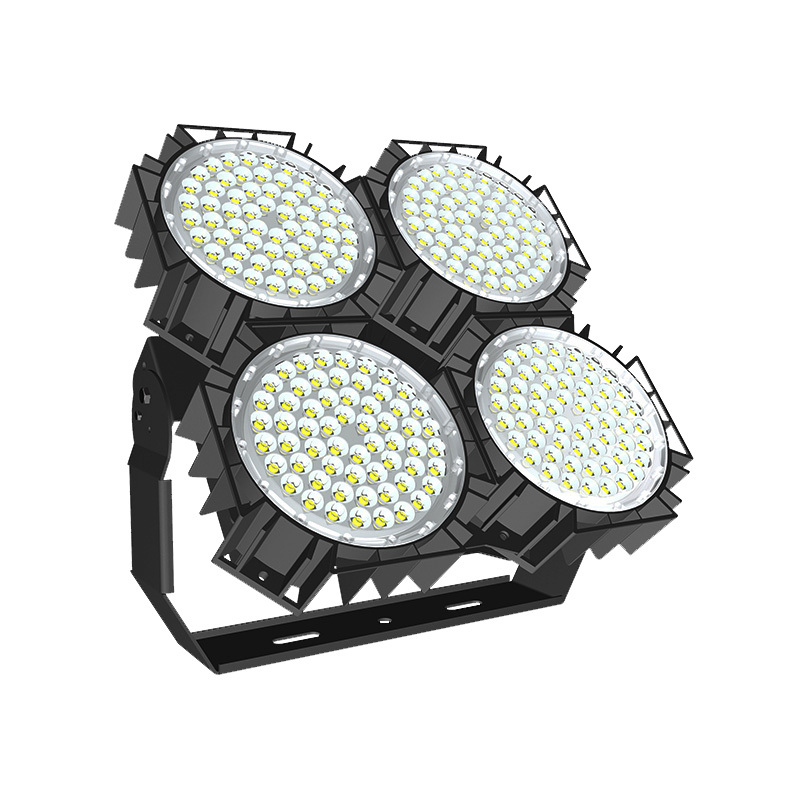

ENSA™ LFL-G2 Series LED flood lights are a flexible range of large scale lighting solutions. These high power lights feature dual bracket & light tilt adjustment for a smooth installation process, and are ideal in sports lighting applications and in large outdoor production and carpark facilities.

LFL-G2 Series flood lights are incredibly reliable with a rated lifespan up to 100,000 hours, and have versatile dimming options with both DALI and DMX control standards.

Product Features:

• 480W LED flood light with 60° x 100° beam angle
• 76,800lm light output @160lm/W
• 4 x light modules with adjustable tilt
• 180° adjustable mounting U-bracket
• 5000K cool white colour temperature
• IP67/IK10 weather & vandal resistant aluminium housing
• Long lifespan LED lighting: rated up to 100,000 hours

Specifications

Optical

• Light Output : 76800lm
• Luminous Efficacy : 160lm/W
• Colour Temperature : 5000K
• Colour Rendering Index : >80
• Beam Angle : 60° x 100°
• Light Decay : <15% at 40,000 hours
• Rated Lifespan : >100,000 hours

Electrical

• Power Consumption : 480W
• Input Voltage : 100~277VAC, 50/60Hz
• Power Factor : > 0.95
• Dimmable : Yes (DALI / DMX)
• Motion Activated : N/A

General

• Ingress Protection : IP67
• Plug / Socket / Base : Unterminated : Reflector / Diffuser
• Polycarbonate lens : Housing Adjustments : 90° light tilt, 180° U-bracket tilt
• NSW ESS Accepted : No
• Operating Environment : -20~55°C
• Dimensions : 460 x 460 x 75mm

Other

• Ambient Sensor : N/A

Cable Lead Length : 650mm

Vandal Protection : IK10
