HDIPPRO25 H.265 AV over IP Extender (with CMP System)

Transform your AV distribution with the HDIPPRO25 H.265 AV over IP Extender, a high-performance solution designed for modern video applications, including video walls, multi-viewer setups, and matrix switching. Operating seamlessly with the included CMP Integrated Management Platform, this extender delivers exceptional 4K@60Hz video with 4:4:4 chroma subsampling over a single Cat5e/6 cable – up to 120 meters. Ideal for digital signage, command centers, conference rooms, educational facilities, and any AV over IP installation requiring high-quality 4K video, low latency, and flexible control.

Please note that the HDIPPRO25 requires a Gigabit Network Switch for initial setup. This allows you to configure the transmitter and receiver via a PC or laptop running the CMP system, where you can assign device names and IDs, and adjust video, audio, and network settings.

Important:The Gigabit switch is only optional forone-to-oneapplications; it can be removed in this scenario. However, it remains mandatory forone-to-manyormany-to-manyconfigurations.

Key Features

• Superior Compression & Quality
  H.265/264 encoding ensures efficient bandwidth usage while supporting resolutions up to 4K@60Hz YUV 4:4:4 and audio sampling at 48kHz.

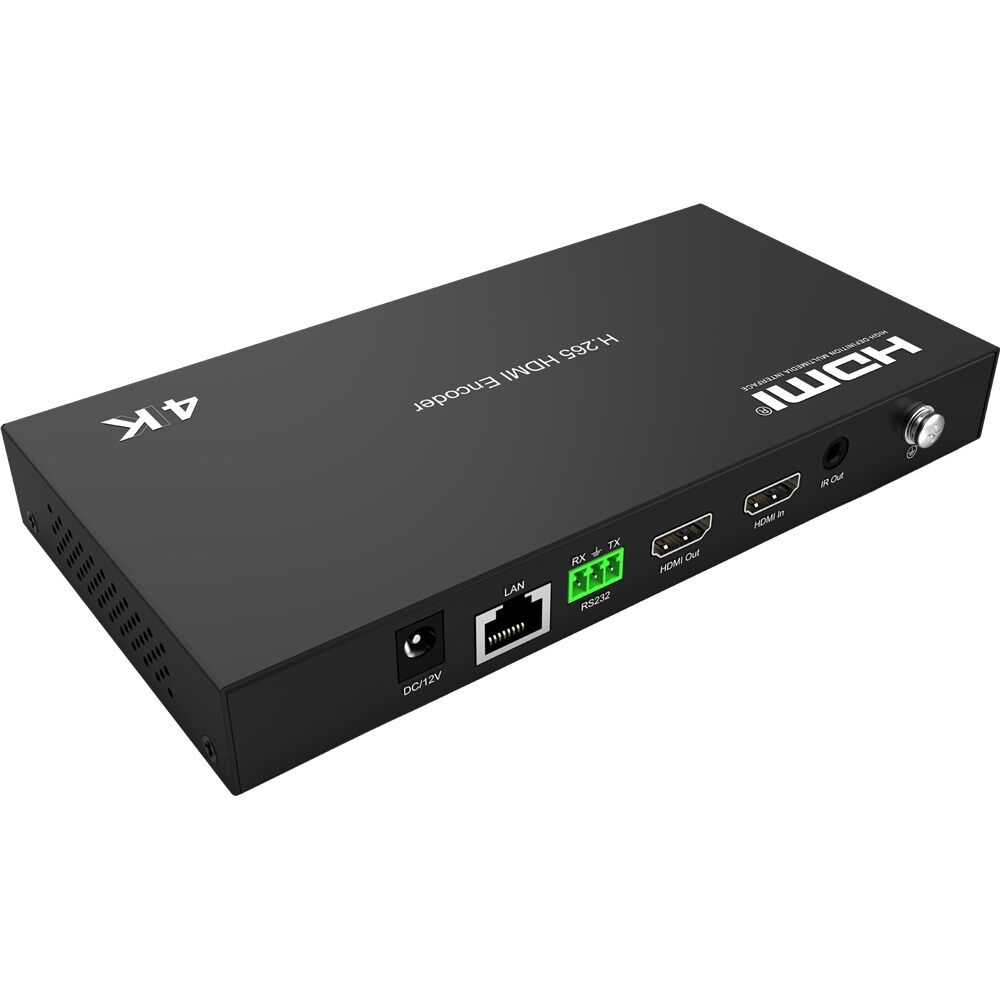

• HDMI Loopout on Transmitter
  The encoder features a dedicated HDMI loop output, allowing a local display to be connected at the source side without additional distribution hardware.
• Low Latency
  End-to-end latency of just 30–80 milliseconds for real-time responsiveness.
• Flexible Control Modes
  Supports one-to-one, one-to-many, and many-to-many distribution. Easily configure Matrix switching, Video Wall, and Multi-viewer layouts via the CMP platform.
• KVM & USB Extension
  Built-in USB 1.1 KVM extension allows keyboard/mouse control at the receiver side.
• Bidirectional RS232 & IR Pass-through
  Full RS232 pass-through (2400–115200 baud) and 38kHz IR control – perfect for remote device management. (Note: Not supported in multi-viewer mode.)
• Analog Audio Support

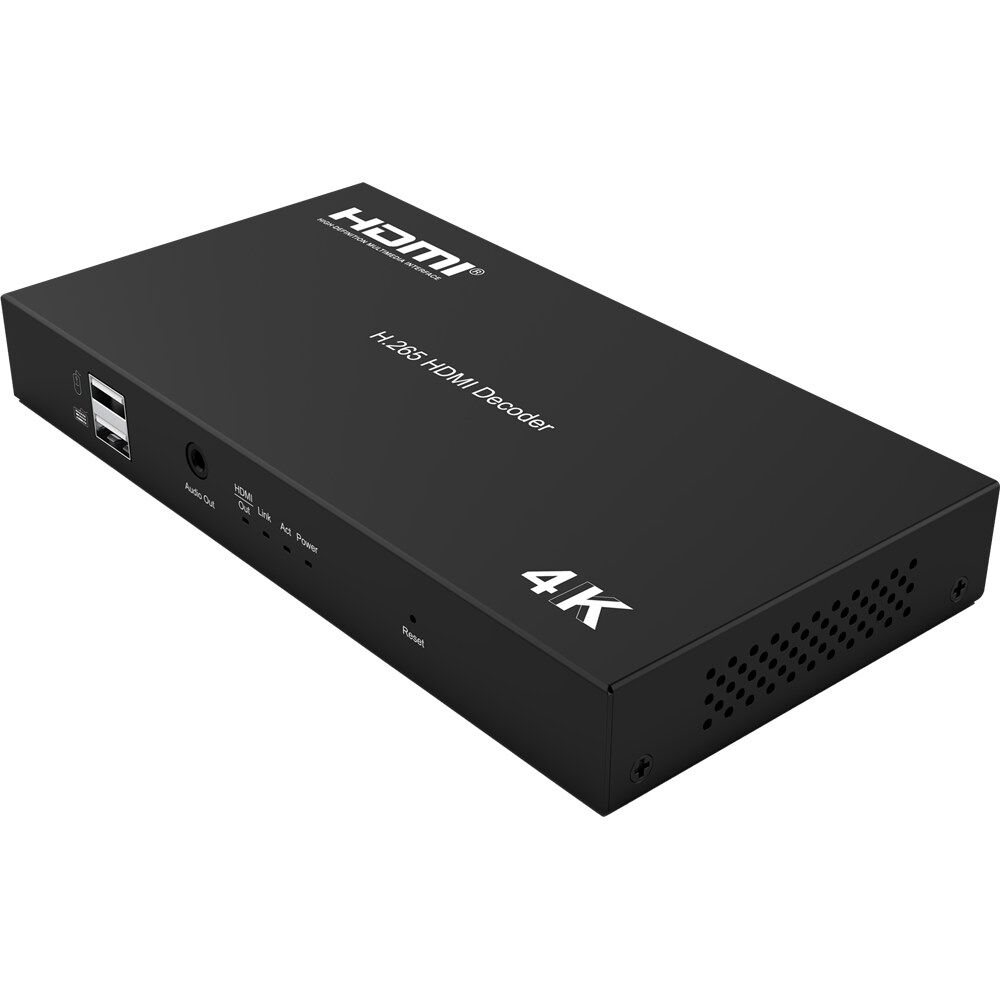

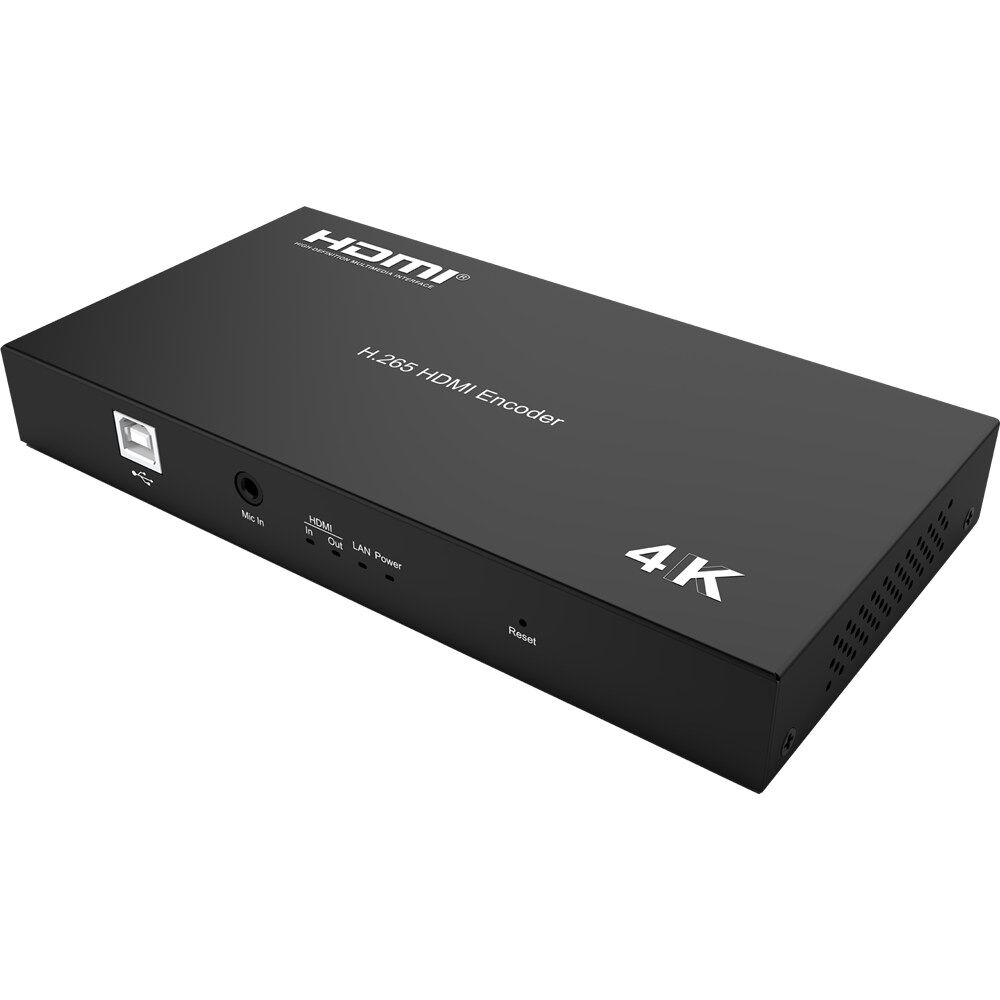

  Separate microphone/analog audio input on the encoder and analog audio output on the decoder.
• Streaming Protocols
  Supports RTSP / RTMP – view streams directly in VLC or other players.
  Main stream: rtsp://ip:8554/ch0/0
  Sub stream: rtsp://ip:8554/ch0/1
• Network Friendly
  Requires IGMP-managed switch. Default IP: 192.168.5.50 and supports DHCP
• Easy Management
  The CMP System (Windows software) provides live preview, device configuration (IP, video/audio parameters, EDID, OSD), user management (admin/operator roles), and batch firmware upgrades.

Specifications

What is in the box?

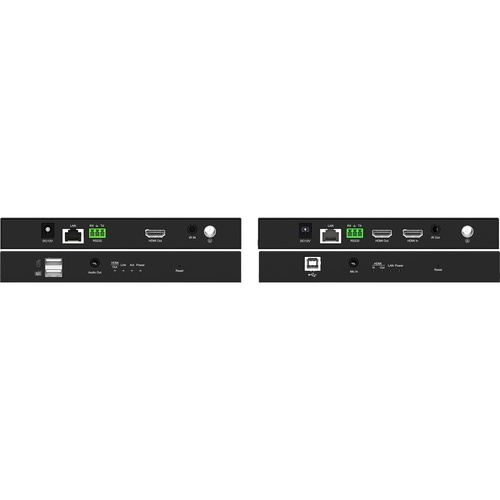

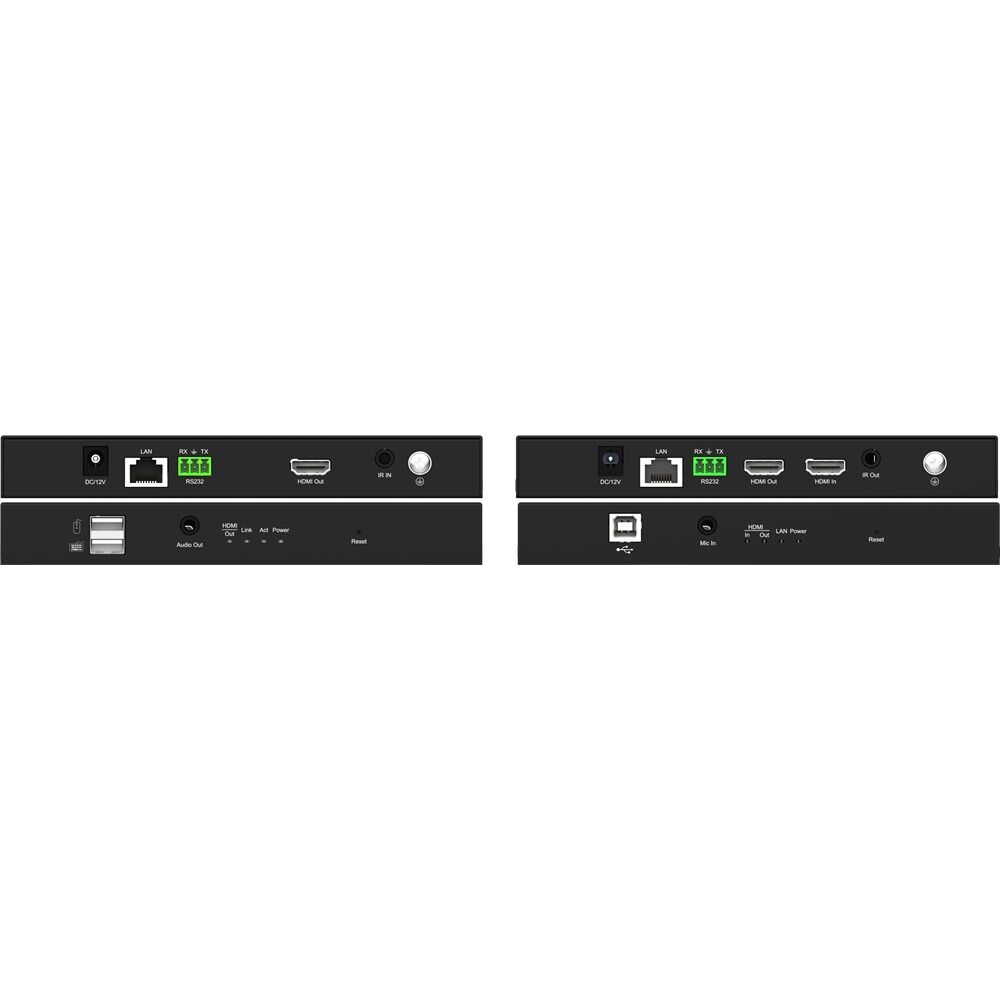

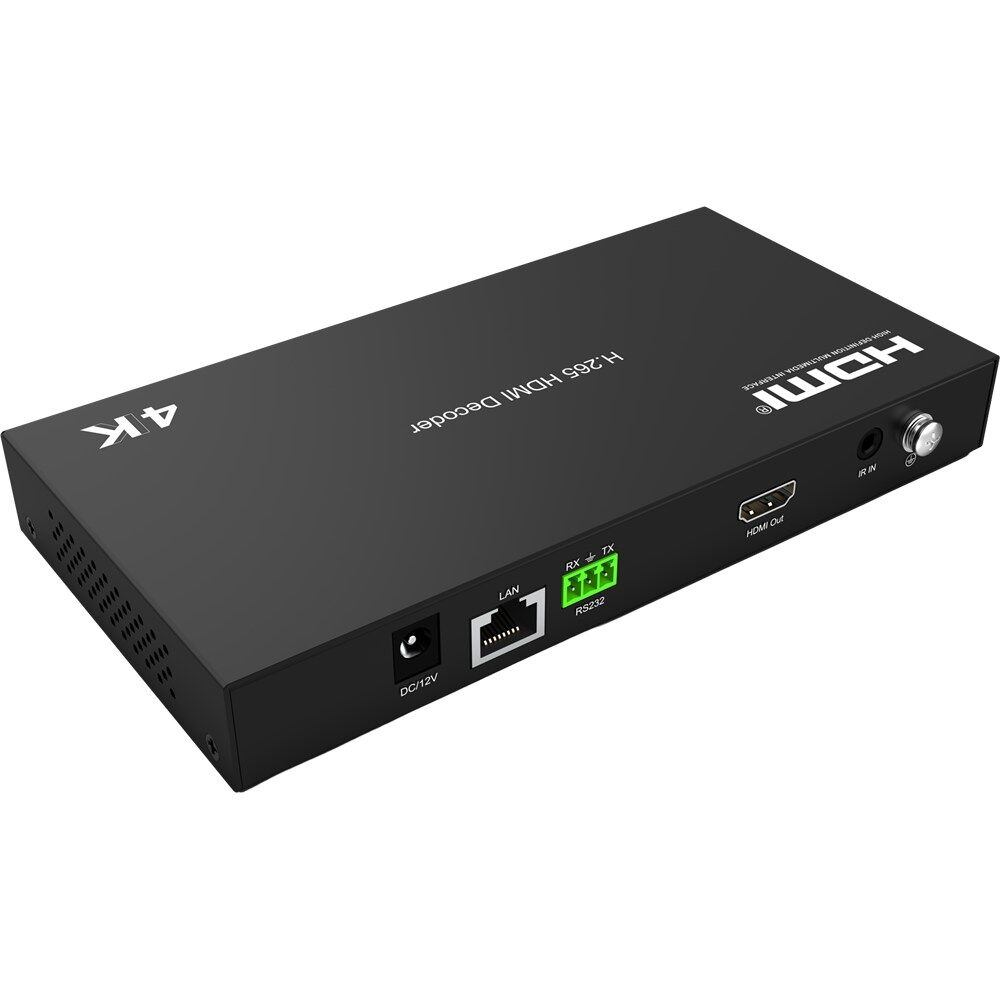

• HDIPPRO25 transmitter and receiver
• DC12V 1A power supply x 2pcs
• IR TX and RX cable x 1pc
• Phoenix terminal x 2pcs
• Mounting ears x 4pcs
• USB cable x 1pc
• CD DISC x 1pc (user manual and CMP system)
