4MP OUTDOOR DUAL-LENS PAN TILT NETWORK CAMERA

Overview

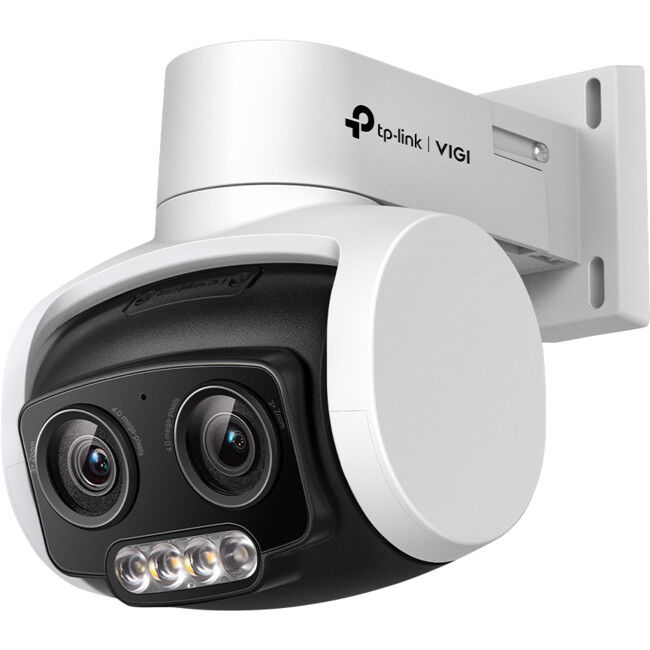

TP-Link C540V

VIGI 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan/Tilt Network Camera with Two-Way Audio, Smart Detection, 3YW

4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
24h Full-Colour: Captures 24 hours of full-colour details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4 × attached supplemental lights.
3 × Zoom: Allows for closer viewing of objects in expansive areas.
Instant Zoom: Zooming is instant without suffering from delays and image dragging.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects or enters/exits certain region.
Powerful Pan Tilt: Customised patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Specifications

CAMERA	Image Sensor	1/3″ Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000s
	Slow Shutter	Yes
	Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
	Day/Night Mechanism	IR Cut Filter
	Day/Night Switch	Unified / Scheduled / Auto
	Zoom	3x Mixed Zoom
LENS	Focal Length	4-12mm (Mixed Zoom)
	Aperture	F1.6
	FOV	Diagonal FOV: 100° Horizontal FOV: 84° Vertical FOV: 46°
	Lens Mount	M12*P 0.5
	DORI Distance	4mm: Detect: 80m (262ft) Observe: 33m (109ft) Recognise: 16m (52ft) Identify: 8m (26ft) 8mm: Detect: 150m (493ft) Observe: 63m (205ft) Recognise: 30m (98ft) Identify: 15m (49ft)
PTZ	Pan/Tilt Range	Pan: 0° to 332° Tilt: 0° to 120°
	Pan/Tilt Speed	Pan Speed: Configurable from 8° to 44°/s Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s Preset Speed: 44°/s
	Manual Control Speed	Configurable from 8° to 35°/s
	Presets	300
	Patrol Scan	8 patrols, up to 8 presets for each patrol
	Power-Off Memory	Yes; Auto restore to previous PTZ and lens status after power failure
	Park Action	Yes; Preset: Patrol Scan
	3D Positioning	Yes
Angle Adjustment (Manual)	Range	Pan: 0° to 332° Tilt: 0° to 120°
ILLUMINATOR	IR LED	Quantity: 1 Range: 30m Wavelength: 850nm
	White LED	Quantity: 3 Range: 30m
	Illuminator ON/OFF Control	Auto / Scheduled / Always On / Always Off
VIDEO	Max. Resolution	2560 × 1440
	Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
	Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240
	Bit Rate Control	CBR, VBR
	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
	H.264 Type	Main Profile/High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile
	H.265+	Main Stream Supported
	Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image	Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
	Image Enhancement	BLC / 3D DNR / HLC / Smart IR
	Wide Dynamic Range	DWDR
	SNR	≥52dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	Two-Way Audio
	Audio Input	Yes
	Audio Output	Yes
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
	ONVIF	Yes
	API	Open Network Video Interface (Profile S)
	Simultaneous Live View	3 Main Streams & 3 Sub-Streams
	Client	VIGI App, VIGI Security Manager, Web UI
	Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
	Cloud	Yes
	Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
	Basic Event	Motion Detection, Video Tampering Detection, Exception (Illegal Login)
	Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
	Linkage Method	N/A
	Output Notification	Message Push
INTERFACES	Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE
	Alarm	N/A
	Reset Button	Yes
	Power	DC Power Port
	On-Board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 256GB
	Built-in Microphone	Yes; Records Anything Going on within a 15ft Radius of the Camera
	Built-In Speaker	Yes
	Audio	N/A
GENERAL	Operating Temperature	−30°C – 60°C
	Storage Temperature	−40°C – 60°C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
	Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
	Material	Plastic
	Net Weight	0.43kg
	Gross Weight	0.66kg
	Power Supply	12V DC ± 5%, Max. 14W, 5.5mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 16W
	Protection	IP66
	Product Dimensions (L×W×H)	107mm × 136mm × 139mm
	Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
