4MP OUTDOOR PAN TILT 4G NETWORK CAMERA

Overview

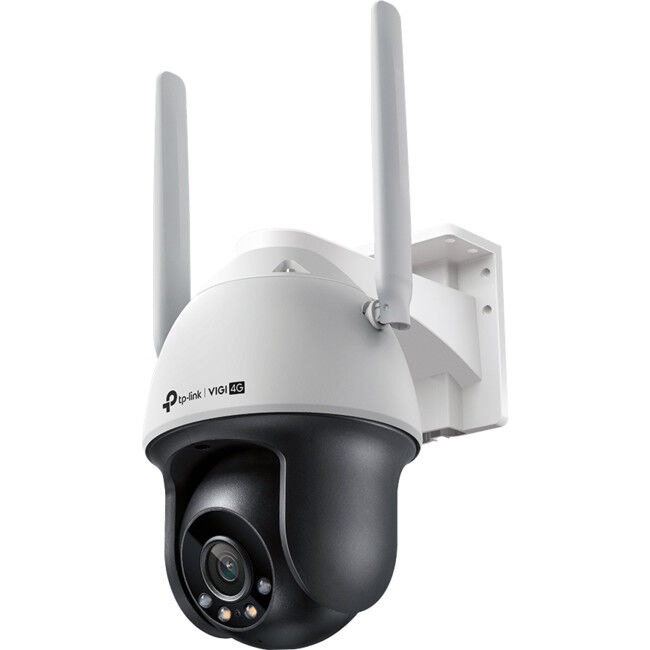

VIGI 4MP Outdoor Full-Colour 4G Pan Tilt Network Camera

4MP Super-High Definition: The camera comes with 4MP – more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Experience clear and vibrant 24-hour monitoring, even in total darkness.
4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where theinternetis not available.
360° Monitoring: Cover every corner and eliminate blind spots.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.
Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
Onboard Storage: Support on-board storage up to 256GB (SD card slot).

Specifications

CAMERA	Image Sensor	1/3.06″ Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000s
	Slow Shutter	Yes
	Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
	Day/Night Mechanism	IR Cut Filter
	Day/Night Switch	Unified / Scheduled / Auto
LENS	Type	Fixed Focal Lens
	Focal Length	4mm
	Aperture	F1.6
	FOV	Horizontal FOV: 80° Vertical FOV: 43° Diagonal FOV: 94°
	Lens Mount	M12*0.5
	DORI Distance	Detect: 80m (262ft) Observe: 33m (109ft) Recognise: 16m (52ft) Identify: 8m (26ft)
PTZ	Pan/Tilt Range	Pan: 0° to 348° Tilt: 0° to 120°
	Pan/Tilt Speed	Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
	Manual Control Speed	Configurable from 8° to 35°/s
	Presets	300
	Patrol Scan	8 patrols, up to 8 presets for each patrol
	Power-Off Memory	Yes; Auto restore to previous PT and lens status after power failure
	Park Action	Yes; Preset: Patrol Scan
	3D Positioning	Yes
	Angle Adjustment (Manual)	Range: Pan: 0° to 348° Tilt: 0° to 120°
ILLUMINATOR	IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
	White LED	Quantity: 2 Range: 30m
	Illuminator On/Off Control	Auto/Scheduled/Always On/Always Off
VIDEO	Max. Resolution	2560 × 1440
	Main Stream	Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
	Sub-Stream	Resolution: 640x480, 352x288, 320x240 Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
	Bit Rate Control	CBR, VBR
	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
	H.264 Type	Main Profile/High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile
	H.265+	Main Stream Supported
	Video Bit Rate	Main Stream: 256 Kbps to 3 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image	Image Settings	Mirror Brightness Contrast Saturation Sharpness Exposure, WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software Rotation (90°/270°)
	Image Enhancement	BLC / 3D DNR / HLC / Smart IR
	Wide Dynamic Range	DWDR
	SNR	≥52dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	Two-Way Audio
	Audio Input	Yes
	Audio Output	Yes
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
	ONVIF	Yes
	API	ONVIF
	Simultaneous Live View	2 Main Streams & 2 Sub-Streams
	Client	VIGI App, VIGI Security Manager, Web UI
	Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
	Cloud	Yes
	Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G	Standard	LTE-TDD/LTE-FDD/WCDMA
	SIM Type	Nano SIM
	Category	4
	Frequency	LTE-FDD: B 1/3/5/7/8/20/28 LTE-TDD: B 38/40/41 WCDMA: B 1/5/8
ALARM AND EVENT MANAGEMENT	Smart Event	Human & Vehicle Classification Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection People Detection Vehicle Detection
	Basic Event	Motion Detection Video Tampering Detection Exception (Illegal Login)
	Alarm Linkage	Memory Card Video Recording Message Push Audible Warning White Light Flashing
	Linkage Method	N/A
	Output Notification	Message Push
INTERFACES	Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port
	Alarm	N/A
	Reset Button	Yes
	Power	DC Power Port
	On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB

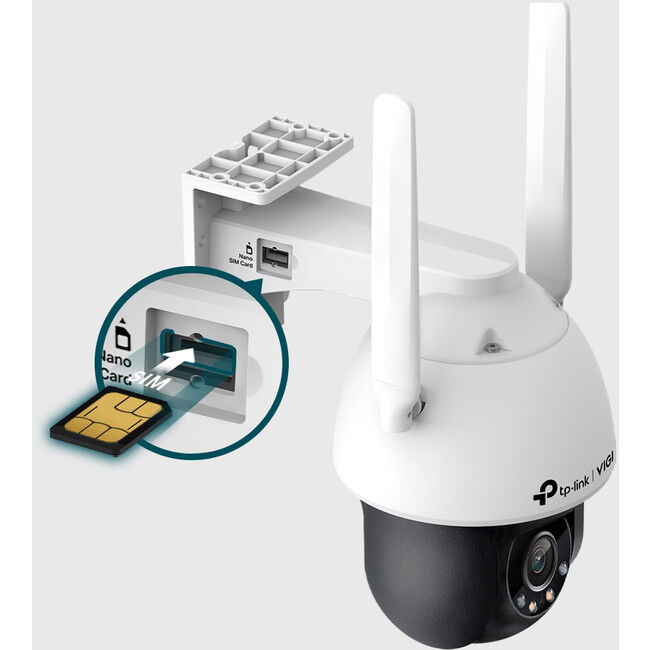

	Built-in Nano-SIM Card Slot	Yes
	Built-in Microphone	Yes; Records Anything Going on within a 15ft Radius of the Camera
	Built-in Speaker	Yes
	Audio	N/A
GENERAL	Operating Temperature	−30°C – 60°C
	Storage Temperature	−40°C – 60°C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
	Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories Power Adapter
	Material	Plastic
	Net Weight	0.69kg
	Gross Weight	1.16kg
	Power Supply	12V DC/1A, 5.5mm Coaxial Power Plug
	Antenna	Quantity: 2 Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna Gain: Ant1: 0.84dBi @ 690~960MHz, 2.85dBi @ 1710~2690MHz Ant2: 0.74dBi @ 690~960MHz, 3.06dBi @ 1710~2690MHz
	Protection	IP66
	Product Dimensions (L×W×H)	120mm × 182mm × 201mm (excluding antennas)
	Certifications	CE, RCM, BSMI, RoHS, NCC
