4MP OUTDOOR PAN TILT NETWORK CAMERA

Overview

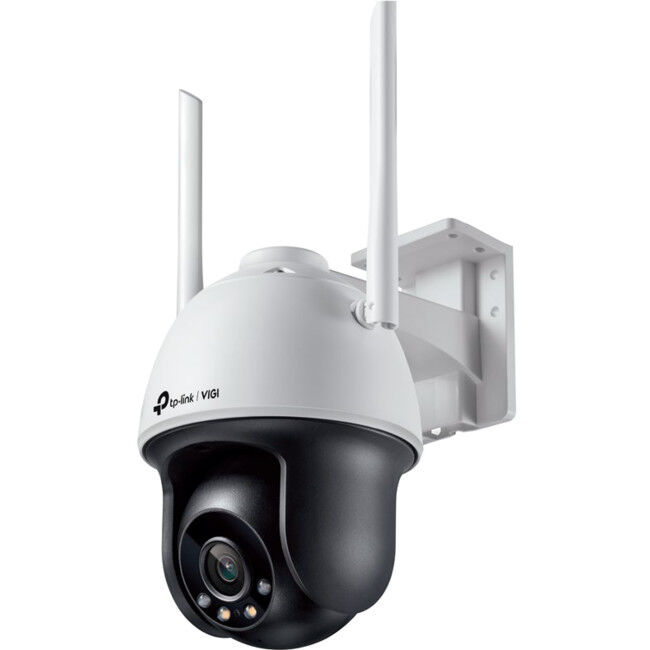

TP-Link VIGI 4MP C540-W (4mm) Outdoor Full-Colour Wi-Fi Pan Tilt

Network Camera, 4mm Lens, Smart Detection, 3YW

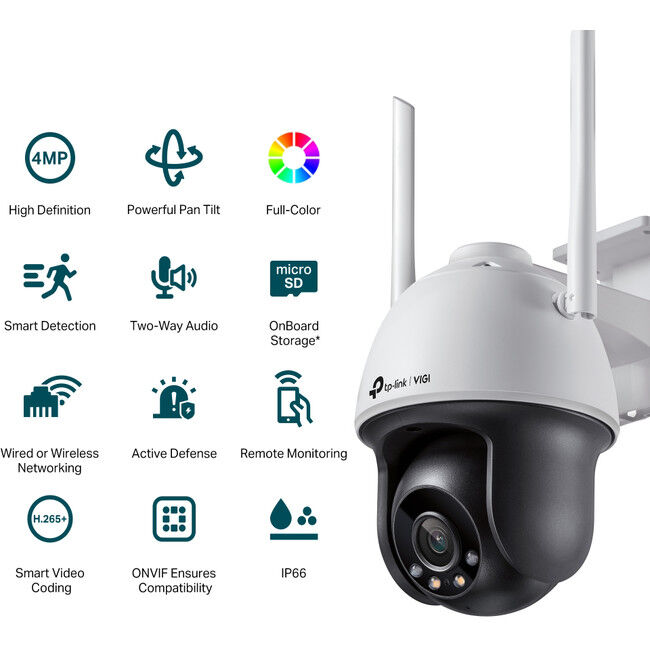

4MP High Definition: The camera comes with 4MP – more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.

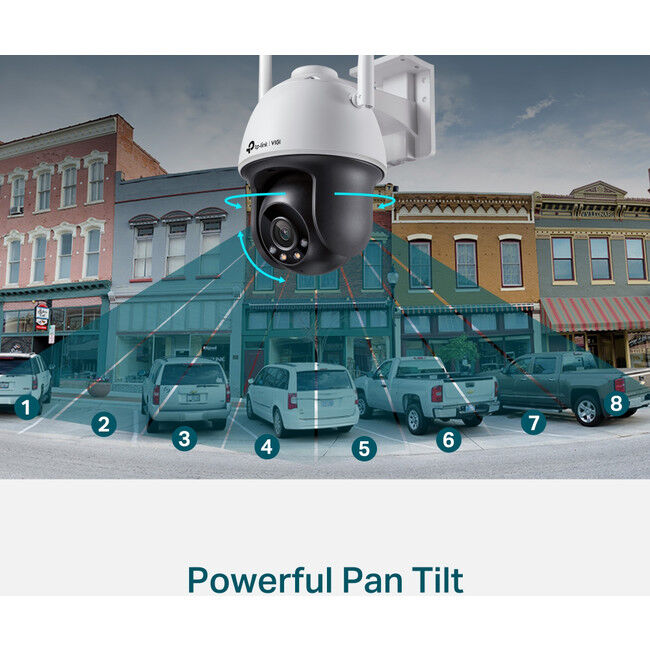

Powerful Pan Tilt: Customised patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
VIGI App: Manage your security from the palm of your hand with the VIGI app.

Specifications

CAMERA	Image Sensor	1/3″ Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000s
	Slow Shutter	Yes
	Aperture	4mm: F1.6
	Lens	Fixed focal lens (4mm)
	Lens Mount	M12
	Minimum Illumination	0 lux with IR/white Light
	Day/Night Mechanism	IR Cut Filter
	Day/Night Switch	Unified / Scheduled / Auto
	Digital Noise Reduction	3D DNR
	WDR	DWDR
	Weatherproof Rating	IP66
	IR Working Distance	30m
	Pan/Tilt Range	Pan: 0° to 350° Tilt: 0° to 120°
	Illumination Distance	30m
	Viewing Angle (4mm)	Horizontal FOV: 79° Vertical FOV: 43° Diagonal FOV: 93°
	Digital Zoom	Yes
LENS	Type	Fixed Focal Lens
	Focal Length	4mm
	Aperture	F1.6
	FOV	4mm: Horizontal FOV: 79° Vertical FOV: 43° Diagonal FOV: 93°
	Lens Mount	M12
	DORI Distance	4 mm: Detect: 80m (262ft) Observe: 33m (109ft) Recognise: 16m (52ft) Identify: 8m (26ft)
PTZ	Pan/Tilt Range	Pan: 0° to 350° Tilt: 0° to 120°
	Pan/Tilt Speed	Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
	Manual Control Speed	Configurable from 8° to 35°/s
	Presets	300
	Patrol Scan	8 patrols, up to 8 presets for each patrol
	Power-Off Memory	Yes: Auto restore to previous PTZ and lens status after power failure
	Park Action	Yes: Preset; Patrol Scan
	3D Positioning	Yes
	Angle Adjustment (Manual)	Range Pan: 0° to 348° Tilt: 0° to 120°
ILLUMINATOR	IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
	White LED	Quantity: 2 Range: 30m
	Illuminator On/Off Control	Auto/Scheduled/Always On/Always Off
VIDEO	Max. Resolution	2560 × 1440
	Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080
	Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240
	Bit Rate Control	CBR, VBR
	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
	H.264 Type	Main Profile/High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile
	H.265+	Main Stream Supported
	Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
IMAGE	Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
	Image Enhancement	BLC/3D DNR/HLC/Smart IR
	Wide Dynamic Range	DWDR
	SNR	≥52dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	Two-Way Audio
	Audio Input	Yes
	Audio Output	Yes
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
	Wireless Rate	11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
	Wireless Security	WPA/WPA2-PSK
	ONVIF	Yes
	API	ONVIF
	Simultaneous Live View	3 × Main Streams & 3 × Sub-Streams
	Client	VIGI App, VIGI Security Manager, Web UI
	Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
	Cloud	Yes
	Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
	Frequency	2.4 GHz
WIRELESS	Standards	IEEE 802.11b/g/n
	Wi-Fi Channels	UN: 1-13 US: 1-11
	Frequency	2.4 GHz
	Wireless Transmit Power	High
	Auto Wireless Channel	N/A
	Wireless Statistics	N/A
	Throughput Monitoring	N/A
	Radio Bandwidth	Auto: N/A 20M: Yes 40M: Yes
	Wireless Rate	11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
	Wireless Security	WPA/WPA2-PSK
	Wireless Mode	AP, AP Client
ALARM AND EVENT MANAGEMENT	Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
	Basic Event	Motion Detection, Video Tampering Detection, Exception (Illegal Login)
	Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
	Linkage Method	N/A
	Output Notification	Message Push
INTERFACES	Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port
	Audio Input	Built-in Microphone
	Audio Output	Built-in Speaker
	Alarm	N/A
	Reset Button	Yes
	Power	DC Power Port
	Button	Reset Button
	On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
	Built-in Microphone	Yes; Records anything going on within a 15ft radius of the camera
	Built-in Speaker	Yes
	Audio	N/A
GENERAL	Operating Temperature	−30°C ~ 60°C
	Storage Temperature	−40°C ~ 60°C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
	Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories
	Dimensions (H×W×D)	120mm × 172mm × 198mm
	Material	Plastic
	General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
	Net Weight	0.62 Kg
	Gross Weight	1.21 Kg
	Power Consumption	12V DC: Max 15.5W
	Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
	Antenna	Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi
	Protection	IP66
	Product Dimensions (L×W×H)	120mm × 172mm × 198mm (excluding antennas)
	Certifications	CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
VIDEO/IMAGE	Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
	Frame Rate & Resolutions	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240
	Video Streaming	Main Stream Sub-Stream
	Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
	Image Enhancement	BLC/3D DNR/Prevent Over-exposure to Infrared Light
	Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET	Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
	Basic Event	Motion Detection, Camera Tampering Detection, Exception (illegal login)
	Linkage Method	Trigger Notification: ONVIF, HTTPS
	Region of Interest	1 Region
