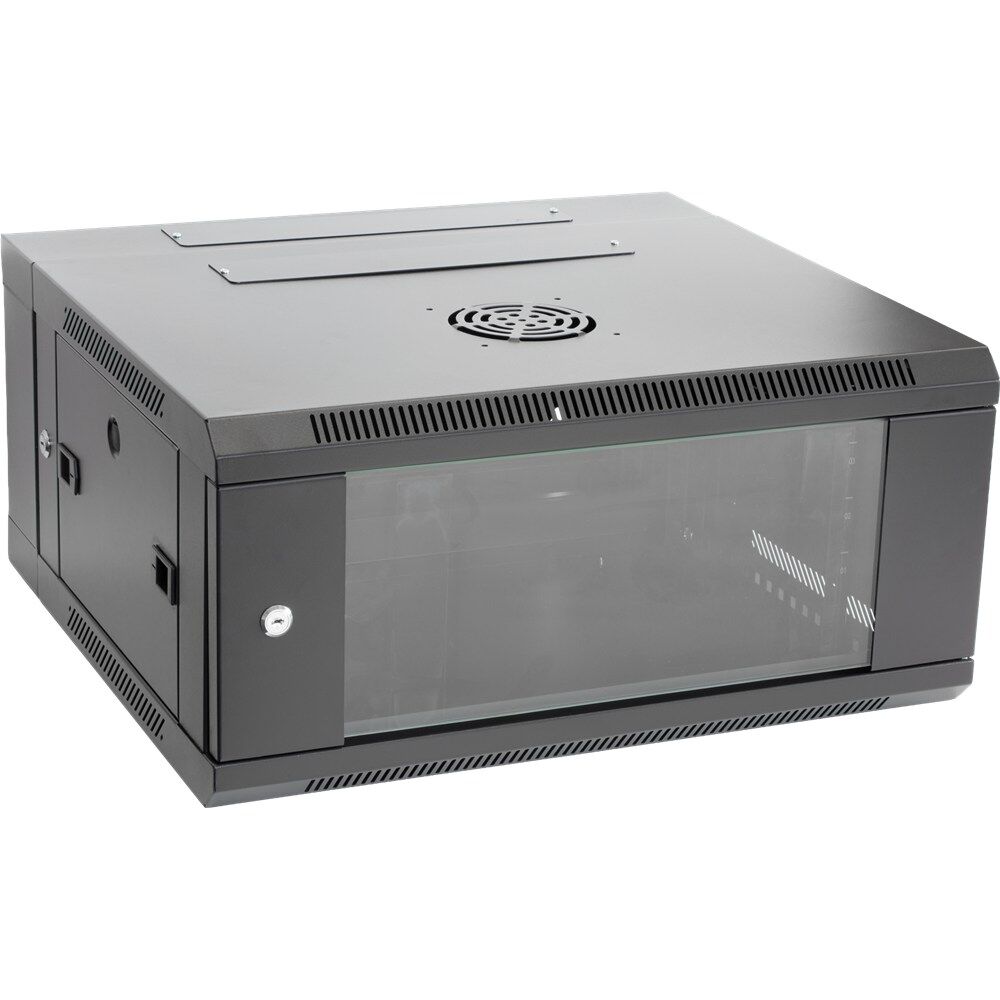

4RU HINGED WALL MOUNT CABINET – 600mm × 550mm

The hinged swing-open design provides easy access to the back of the cabinet, making equipment installation and maintenance simple and convenient.

Features

  • Pre-assembled 4RU wall mount cabinet: 280mm height
  • Swing frame
  • Welded frame and stable structure
  • Standing or wall mounting installation
  • Easy wall mounting bracket installation
  • 19″ EIA-compliant standard rack frame
  • Quick removable side panels
  • Top/Bottom cable entry knock-out plates
  • Tempered glass front door with over 180 degrees of turning angle
  • Easy fan installation with the fan cutout on the top cover
  • Removable hinges to change the front door swing direction
  • L-shaped mounting profile, easy to adjust on the mounting rail
  • A wide range of optional accessories allows you to adjust the cabinet to your own needs
  • Supplied with 10 sets of screws & nuts
  • Supplied with 2 door keys

Specifications


MaterialQuality SPCC cold-rolled steel
Thickness1.0mm
Width600mm
Depth550mm
Height280mm (4RU)
Rail Width19″ EIA-compliant
Loading Capacity60kg
Protection ClassIP20
Surface FinishingDegreasing, Pickling, Phosphating, Powder-coated
Fan Size Suits120mm × 120mm
Tempered Glass Thickness5.0mm
ComplianceANS/EIA RS-310-D, IEC297-2, DIN41494, Part 1, DIN41491, Part 7, GB/T3047.2-92

(WMC4U55H)

SKU WMC4U55H
Model # WMC4U55H
Barcode # 9328202036902
Brand PRO2
