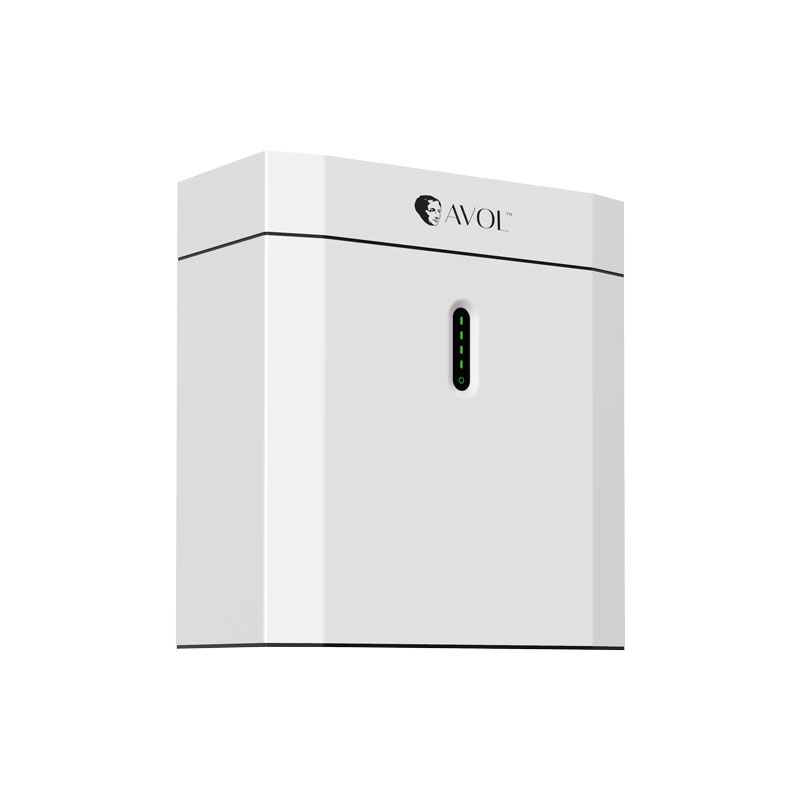

The Genius Series: 5.1kWh LFP Battery Packs are modular designed to store and provide energy during the day and night when used with a PV system. Lithium Iron Phosphate Batteries (LiFePO4 / LFP) used in the Genius Battery pack features longer life span, zero maintenance, ultra-safe, lightweight, improved charge and discharge efficiency.

Features:

  • Modular, robust design delivers excellent levels of safety and performance
  • Cells produced by the world’s industry leading partner Contemporary Amperex Technology Co., Limited
  • Up to 4 modules in a single PV system
  • Up to 20kWh of energy storage
  • 10,000 cycles at 90% depth of discharge
  • IP65 weather rated, 5-year warranty

Specifications

General

  • Battery type - Lithium Iron Phosphate (LiFePO4 / LFP)
  • Weight - 54kg
  • Dimension - 540 x 490 x 240mm
  • IP Protection - IP65
  • Warranty - 5 Years (Product) / 10 Years (Performance)
  • Country of Manufacturer - China

Electrical

  • Energy Capacity - 5.12kWh
  • Usable Capacity - 4.6kWh
  • Depth of Discharge (DoD) - 90%
  • Nominal Voltage - 51.2V
  • DC Circuit Breaker - 125A
  • Operating Voltage Range - 44.8-56.5V
  • Internal Resistance - <20mO
  • Cycle Life - 10,000 cycle

Operation

  • Maximum Charge / Discharge Current - 50N80A
  • Rated DC power - 4096W
  • Max. Charge / Discharge Power - 2825W / 4096W
  • Operating Temperature Range - 0 to 50°C charging / -10 to 50°C discharging
  • Humidity - 0~95% (No condensation)

BMS

  • Modules Connection - Max.4
  • Capacity - 100-400Ah
  • Power Consumption - <2W
  • Communication - CAN & RS485
  • Monitoring Parameters - System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
  • Warranty (Years) - 5

(AVOL-GENIUS-BA5)

SKU AVOL-GENIUS-BA5
Model # AVOL-GENIUS-BA5
Brand AVOL
