Features

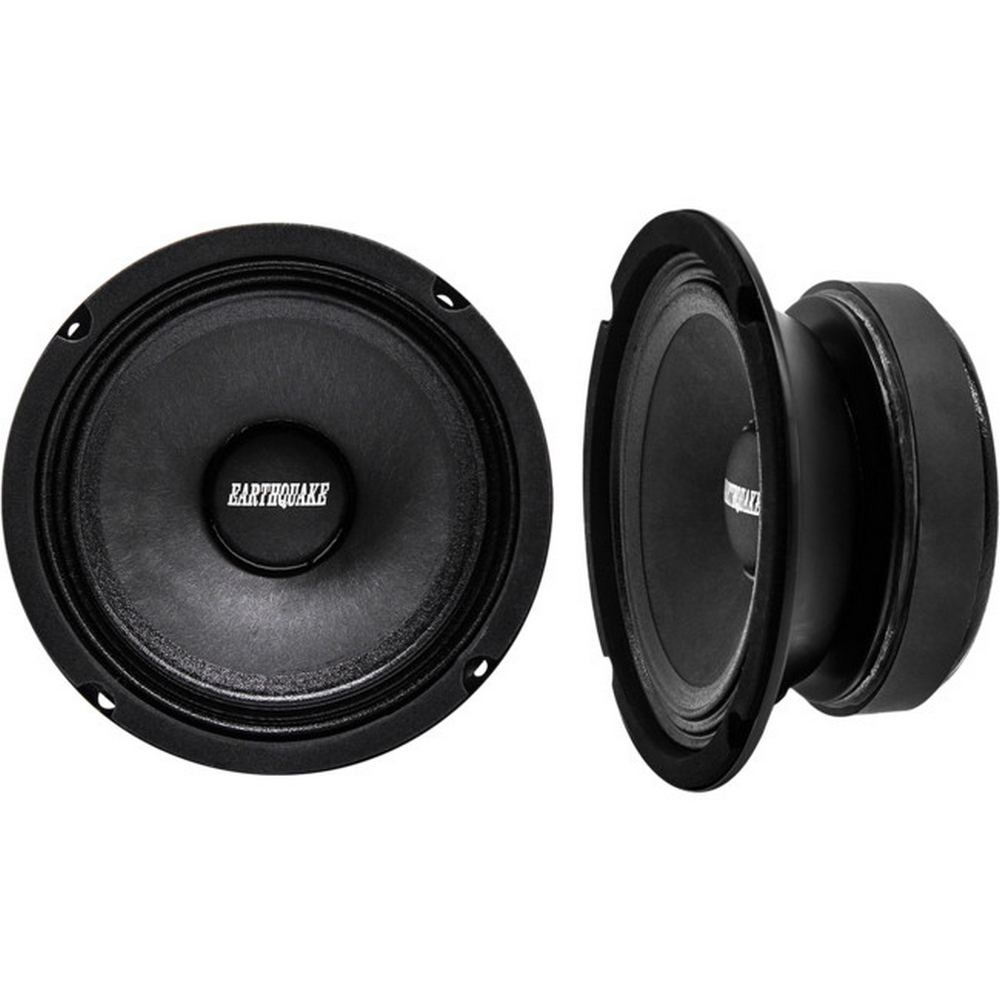

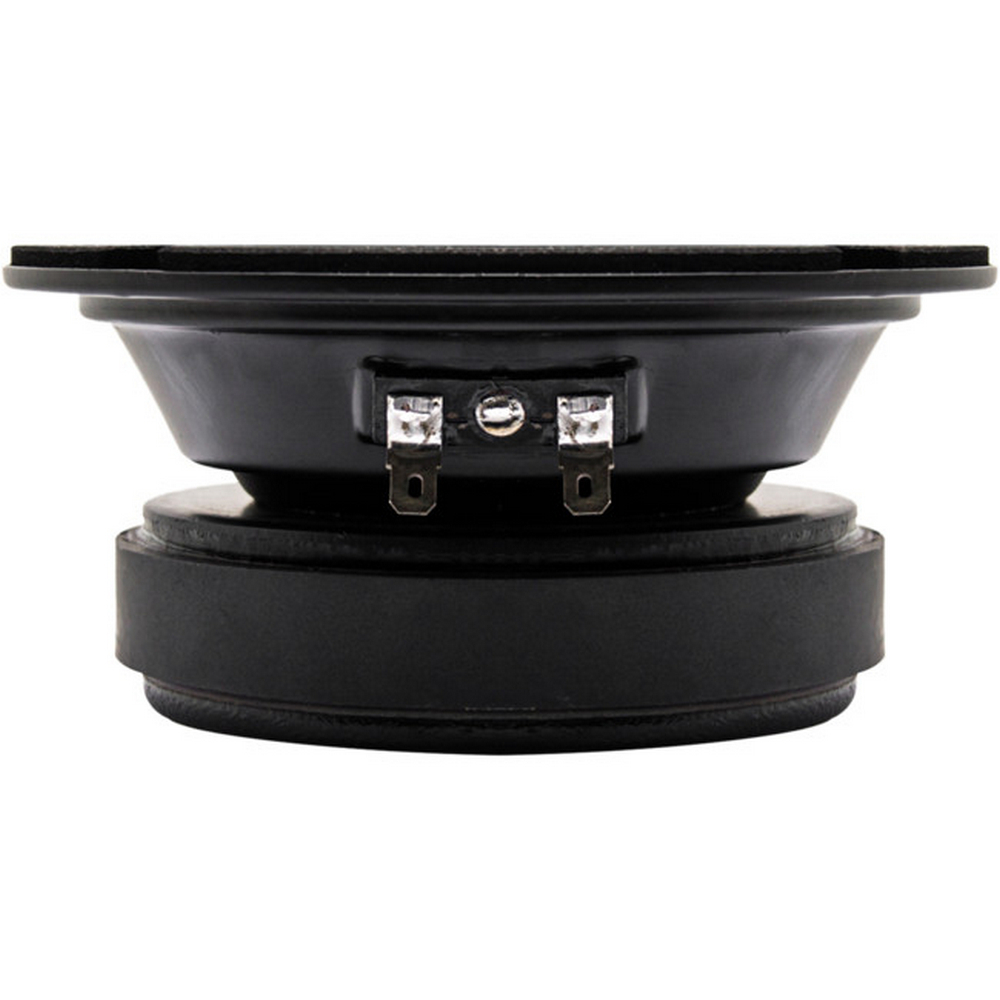

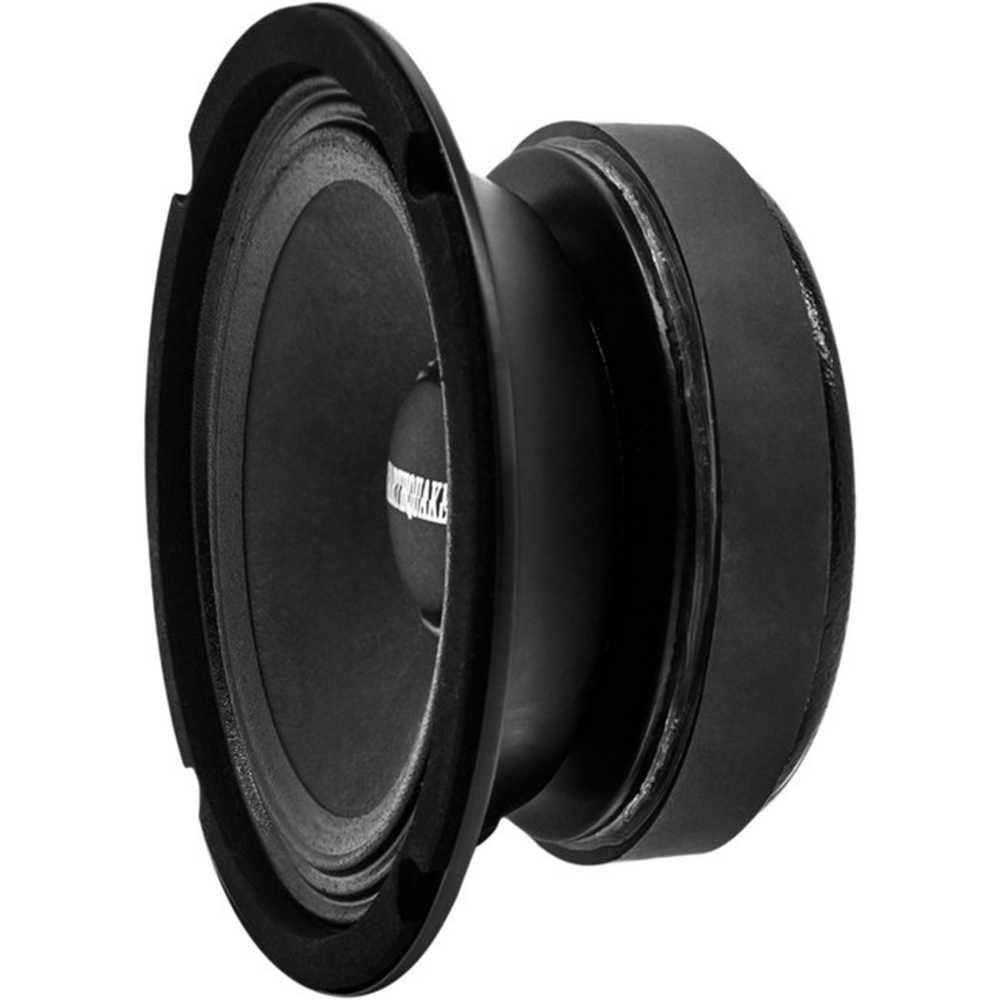

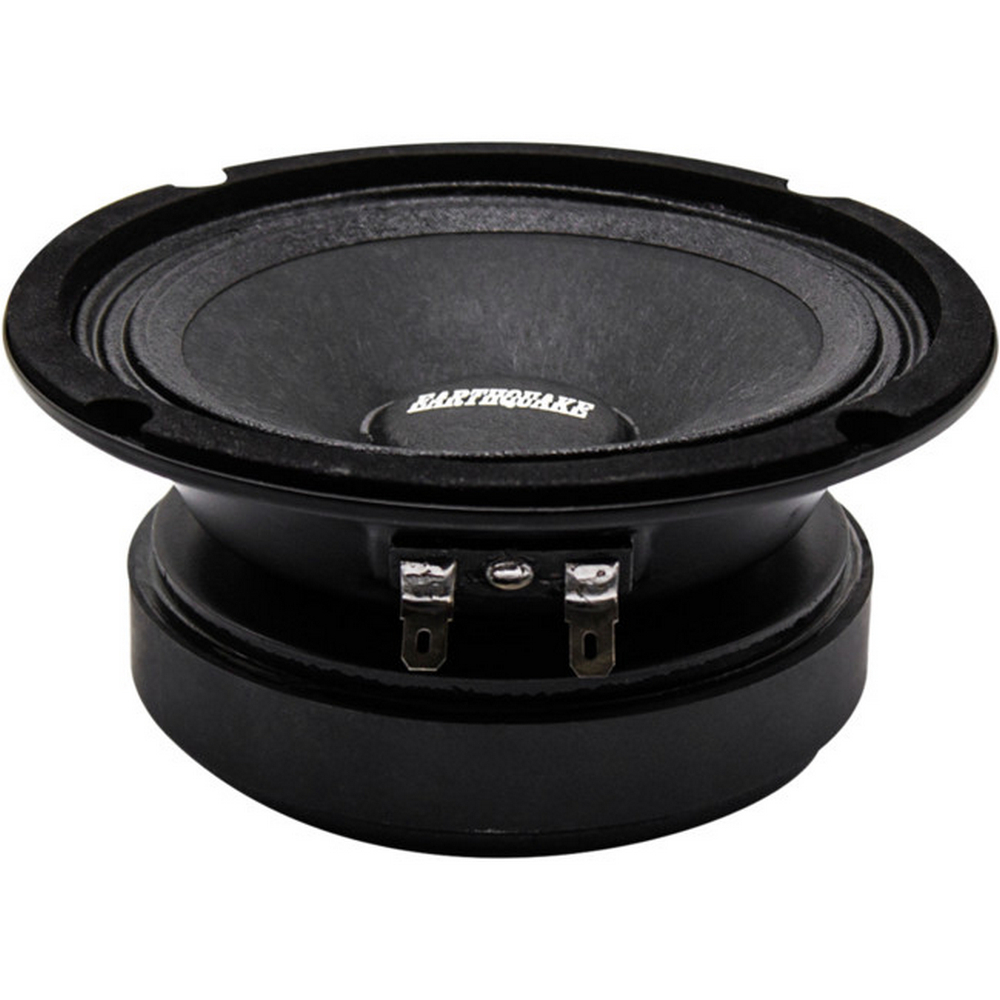

Earthquake sealed basket speakers, ideal replacement for your speaker for audio needs.

The Earthquake EQ line of Maximum Musical Output drivers are specifically designed to provide smooth, low-distortion mid-range/mid-bass output for the highest quality sound reinforcement applications. Because of their relatively highresonance and very low Qts values, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free response.

• High efficiency / sensitivity
• Multi roll cloth surround
• New longer lasting, low mass cone
• Stamped steel basket with jet-black finish
• Enhanced sound quality
• Heavy duty ferrite magnets
• Edge-wound aluminum bobbin voice coils
• Low harmonic distortion
• Max output @ low wattage
• Sealed Basket
• Not Vented T-Yoke
• Bumped Back Basket

Specification

• Size: 5" (127mm) Midbass
• Resonance: 503Hz +/- 15%
• Frequency Response: 300Hz - 14kHz
• Max Power Rating: 100W
• Impedance: 8Ω
• Sensitivity: 96dB
• Magnet Wieght: 30oz. (0,85 kg)
