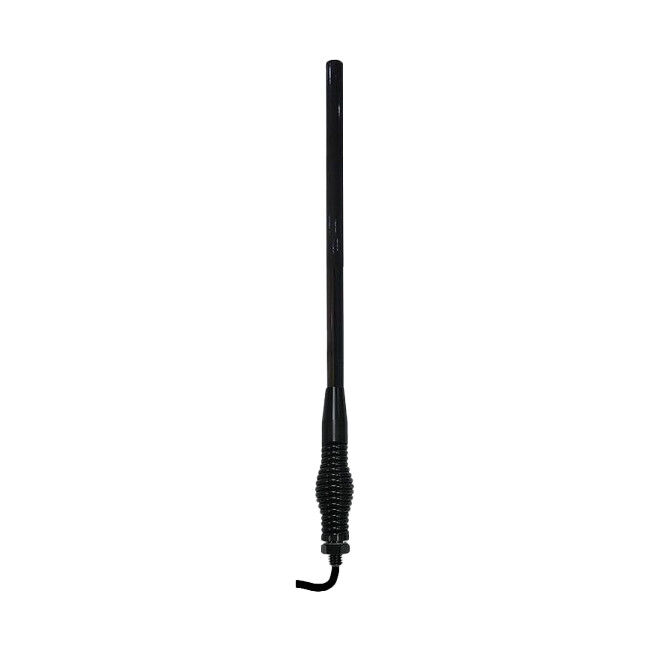

024573 5G 3DB CELLULAR MOBILE ANTENNA

The 024573 antenna is a multi-band mobile 5G ready cellular antenna intended for use in the frequency bands 690 – 960 MHz, 1710 – 2700 MHz and 3500 – 3700 MHz. The 024573 antenna does away with the need for three separate antennas whilst maintaining medium gain across the band. The antenna utilizes a low loss cable lead directly attached to the antenna which allows for ease of installation. The antenna is light weight, enclosed in a thickwalled fiberglass radome and is fitted to a stainless-steel spring. Its reduced height allows for clearance from
obstacles, where the antenna is required to be located higher on the vehicle.

Features

• Multi-Band performance
• Easy to install
• Fiberglass and thick-walled radome
• Light weight
• Plated heavy duty barrel stainless steel spring
• Factory tuned; no further tuning required
• Designed and manufactured in Australia

specs

• Frequency:
  • 690 – 960 MHz Tuned Bandwidth
  • 270 MHz 1710 – 2700 MHz Tuned Bandwidth
  • 990 MHz 3500 – 3700 MHz Tuned Bandwidth 200 MHz
• Gain:
  • 3 dBi (690 – 960 MHz)
  • 3 dBi (1710 – 2700 MHz)
  • 3 dBi (3500 – 3700 MHz)
• Impedance 50 Ohm
• VSWR < 2:1
• Radiation Pattern Omni-directional
• E Plane 3dB Beamwidth 60 deg
• Length 420 mm (includes spring assembly)
• Width Fiberglass: 16 mm (0.6”) Spring: 35 mm (1.4”)
• Weight 0.59 kg (1.3 lbs)
• Termination SMA Plug, 5 m (16’) RG58 Cable Tail (05603)
• Construction Fiberglass Radome, Black Coa
