Overview

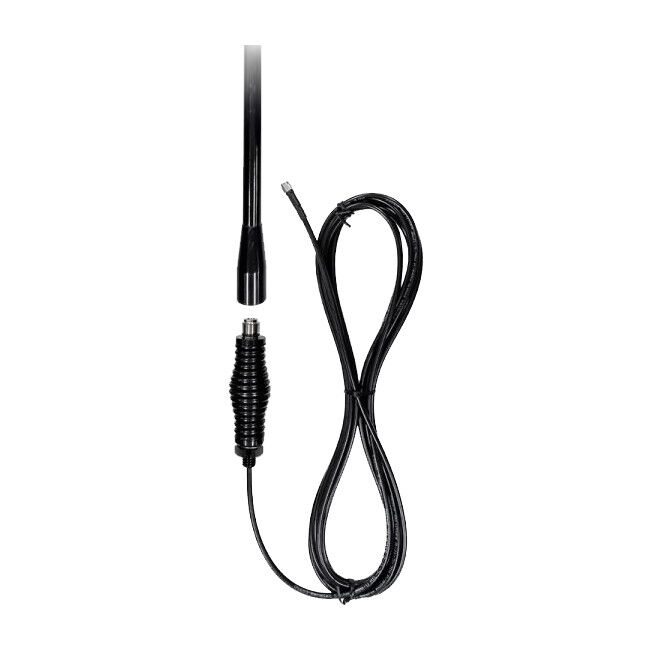

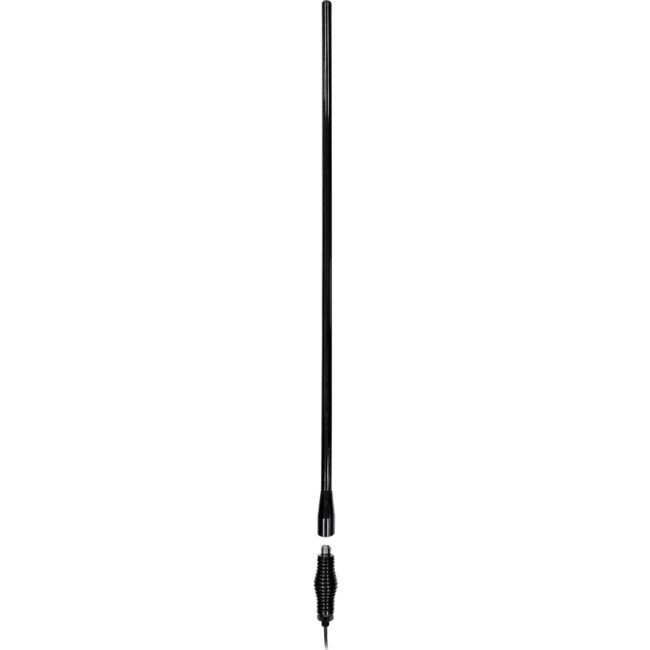

024579R 5G 7.5DB CELLULAR ANTENNA WITH REMOVABLE WHIP

Sealed removable Spring interface, Heavy Duty construction, Covering the full 5G band, 690-960MHz + 1710-2700MHz and 3.5-3.7GHz. Terminated to 5m x Low Loss Cable and SMA plug fitted. Overall length 1220mm.

Features

• Multi-Band performance
• Removable antenna
• Easy to install
• Fiberglass and thick-walled radom
• Light weight
• Plated heavy duty barrel stainless steel spring
• Designed and manufactured in Australia

specs

• Frequency
  • 690 – 960 MHz Tuned Bandwidth 270 MHz
  • 1710 – 2700 MHz Tuned Bandwidth 990 MHz
  • 3500 – 3700 MHz Tuned Bandwidth 200 MHz Gain 7.5 dBi (690 – 960 MHz) 3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz)
• Impedance 50 Ω
• Operating VSWR < 2:1
• Radiation Pattern Omni Directional
• E Plane 3dB Beamwidth 14 Deg @ 690-960MHz
• Length 1240 mm (includes spring assembly)
• Width Fiberglass: 16mm (0.6”) Spring: 35mm (1.4”) Weight 0.84 kg (1.8 lbs)
• Termination SMA Plug, 5m (16.4’Low Loss RG58 Cable Tail (05603)
• Construction Fibreglass Radom, Black Coated Stainless-Steel Spring and Brass Ferrule
