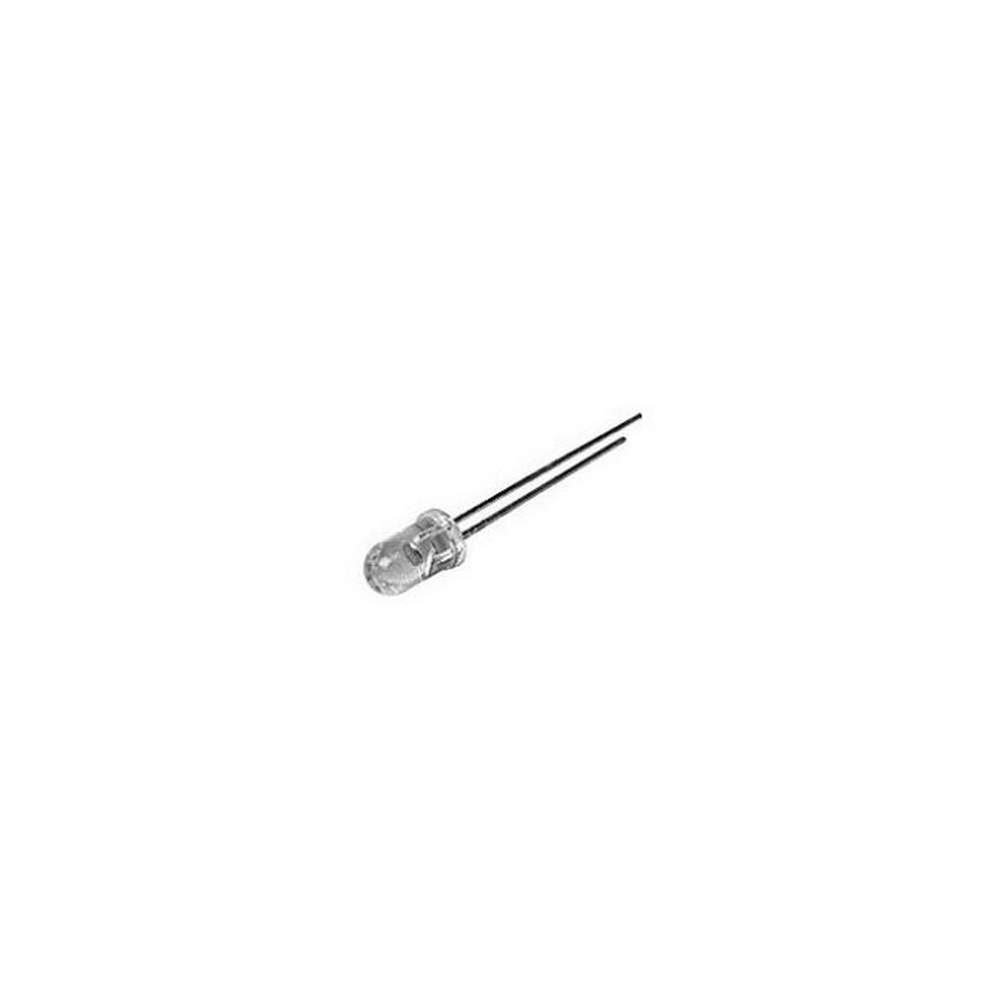

5MM INFRA-RED RECEIVER DIODE
Looks like a 5mm LED & has a clear transparent lens. Mechanically and spectrally matched to the IRE5 infrared emitting led lamp.

Specifications:

  • Water clear lens
  • Made with NPN silicon phototransistor chips
  • NPN Collector-to-Emmiter Breakdown voltage: 30V
  • Emitter-to-Collector Breakdown voltage: 5V
  • Collector-to-Emmiter Saturation voltage: 0.8V Max
  • Collector Dark current: 100nA@10V(Vce)
  • Rise and Fall time: 3uS @ 5V(Vce)
  • Breakdown voltage: 5V
  • Power Dissipation: 100mW max
  • Collector: Short Leg
  • Emitter: Long Leg

(IRR5)

12 Months

SKU IRR5
Model # ZD-1950
Barcode # 9319236006535
Brand BOURNE
Unit Of Measure Each
Assembled Width 0.001m
