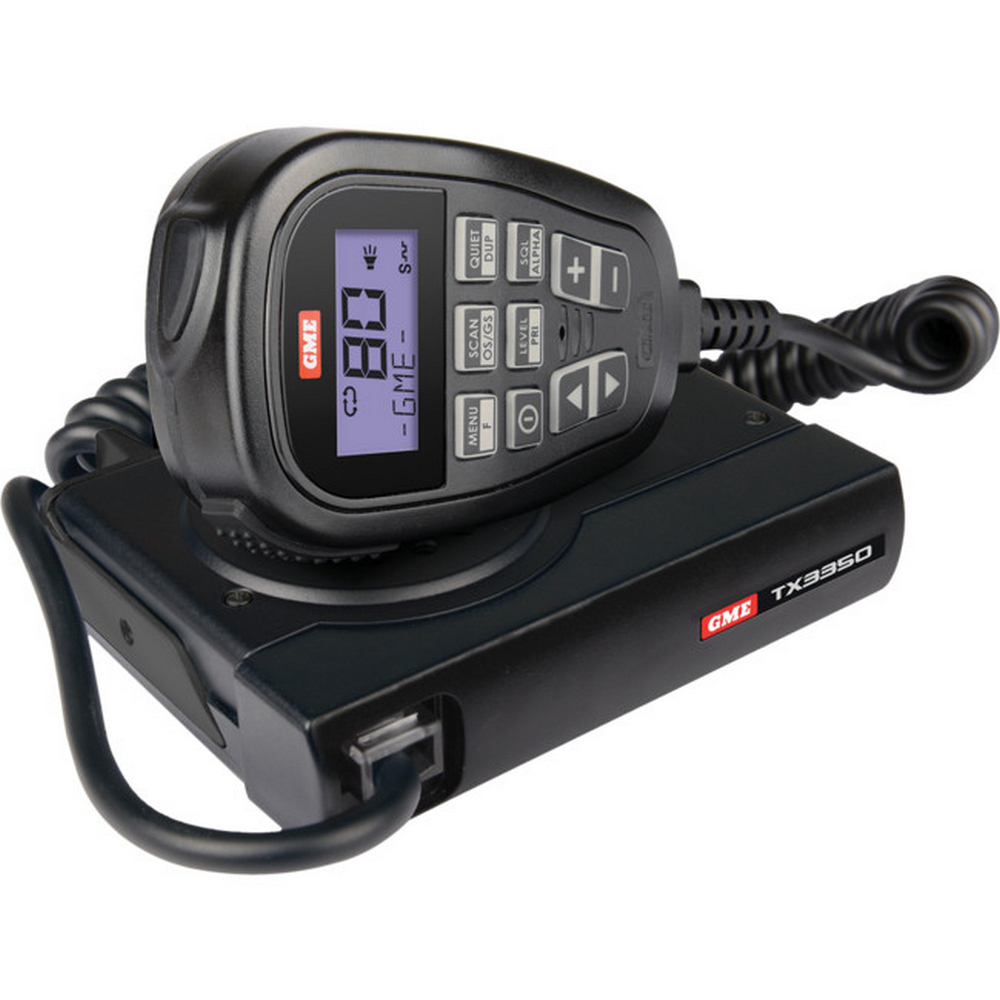

TX3350SP1 5W SUPER COMPACT UHF CB RADIO

Super Compact UHF CB Radio with LCD SoundPath™ Speaker mic
The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath™ full function LCD Speaker Microphone.
The challenge was to create a unique solution that alloweda full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath™ diverts the audio through a unique convexpath around the microphone bollard, whilst maintaining the compact size.
The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extension speakers.

{tab Features}

• Powered by Pure Sound DSP engine
• Full spectrum backlit LCD microphone with Soundpath speaker
• User selectable open and group scan
• User adjustable squelch
• User selectable duplex channels
• User selectable priority channel
• 104 in-built DCS codes
• 50 in-built CTCSS codes
• 5 digit selcall with quiet mode
• Five year warranty
• Australian design and manufacture

Specifications

• Compliant Specification Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
• Frequency Range TX 476.425 – 477.4125 MHz
• Number of Channels 80 UHF CB
• Channel Spacing 12.5 kHz
• Operation Mode simplex channels 1-80, Semi Duplex channels 1-8, 41-48
• Scanning Speed 20 channels per second
• Antenna Impedance 50 Ohms nominal
• Nominal Battery Voltage 13.8 volts DC
• Operating Voltage Range 10-15 volts DC
• Overvoltage Protection 25 volts DC max At 18 volts DC the RF power is reduced, and the words 'Hi DC' flash.
• Overcurrent Protection In-line 2A Fuse
• Frequency stability ±2.5 PPM
• Modulation FM
• Dimensions 102 (W) x 87 (D) x 23 (H) mm
• Weight 158 grams

• Radio unit
• Mounting cradle
• 634B LCD Speaker microphone
• Microphone clip
• DC lead
• Screw pack
• Instruction manual
