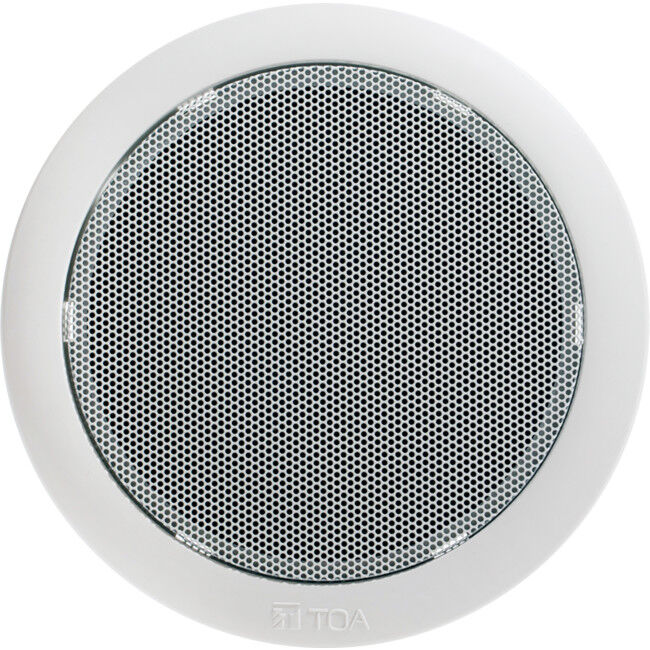

Toa PC-648R Ceiling Speakers

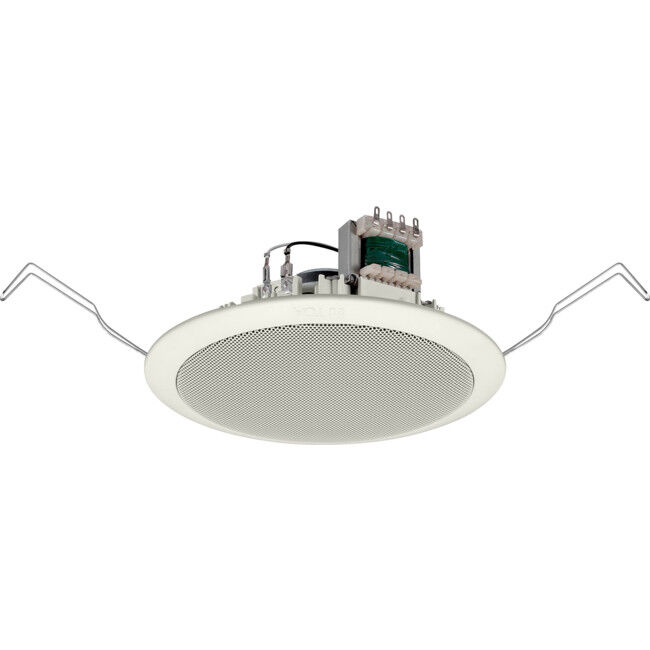

The PC-648R is a ceiling mount speaker with a resin panel and speaker frame. It features a spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by adjusting the tap position of the transformer.

  • Special design for thin ceiling
  • Spring clamp mechanism for easy speaker mounting to the ceiling



Application examples for this product

  • Shopping centers
  • Hotels
  • Educational Facilities
  • Retail Stores
  • Hospitals / Health Care

Specifications

Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
Frequency Response 100 Hz – 18 kHz (peak -20 dB)
Speaker Component 12 cm (5?) cone-type
Dimensions for Fixing Hole Mounting hole: Φ145±5 mm (Φ5.71?±0.2?)
Ceiling thickness: 5 – 25 mm (0.2? – 0.98?)
Speaker Mounting Method Spring clamp
Finish Baffle: Polypropylene resin, white (RAL 9016 equivalent)
Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Dimensions Φ168 × 77 (D) mm (Φ6.61? × 3.03?)
Weight 470 g (1.04 lb)
Accessory Paper pattern …1



(PC648R)

SKU PC648R
Model # PC648R
