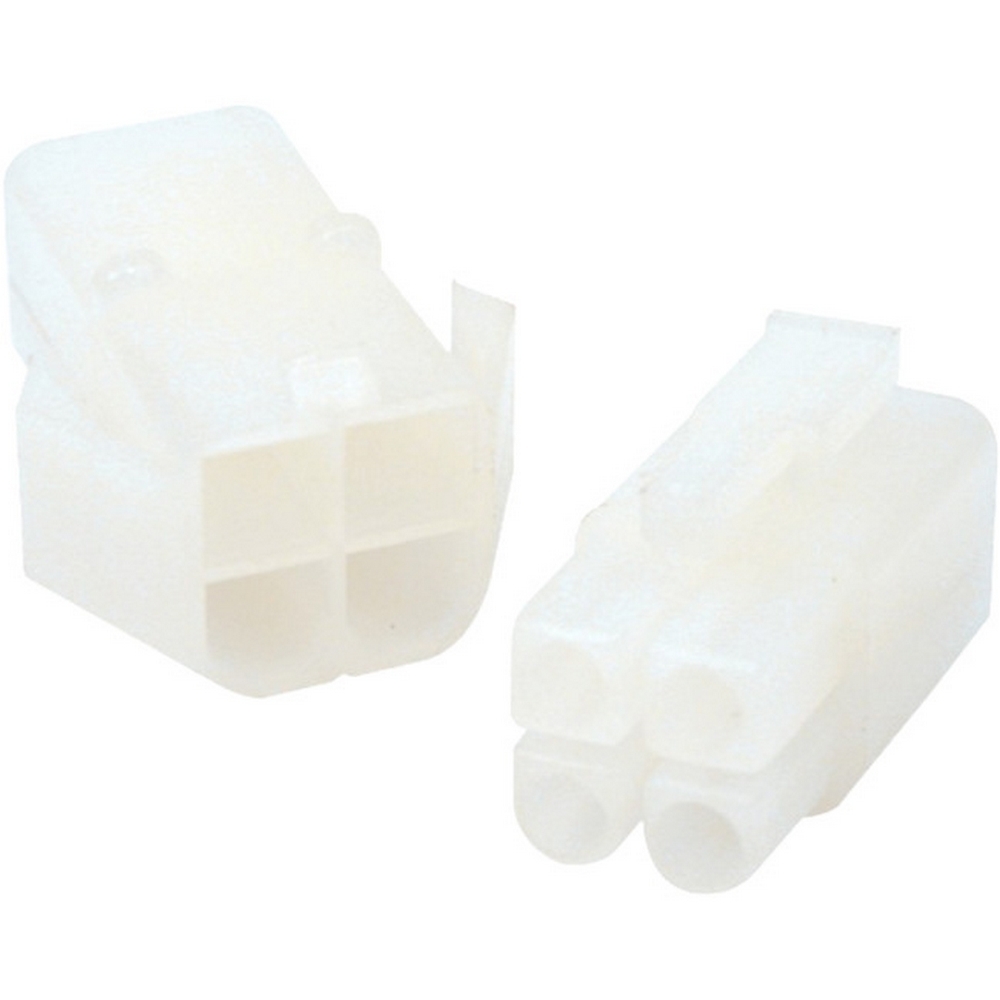

  • 6007 SERIES CONNECTORS
  • There are many special features of the 6007 connector series that exceed standard connector
    design practices.
  •  Rated at up to 300V AC/DC, these compact connectors will withstand
    1,500V AC/minute, and operate within a temperature range of -25°C to 105°C.
  •  Polarised to ensure correct mating, a positive locking latch also automatically engages at mating, and the
    option exists for in line or hand fitted panel mounted installation.
  •  The complete cell housing system fully covers and protects the contacts.
  •  The high reliability 2mm O.D. crimp contacts, are easily snappedinto the housings by hand, with two sizes covering a wide wire range from
    0.2 to 2.0mm2.
  • Maximum contact resistance is limited to 10 ohm.

(6007-4)

12 Months

SKU 6007-4
Model # 6007-4
Brand BOURNE
Unit Of Measure Each
Assembled Width 0.014m
