60Km HDMI Extender Over Fibre 4K@60Hz Base Only Reqr Module

This is Transmitter and Receiver base only!!!

This product requires a pair of transceiver module to work. Please choose from related product at the bottom of the page.

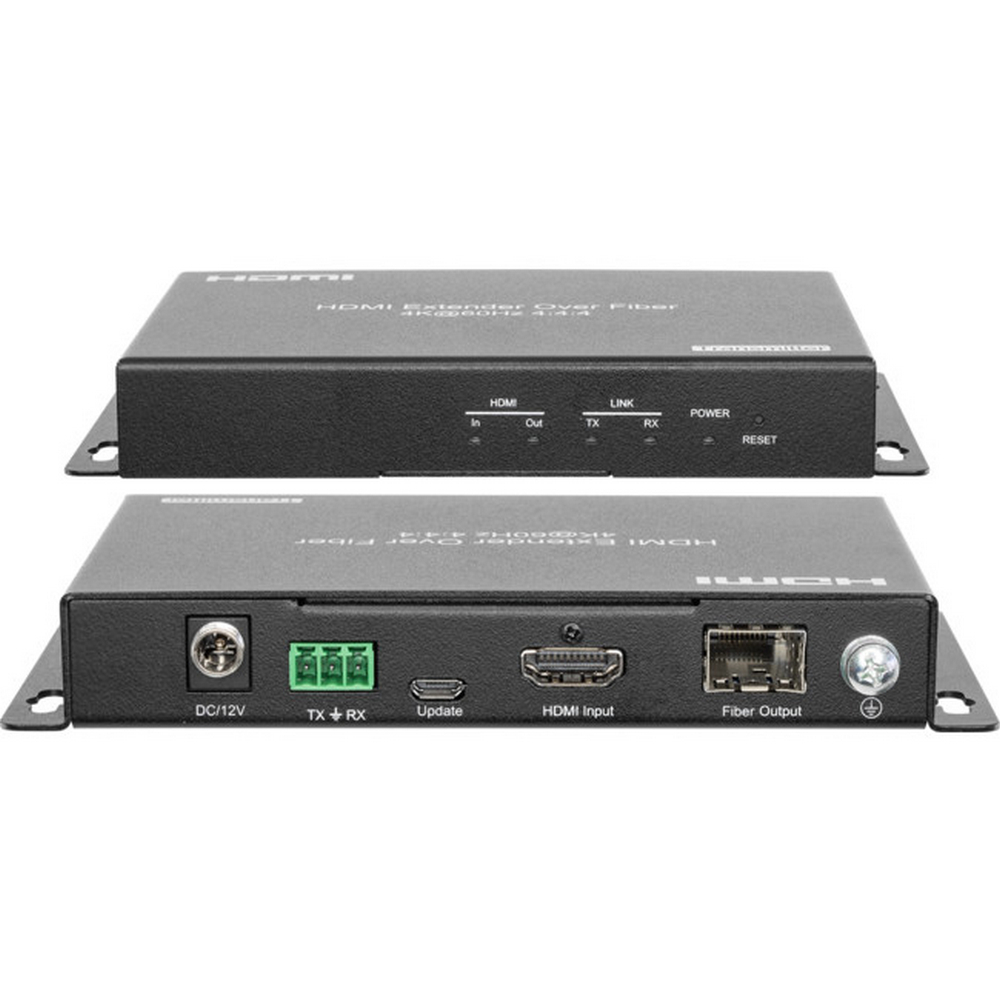

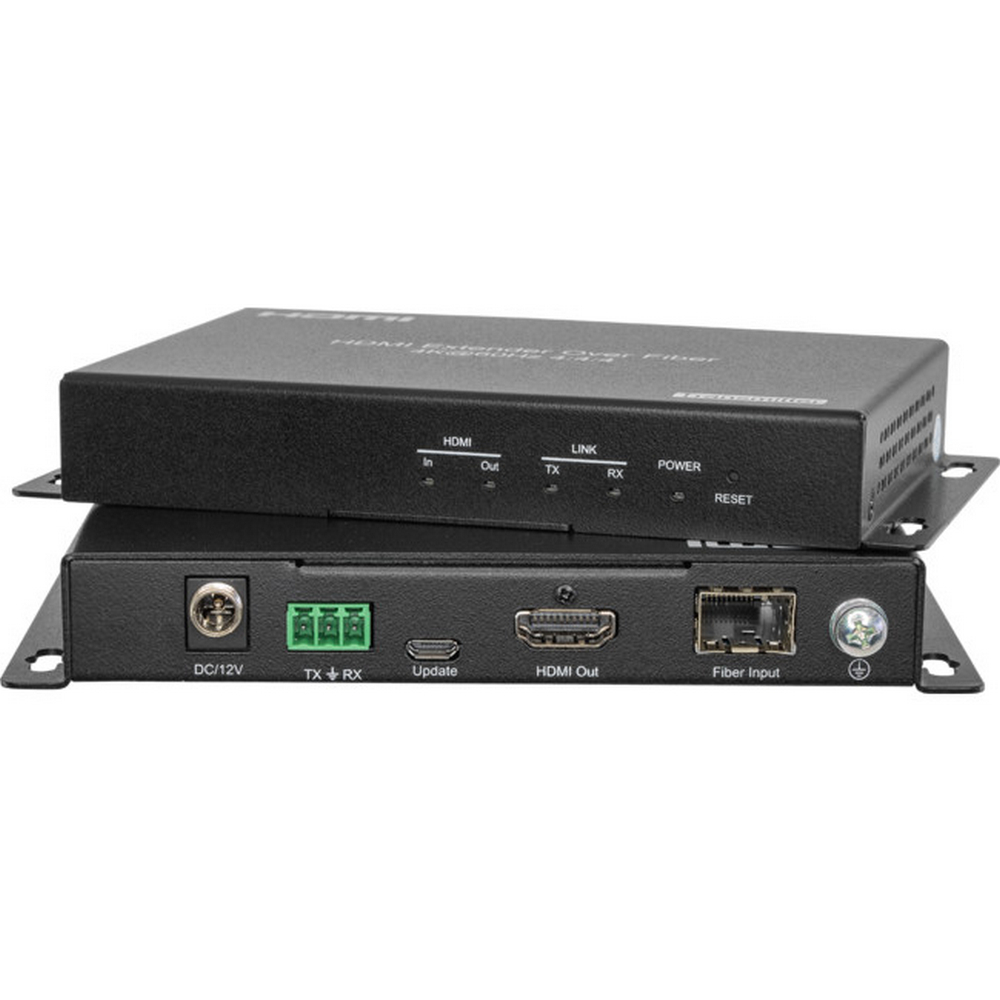

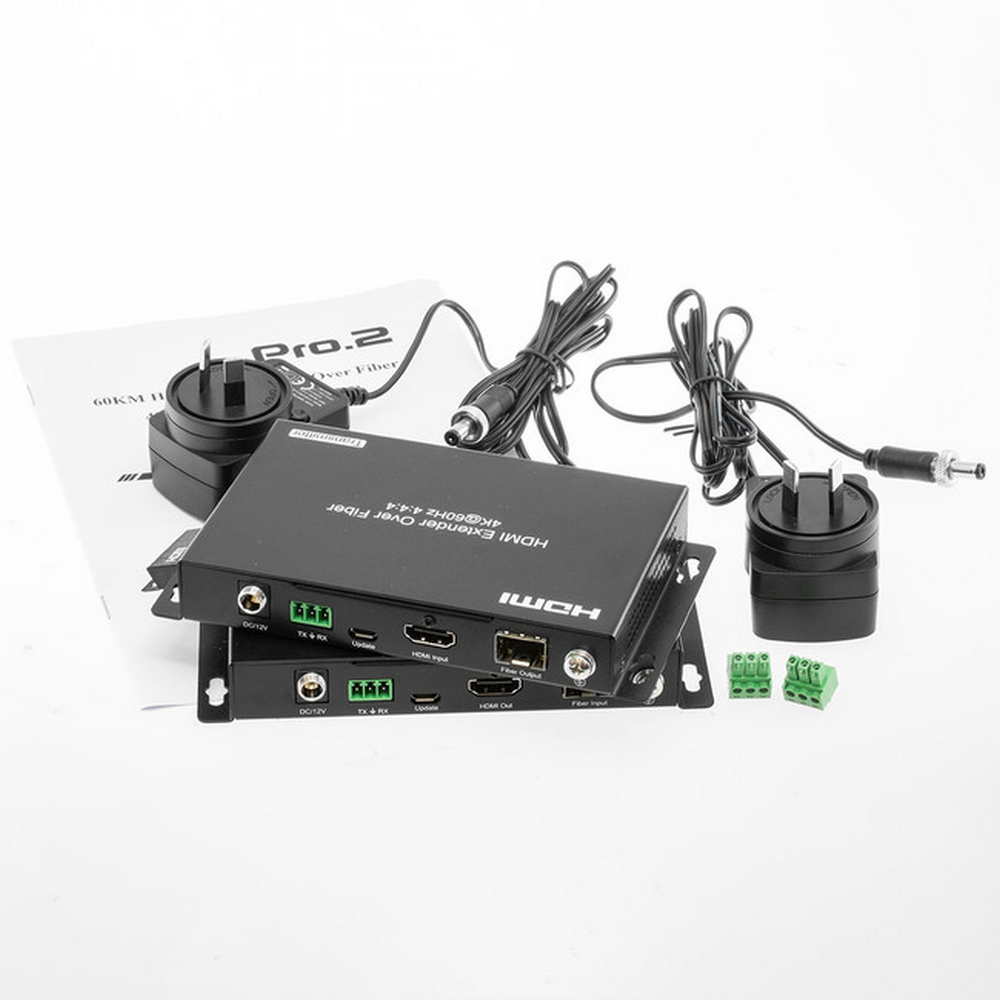

The HDMIFIB4K is a long-range HDMI video extender kit that uses LC fibre optic cable to extend video/audio from anHDMI-equipped device to a remote display up to 60km away(60km transceiver fibre module required). The extender supports up to 4K resolution with 18Gps bandwidth includes both the transmitter and receiver base only.

Features

Transmit from 1m to 60KM over Single/Multi mode, single/duplex fiber
Support resolution up to 4Kx2K@60Hz, YUV4:4:4 HDR
Support bandwidth up to 18Gbps
Without latency
Support HDCP2.2 input, HDCP2.2 output
Support HDCP1.4 input, HDCP1.4 output
Support RS232 Bi-direction pass through
With Automatic EDID for rapid integration of source and display
Support LPCM7.1, Dolby True HD, DTS-HD Master Audio
Locking power supplies
Surface-mountable

SPECIFICATIONS

Operating Temperature Range	-5 to +40(+23 to +95)
Operating Humidity Range	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Km single Multi mode 300m single Duplex fiber optical cable
Module type required?	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution
Audio Format	Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™ .
HDCP	HDCP 1.4 in, HDCP 1.4 out HDCP 2.2 in, HDCP 2.2 out
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610021mm Receiver: 9610021mm
Net Weight	475g (Pair)
