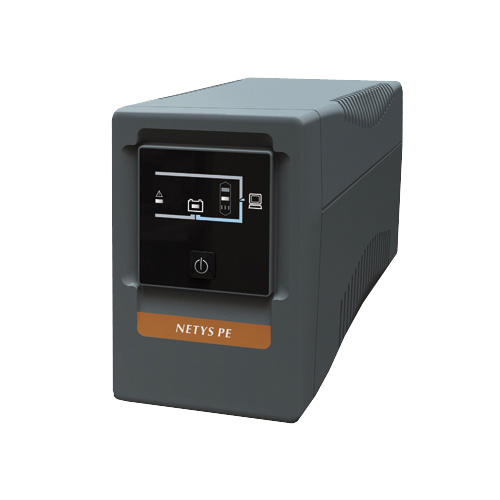

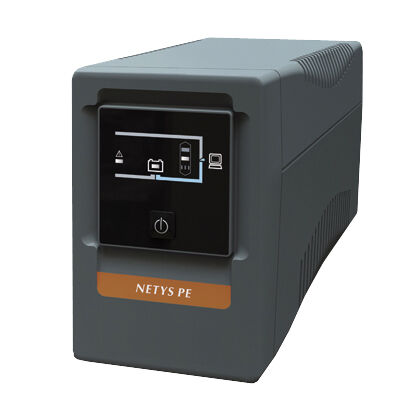

650VA Line-Interactive Tower UPS - 360W UPS650VA

The UPS650VA is a line-interactive Uninterruptible Power Supply (UPS) that provides backup power to your security devices in the case of a power outage.

Features:

•  2 x Australian power sockets
•  Provides backup power to the equipment's consumption or required backup time
•  Estimated 15 minutes of backup power for a PC + 17" LCD Monitor
•  Integrated AVR (Automatic Voltage Regulation) stabilises the output voltage and avoids unnecessary switching to battery mode operation, preserving battery for use in power cut events
•  Integrated NTP protection for LAN/ADSL connection against the risk of data line over voltage
•  Step waveform (simulated sine)

Specifications

Battery

• Battery Type : Sealed lead-acid maintenance free - expected life 3/5 years
• Capacity : 650VA / 360W
• Frequency Range (Battery Mode) : 50Hz / 60Hz ±1Hz
• Est. Backup Time : ~28min@72W

Input

• Rated input Voltage : 170 - 280 V (IEC and Australian standards)
• Rated input Frequency : 50/60 Hz

Output

• AC Voltage Regulation : Yes
• Rated output Voltage : 230 V ±10%
• Rated output Frequency : 50/60 Hz ±1%
• Waveform (Batt. Mode) : Step Wave (Simulated Sine)
• Protection : Overload, Overcharge, ESD
• Output Sockets : 2 x Australian power sockets
• Alarm Output : Yes

Communication

• Interface : USB
• Local Communication Software : Local View

General

• UPS Type : Line Interactive
• Dimensions : 100 x 290 x 145mm
• Weight : 5.2kg
