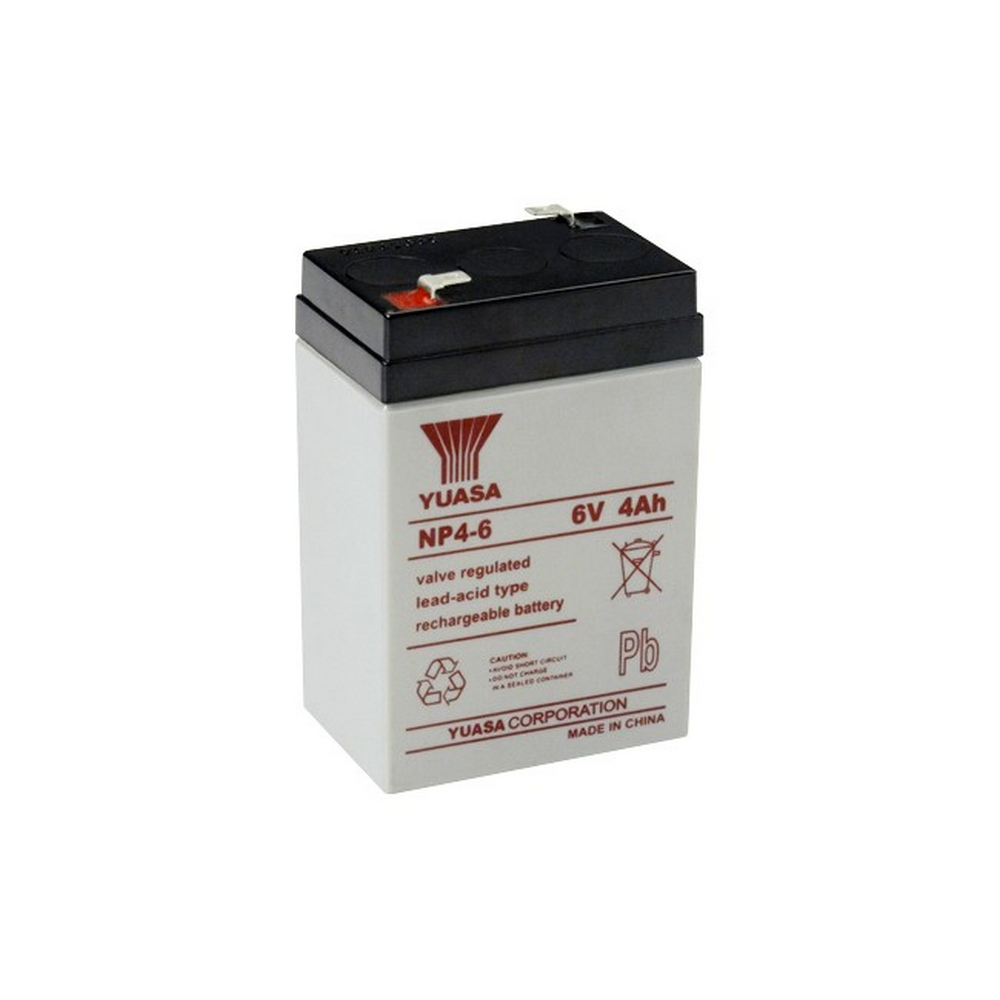

YUASA NP SERIES SEALED LEAD ACID BATTERIES

Yuasa batteries are the trusted choice around the worldfor standby power in applications where system integrity is paramount. Yuasa’s NP series incorporates high energy density, advanced plate technology and a sealed construction to provide complete peace of mind.

FEATURES:

• Superb recovery from deep discharge. Over 1,000 Discharge / Recharge Cycles
• Low Self Discharge-Long shelf life
• Electrolyte suspension system.
• Maintenance Free Operation
• Gas Recombination.
• Low Pressure Venting System
• Multipurpose: Float or Cyclic use.
• Operates In Any Position. Usable in any orientation(except continuous inverted).
• Superior energy density.
• 3 ~ 5 Years Float Service Life
• Heavy Duty Lead calcium grids for extended life.
• Manufactured world wide.
• Application specific designs.

APPLICATIONS:

Yuasa NP batteries, having excellent deep discharge recovery characteristics coupled with long life on float standby, are ideal for numerous applications in both cyclic and standby modes.

High Recovery Capability Applications include:

• Uninterruptible Power Supplies
• Telecommunication Systems
• Fire & Security Systems
• Alarm Systems
• Emergency Lighting Systems
• Medical Equipment
• Power Tools
• Control Equipment & Toys
• Solar Powered Systems
• Marine Equipment

.

SPECIFICATIONS:

• Voltage: 6V
• Capacity: 4Ah
• Discharge current: 10A.
• Final voltage: 1.75/Cell
• Terminals: 4.70mm Q.C Tabs
• Dimensions: (LWH) 70 x 47 x 105.5 mm.
• Weight: 0.87kg.
