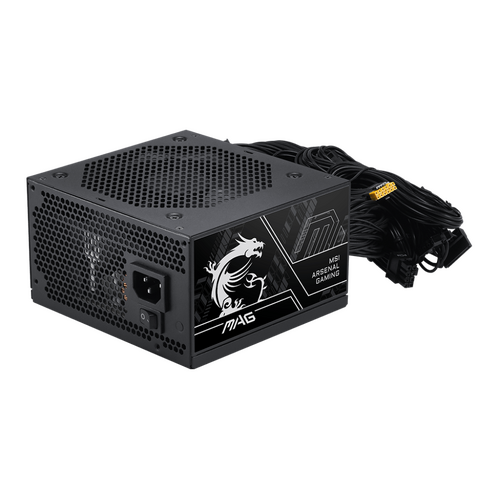

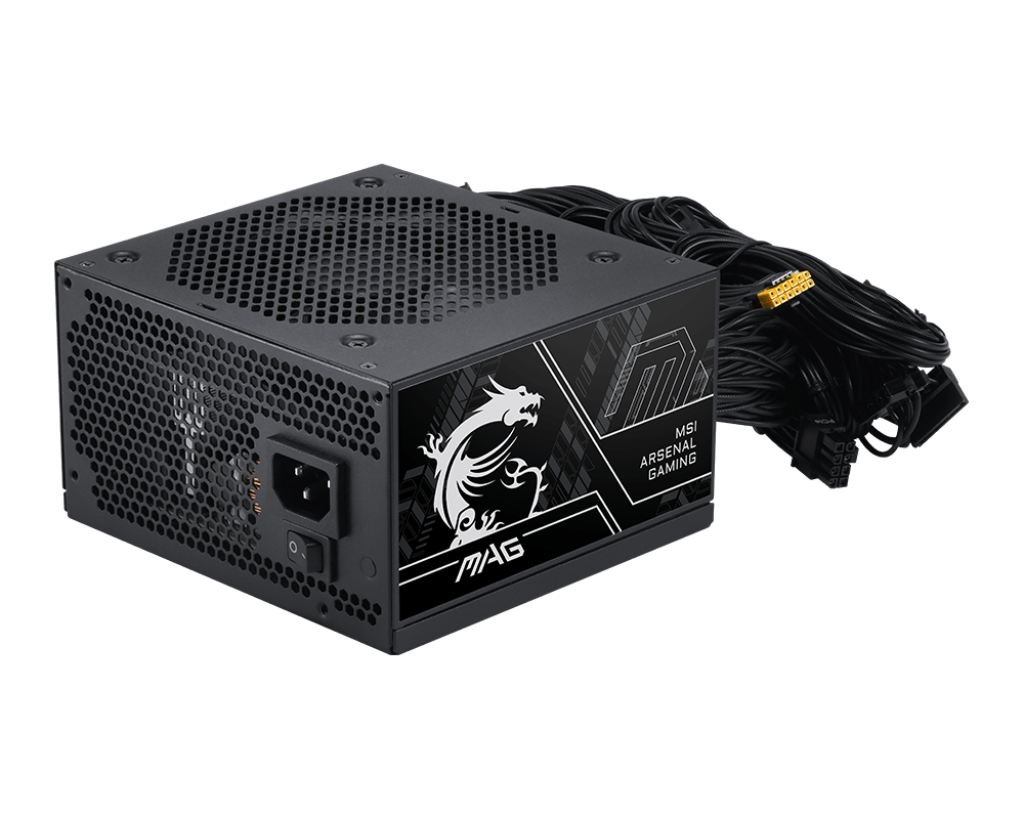

Product Name MAG A750BN PCIE5 III
Model Name TORX FAN 12CM
Weight (Card) 169 g
Radiator Compatibility 120 / 140 / 240 mm
Efficiency Rating 80 PLUS Bronze (up to 85%)
Modular No
Fan Dimensions 120 × 120 × 25.6 mm
Fan Size 120 mm
Fan Bearing Hydraulic Bearing
PSU Dimensions (D × W × H) 140 × 150 × 86 mm / 5.51 × 5.9 × 3.38 in
Bearing Type Hydro-Dynamic Bearing
PFC Type Active PFC
Rated Speed 500 – 1800 ±15% RPM
Input Voltage Range 100–240V~
Air Flow 19.79 – 71.27 CFM
Power Output 750 W
Static Air Pressure 0.16 – 2.09 mm-H₂O
Power Excursion 200%
Connector Type 4-Pin PWM / DC
Input Frequency Range 50–60 Hz
Life Expectancy MTTF 150,000 hours (25 °C)
Protection OVP, OCP, SCP, OPP, UVP
ATX (24-pin) 1
EPS (4+4-pin) 2
PCI-E 5.1 (16-pin) 1 (450 W)
PCI-E (6+2-pin) 3
SATA (15-pin) 3
Peripheral (4-pin) 2



(MAGA750BNPCIE5III)

SKU MAGA750BNPCIE5III
Model # MAG A750BN PCIE5 III
Brand MSI
