Full Range Commercial Ceiling Speaker

The Quest Q-Tech series QTC1080i ceiling speaker is a 5 taping 15 watt 100/70V line twin cone speaker that is optimised for wide dispersion high intelligibility vocal coverage in commercial environments.

A Closer Look

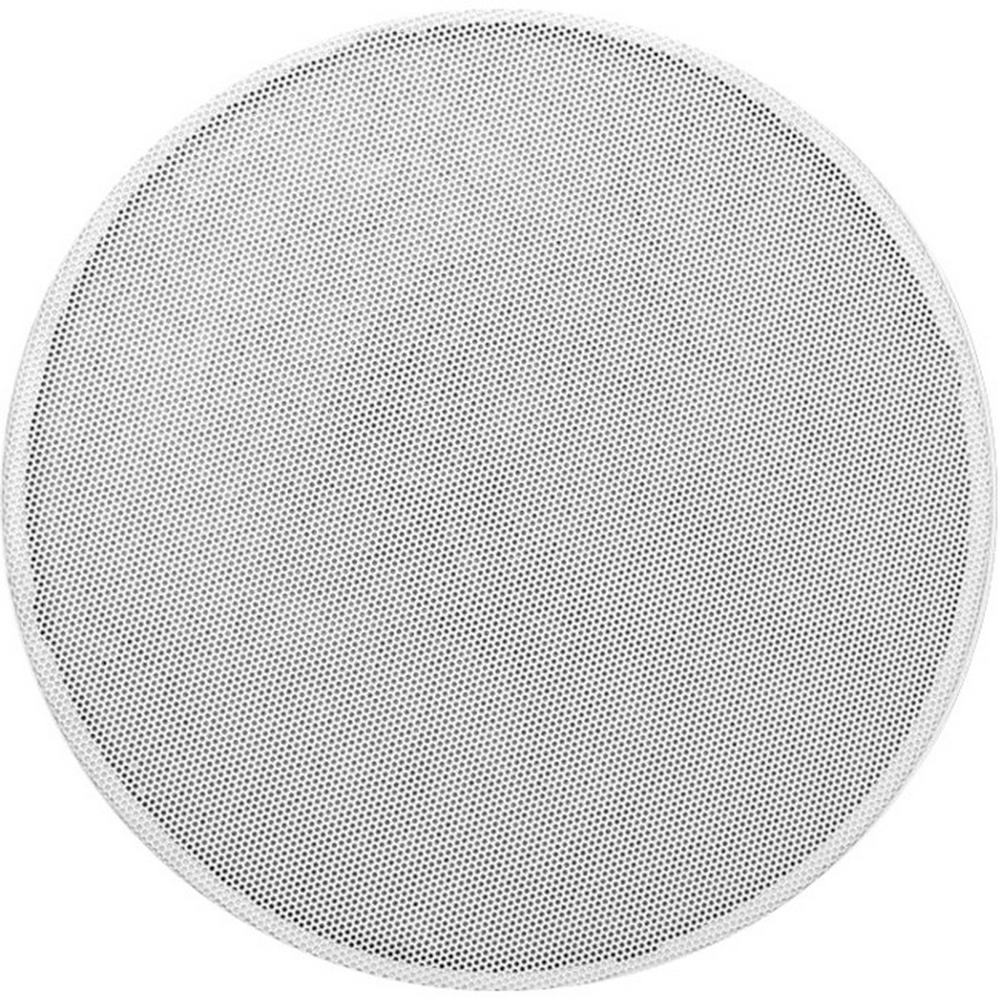

The main body is made of propylene material, with a whitemagnetic rimless steel grille and has connections via rearterminal strip.

The loudspeaker can be connected as low impedance 16ohm or as a 70/100 volt line system.

Wattage tapings are: 1.87W, 3.75W, 7.5W, 15W. Cut-out size is 210mm

Features

  • High Sensitivity 8” twin-cone driver designed for extended high frequency response
  • Transformer for 100V or 16O applications
  • Magnetic grille for seamless aesthetics
  • Cut-out template and painting mask supplied

Specifications

  • Model
QTC1080I
  • Type
Twin cone Ceiling Speaker with Magnetic Rimless Grille
  • Driver
8" Twin Cone
  • Impedance
16 ohm or 100v
  • Low Impedance Power
15 Watts RMS
  • High Impedance Power
15 Watts 100V
  • Cut Out Size
210mm
  • Frequency Response
90Hz – 20kHz
  • 100v Taps
1.87w/3.75w/7.5w/15w
  • Dimensions (Dia x Height)
228 x 100mm
  • Maximum SPL
101 db
  • Sensitivity
93 db 1W @ 1 Metre

(QTC1080I)

12 Months

SKU QTC1080I
Model # QTC1080I
Barcode # 9331001005611
Brand QUEST
Unit Of Measure Each
Assembled Width 1.759m
