8-port 10/100/1000M Gigabit Ethernet Desktop Switch Supports MAC address self-learning and auto MDI/MDIX.
The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamlessand standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have tomove large files across the network almost instantly.
Standards and Protocols
|
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP
|
Basic Function
|
Wire-speed Performance
|
MAC Address Auto-Learningand Auto-aging
|
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
|
|
Backbound Bandwidth
|
16Gbps
|
MAC Address Table
|
4k
|
Forwarding Rate
|
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port
|
Transmission Method
|
Store-and-Forward
|
Ports
|

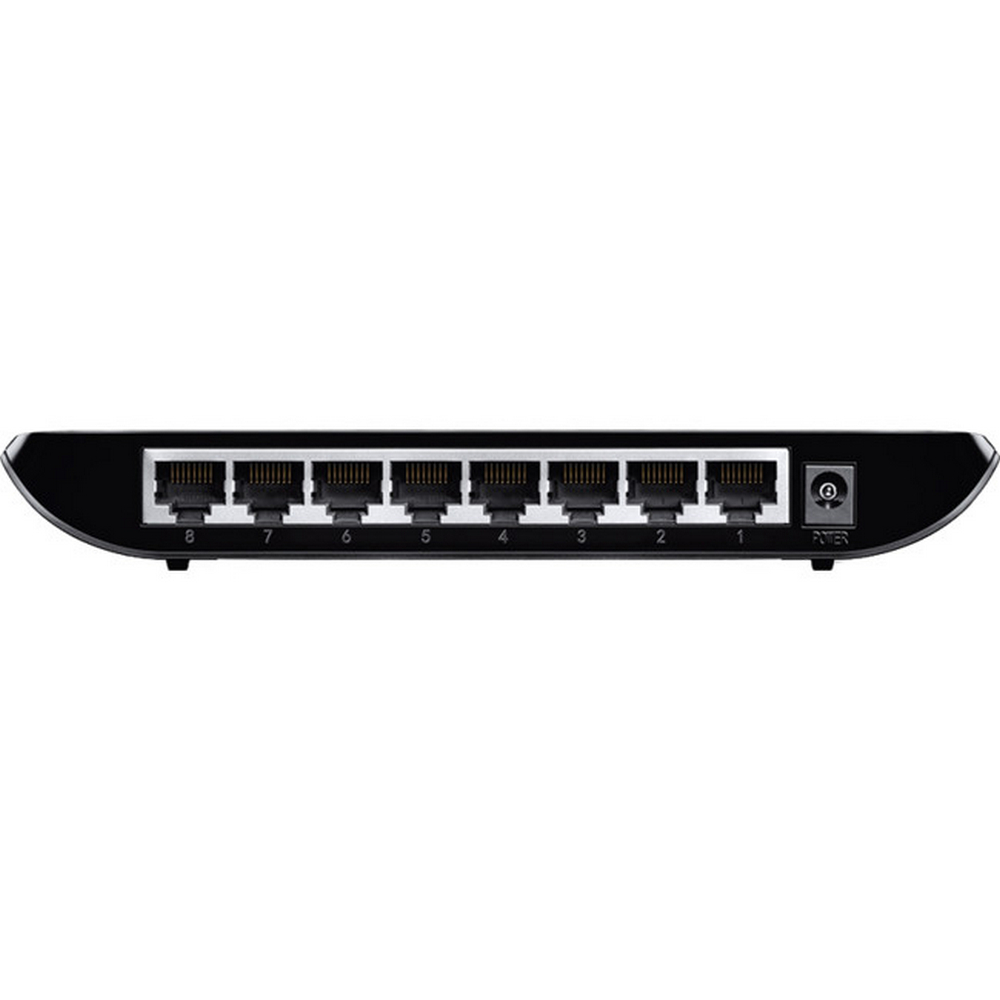

8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
|
Network Media
|
10Base-T: UTP category 3,4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
|

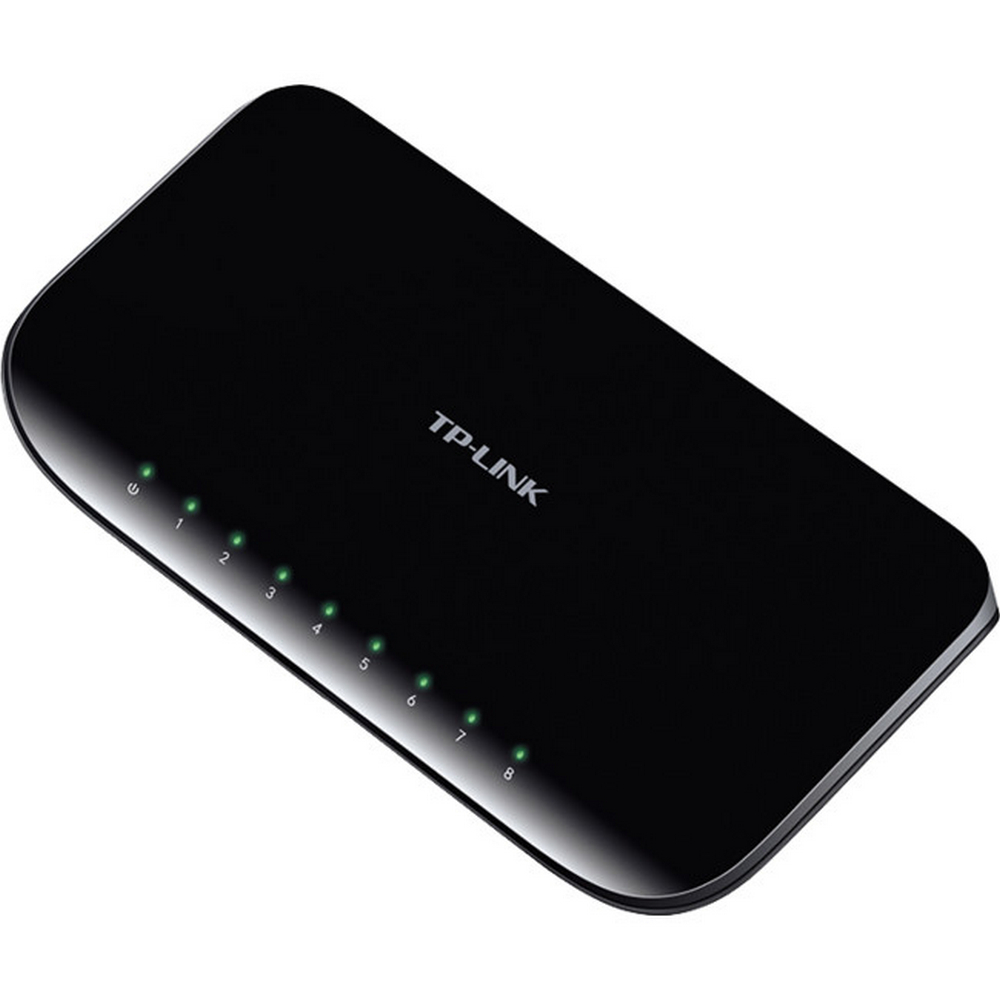

LED Indicators
|
Power, 10/100M, 1000M
|
Safety & Emission
|
FCC, CE
|
Dimensions (W*D*H)
|
7.9*5.5*1.1 in. (200*140*28 mm)
|
Environment
|
Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)
Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Power
|
External Power Adapter
|
(NWTL-SG1008D)
SKU | NWTL-SG1008D |
Model # | TL-SG1008D |
Barcode # | 6935364092313 |
Brand | TP-LINK |
Unit Of Measure | Each |
