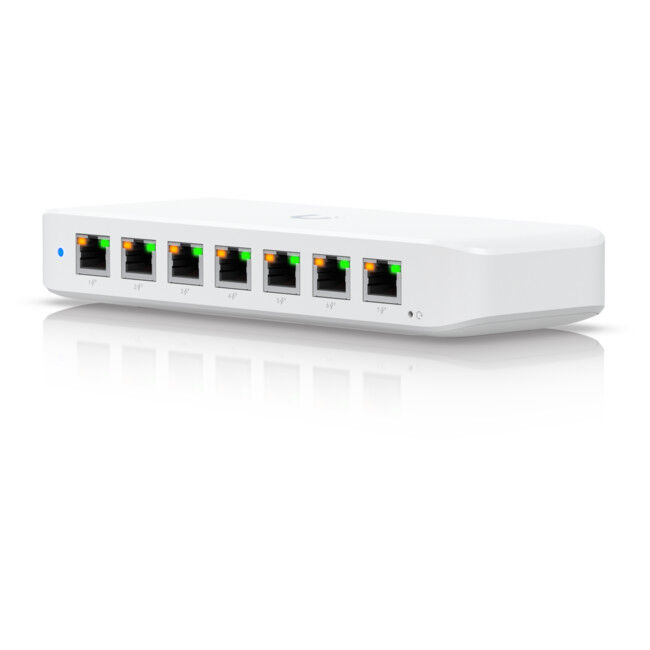

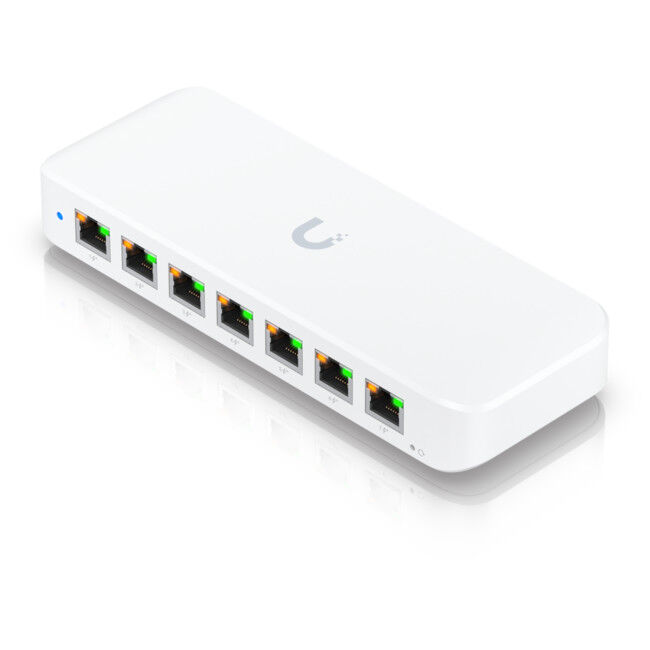

Ubiquiti Ultra 60W, Compact 8-port Layer 2 GbE PoE Switch, Versatile Mounting, 7 GbE PoE+ Output ports, 1 GbE Port, Includes PSU



Mechanical
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")
Weight Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
60W adapter: 330 g (11.6 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
Power method (1) 54V, 1.1A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Power supply 54V, external, 1.1A/60W
Supported voltage range 44—57V DC
Max. power consumption 9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)
Total available PoE PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
Max. PoE+ wattage per port by PSE 30W
Button Factory reset
Ambient operating temperature PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features
LEDs
System Status
Ethernet PoE
Link/activity



(USW-ULTRA-60W)

12
SKU USW-ULTRA-60W
Model # USW-ULTRA-60W
Barcode # 810084693704
Brand TP-LINK
