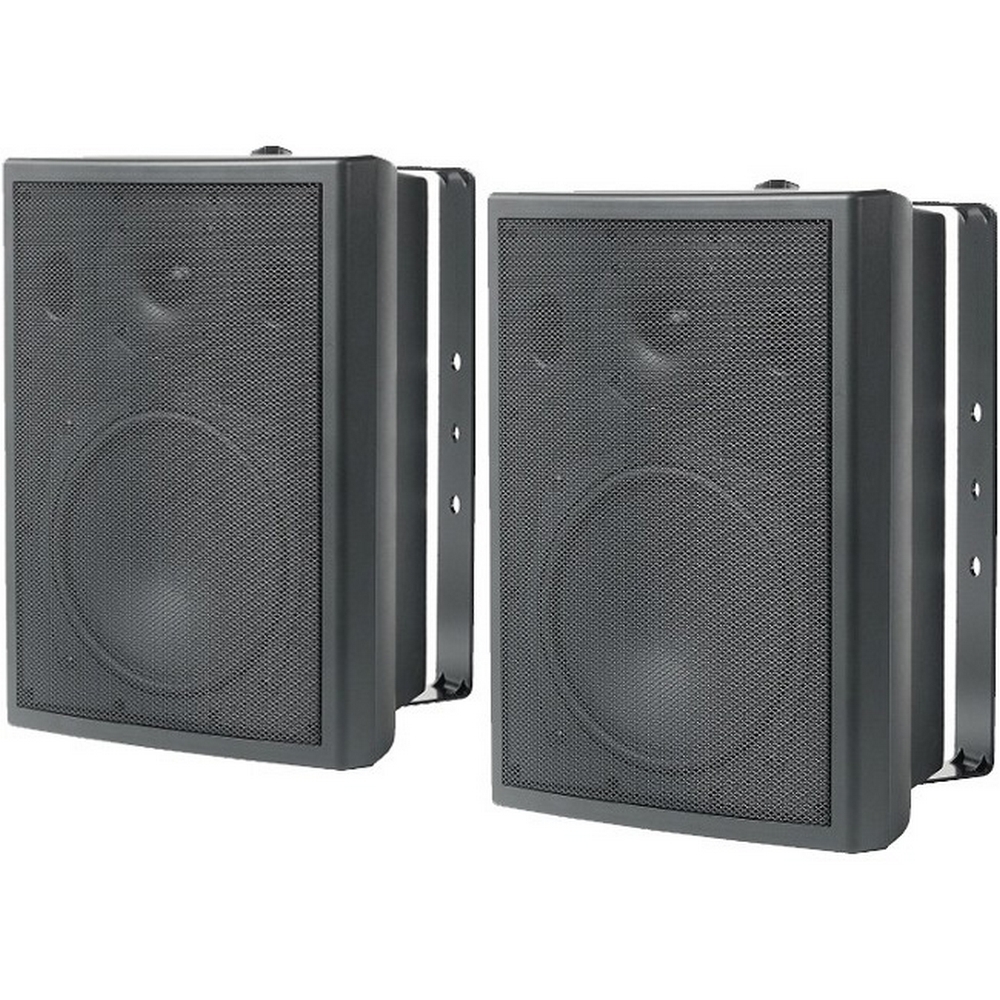

This speaker is designed for pure sound in Public Addressapplications. It provides high performance for outdoor and indoor activities by a polypropylene woofer and titanium dome tweeter. With a compact bracket included for easy mounting on wall or ceiling – other mounts also available.

It features a built-in stepdown transformer with winding selector for power/impedence matching.

Features
  • 8" polypropylene woofer and one titanium dome tweeter,with two way crossovers
  • HIPS cabinet built to handle outdoor conditions
  • U-shaped mounting bracket allows up to +/-85° mounting
    • Optional wall mounting plate and,
    • Floor-stand also available
  • With transformer winding selector

Specifications

  • Frequency range:
    • 55Hz~20kHz
  • Sensitivity (1W/1M):
    • 90dB
  • Impedance:
    • 100V: 30W / 60W / 90W
    • 70V: 15W / 30W / 60W / 90W
    • PASS: 8Ω
  • Drivers:
    • 8" Polyproplene woofer
    • 1" titanium dome tweeter
  • Crossover frequency:
    • 2.5kHz-3.5kHz
  • Bracket:
    • 'U' shaped mounting bracket (Included)
    • Wall mount plate (optional)
    • Floor-stand with YS connector (optional)
  • Dimensions (H×W×D):
    • 380×280×220mm (15" × 11" ×8.7")
  • Weight (Approx.) :
    • 6.2kg (13.67 lbs)

(CSB175CV)

12 Months

SKU CSB175CV
Model # CSB175CV
Barcode # 9328202030146
Brand BOURNE
Unit Of Measure Each
