Overview

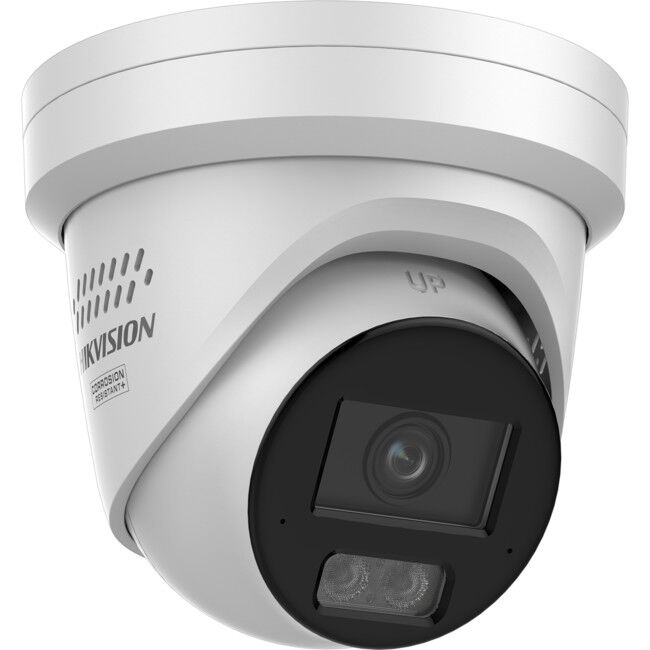

114-703-2 8MP 2.8MM COLORVU3.0 HYBRID TURRET - HIKVISION

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and
friendly lighting.

F1.0 super-aperture collects more light to produce brighter images.

Advanced sensor technology can vastly improve the utilization of available light.

Features:

• HikAI-ISP for excellent noise reduction effect

• 24/7 colorful imaging via ColorVu technology

• Scene-adaptive WDR

• Focus on Person and Vehicle classification based on deep learning

• Built-in arrayed dual-microphone for real-time high quality audio security

• Provide real-time security via built-in two-way audio

• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)

• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes

• Water and dust resistant (IP67)

• Audio and alarm interface available

• Active strobe light and audio alarm to warn intruders off


Specs

Camera

• Image Sensor 1/1.8" Progressive Scan CMOS

• Max. Resolution 3840 × 2160

• Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

• Shutter Time 1 s to 1/100,000 s

• Day & Night IR cut filter

• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°


Lens

• Lens Type Fixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV

• 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

• 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

• Lens Mount M16

• Iris Type Fixed

• Aperture F1.0

• Depth of Field

• 2.8 mm: 3.3 m to 8

• 4 mm: 3.8 m to 8

DORI

DORI:

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m


Illuminator

• Supplement Light Type White Light, IR

• Supplement Light Range Up to 30 m

• Smart Supplement Light Yes

• IR Wavelength 850 nm

General

• Power 12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection,

• PoE: IEEE 802.3at, Class 4, max. 17 W

• Material Cover: metal, main body: metal

• Dimension Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5")

• Package Dimension 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

• Weight Approx. 820 g (1.8 lb.)

• With Package Weight Approx. 1200 g (2.6 lb.)
