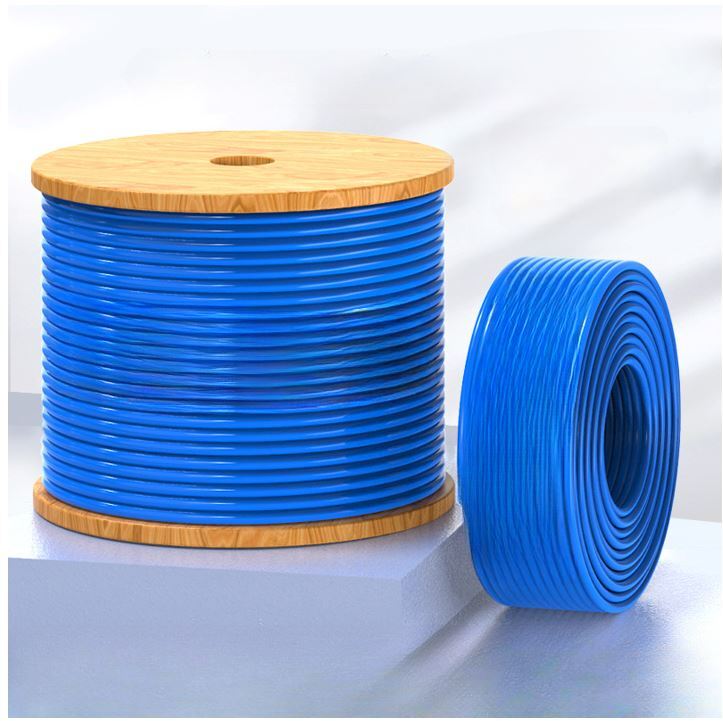

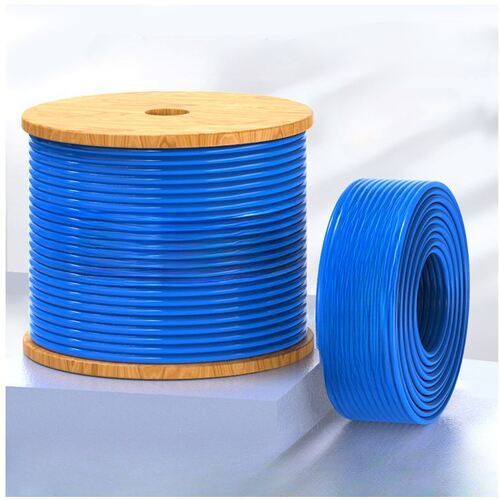

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Cable Bare Copper Twisted Core PVC Jacket Reel Box Blue >305m

  • Conductor Construction(mm) 1/0.508±0.005
  • Material Bare Copper
  • Cabling OD (mm) 0.508
  • Insulation Material HDPE
  • OD(mm) 0.90±0.05
  • Avg. Thickness (mm) 0.18
  • Color 1、2、3、4
  • Cores Twisted Yes
  • Drain Construction(mm) -----
  • Material -----
  • Al Constructive Side -----
  • Overlap Rate -----
  • Mylar Overlap Rate -----
  • Assemble Cabling OD (mm) 5.00 (Ref.) + Filler
  • Mylar Overlap Rate -----
  • Al Constructive Side -----
  • Drain Construction(mm) -----
  • Material -----
  • Braid Construction(mm) -----
  • Material -----
  • Coverage -----
  • Jacket Material PVC (Bright)
  • OD(mm) 6.20±0.20
  • Avg. Thickness (mm) 0.6
  • Color BLUE (PVC001-6027)PT287C
  • Jet Print Color BLACK
  • Electrical Characters:
  • 1. Voltage Rating: 30V Temperature Rating: 60℃
  • 2. Dielectric Strength: AC-500V/MIN
  • 3. Insulation resistance: 100M (OHMS * KM MIN at 20℃)
  • Physical Characters:
  • Test Object Jacket
  • AWG 24





(CAT6A-EXT350BLUSH)

12
SKU CAT6A-EXT350BLUSH
Model # CAT6A-EXT350BLUSH
Barcode # 9341756019986
Brand 8ware
