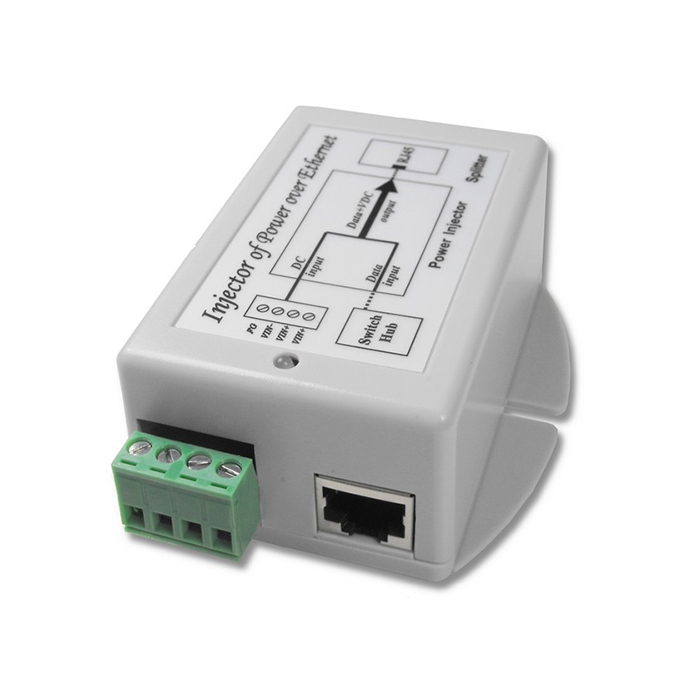

The VSPOEINJDCV2 is the PoE solution for high-power cameras, converting any voltage from 9~36VDC and outputting at 48VDC

Features:

• Input Voltage 9-36VDC; Output 48VDC
• 24W power output
• Integrated Gigabit PoE inserter
• Integrated PoE injector
• Short circuit, overcurrent & overvoltage protection
• High operating temperature
• Removable wire terminal input for up to 12AWG wires

Specifications

  • DC Input Voltage 9VDC ~ 36VDC
  • DC Output Voltage   (+/-2.5%)48VDC
  • Dimensions 85 x 76 x 36mm
  • Efficiency (min) 75%
  • EMC Standards FCC Class B NE55022 Class B
  • Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
  • Line Regulation 1%
  • Load Regulation 5%
  • Noise 1%
  • Operating Environment -30 to +60°C / 90%RH (Max)
  • Output Connector RJ45 (Shielded)
  • Output Current (max) 0.35A
  • Output Power (max) 24W
  • Ripple 1%
  • Safety Standards UL1950, CSA 22.2 &TUV EN60950
  • Self Consumption Power 1W
  • Storage Temperature -40 to +80°C
  • Weight 0.13kg

(VSPOEINJDCV2)

SKU VSPOEINJDCV2
Model # VSPOEINJDCV2
Brand VIP Vision
