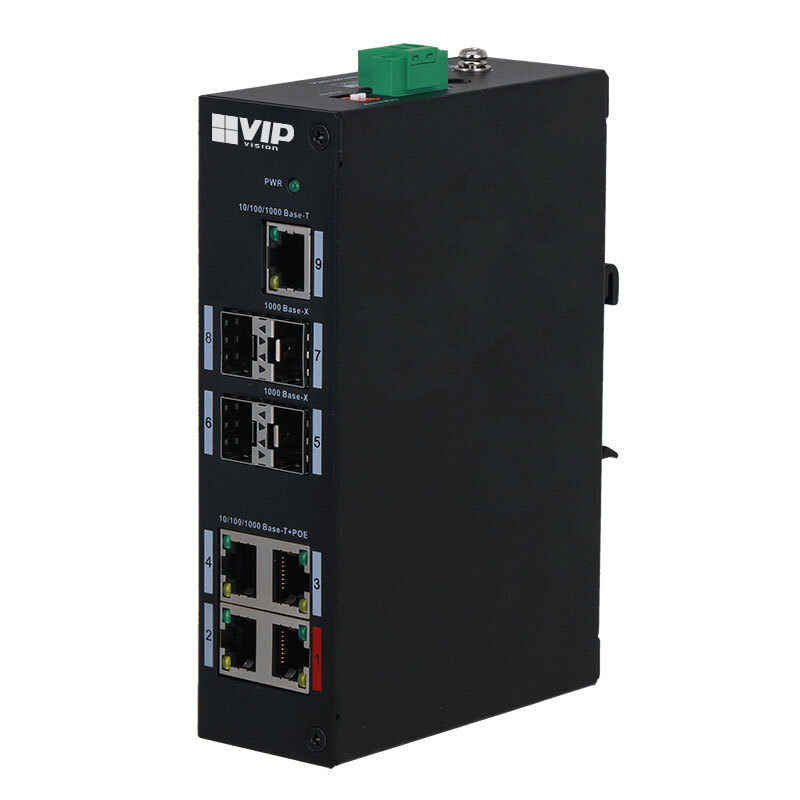

The VSETH-SW9GF2 is a 9-port Gigabit Ethernet switch designed for integrating with fibre-optic network infrastructure. Connect IP devices including surveillance, telephones, access points and more to fibre backbone with multiple gigabit SFP & Ethernet ports. It is ideal in connecting large facilities such as school & university campuses. This model features 4 ports of PoE.

Product Features:

• 4 x Gigabit 1000Mbps PoE ports
• 4 x Gigabit 1000Mbps SFP fibre ports
• 1 x Gigabit 1000Mbps uplink port
• Total PoE power load up to 120W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Full metal enclosure for professional appearance
• Lightning overvoltage protection up to 4kV
• Electrostatic discharge protection up to 8kVW
• Operates in extreme temperatures from -30°~65°C

Specifications

Switch Specification

• Ports : 9 ports
• Speed : Gigabit 10/100/1000
• Device Ports : 4 x 10/100/1000 Base-T (PoE)
• Uplink Ports : 4 x 1000 Base-X / 1 x 10/100/1000 Base-T
• Switching Capacity : 33Gbps
• Packet Forwarding Rate : 13.39Mpps
• Exchange Mode : Store & forward

Power over Ethernet

• PoE : Yes
• PoE Protocol : IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt
• Switch Power Load : Port 1 ≤90 W, Port 2-4 ≤30W, Total ≤120W

Management

• Switch Management : Unmanaged
• MAC Address Capacity : 4K
• Virtual LAN : N/A
• Network Time Protocol : N/A
• Spanning Tree Protocol : N/A
• Port Aggregation : N/A
• Port Mirroring : N/A
• LLDP : N/A
• DHCP : N/A
• Extend Mode : N/A
• Flow Control : N/A
• Security Features : N/A
• System Maintenance : N/A
• Quality of Service : N/A
• Network Management : N/A
• PoE Management : N/A

Environmental

• Input Power : 48 ~ 57VDC
• Lightning Protection : Common Mode: 4KV / Differential Mode: 2KV
• Mounting Options : DIN rail
• Operating Environment : -30°C~65°C / RH10%~90%
• Dimensions : 150 x 110 x 42mm

Other

• ESD Protection : Air Discharge: 8kV / Contact Discharge: 6kV
