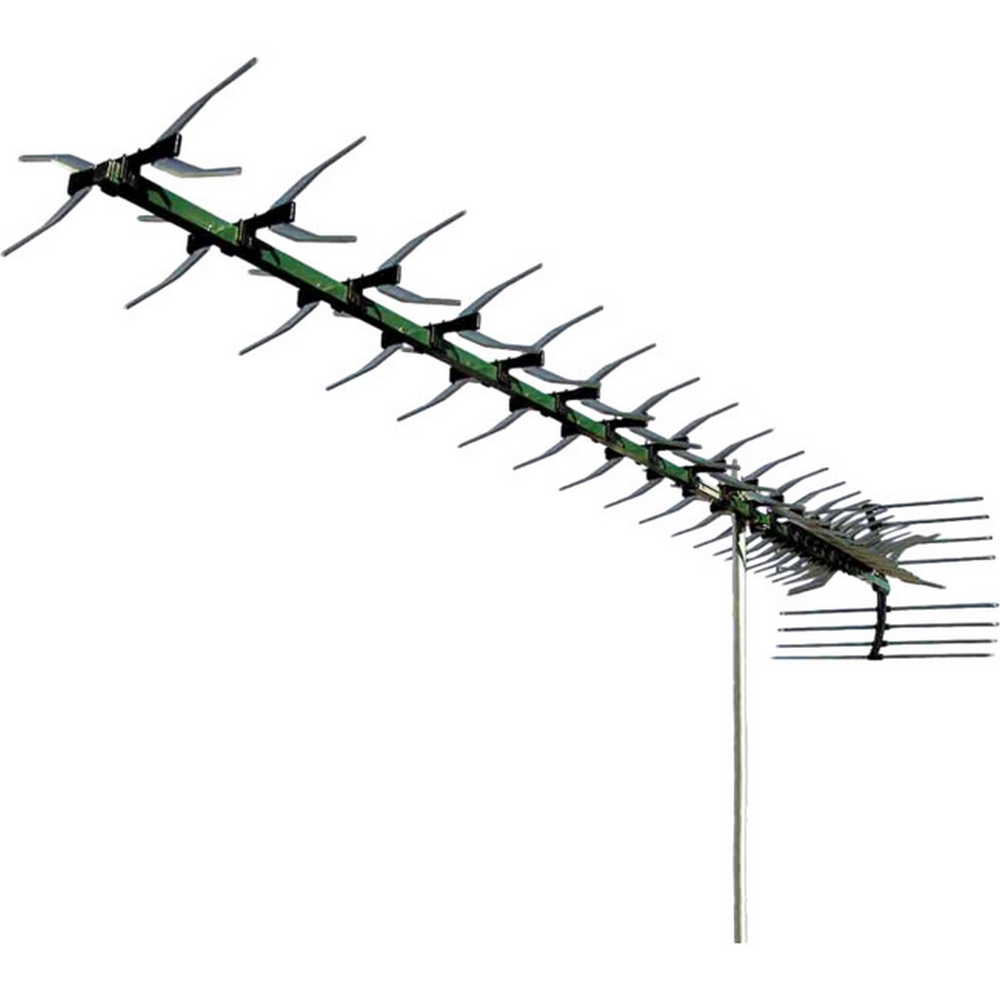

Matchmaster premium VHF/UHF & Combination antennas, suitable for metropolitan & rural areas using VHF, UHF or combination broadcasts. Heavy duty construction with ‘F’ type baluns to improve signal quality. Various models can beused in horizontal or vertical broadcast areas. Matchmaster antennas feature built in Low Pass Filters either at 230MHz,652MHz or 694MHz depending on model to prevent 4G (LTE) interference.

Features and Benefits

  • 694MHz low pass 4G LTE filter > 30dB at 750 MHz
  • 91 element X type element
  • Australian Made
  • 16dB Maximum gain
  • Receives UHF Channels 28-51

Specifications

Elements 91
Band UHF
Channels (28-51)
Frequency Range 520-694MHz
Maximum Gain 16dB
Front/Back Ratio >26dB
Half Power Beam Width Horizontal 30°
Half Power Beam Width Vertical 33.3°
Wind Loading Horizontal 109N
Boom Length 2238mm (Split Boom)
Balun Type 'F' Type PCB
Packing Type/Unit Inner
Outer
1
5

(02MM-DG91)

12 Months

SKU 02MM-DG91
Model # 02MM-DG91
Barcode # 9322190002185
Brand MATCHMASTER
Unit Of Measure Each
Assembled Width 2.950m
