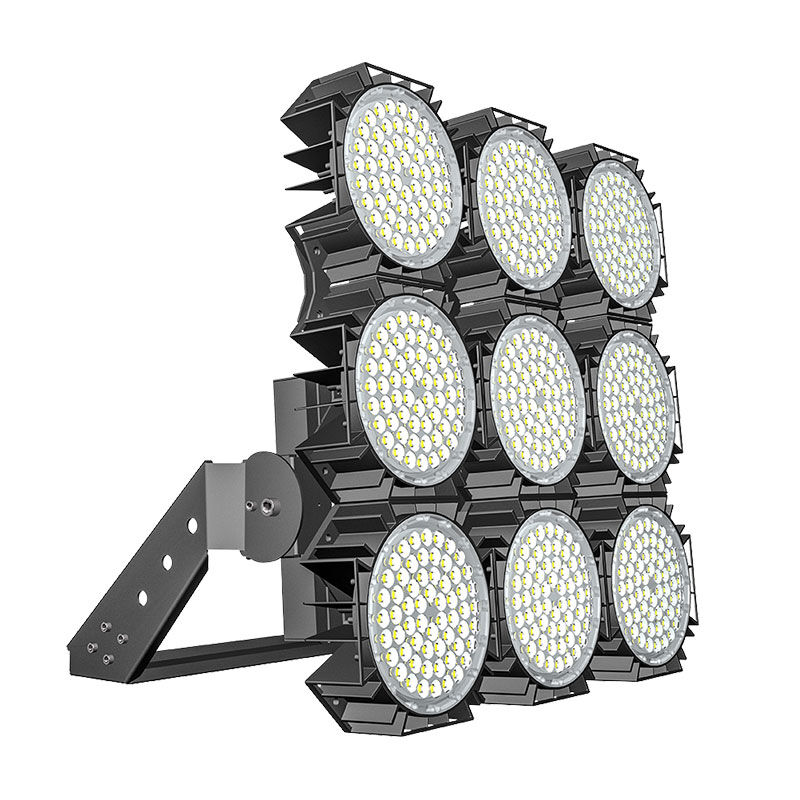

ENSA™ LFL-G2 Series LED flood lights are a flexible range of large scale lighting solutions. These high power lights feature dual bracket & light tilt adjustment for a smooth installation process, and are ideal in sports lighting applications and in large outdoor production and carpark facilities.

LFL-G2 Series flood lights are incredibly reliable with a rated lifespan up to 100,000 hours, and have versatile dimming options with both DALI and DMX control standards.

Product features:

• 960W LED flood light with 60° x 100° beam angle
• 153,600lm light output @160lm/W
• 9 x light modules with adjustable tilt
• 180° adjustable mounting U-bracket
• 5000K cool white colour temperature
• IP67/IK10 weather & vandal resistant aluminium housing
• Long lifespan LED lighting: rated up to 100,000 hours

Specifications

Optical

• Light Output - 153600lm
• Luminous Efficacy - 160lm/W
• Colour Temperature - 5000K
• Colour Rendering Index - >80
• Beam Angle - 60° x 100°
• Light Decay - <15% at 40,000 hours
• Rated Lifespan - >100,000 hours

Electrical

• Power Consumption - 960W
• Input Voltage - 100~277VAC, 50/60Hz
• Power Factor - > 0.95
• Dimmable - Yes (DALI / DMX)
• Motion Activated - N/A

General

• Ingress Protection - IP67
• Plug / Socket / Base - Unterminated
• Reflector / Diffuser - Polycarbonate lens
• Housing Adjustments - 90° light tilt, 180° U-bracket tilt
• NSW ESS Accepted - No
• Operating Environment - -20~55°C
• Dimensions - 690 x 690 x 75mm

Other

• Ambient Sensor - N/A
• Cable Lead Length - 650mm
• Vandal Protection - IK10
