Overview

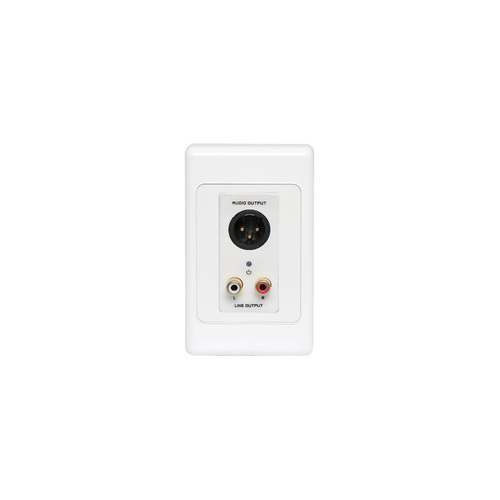

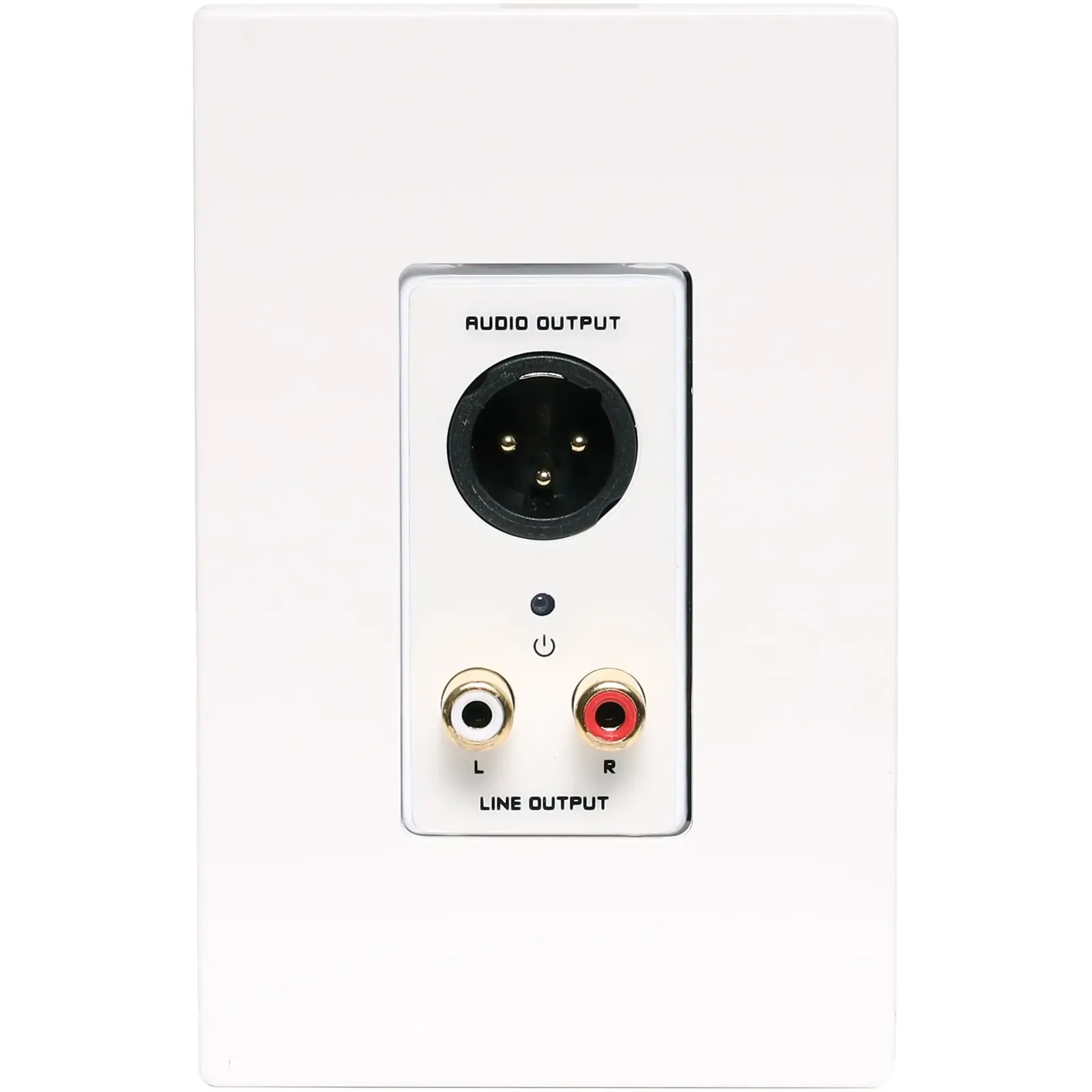

• This 3 pin XLR Balanced and Stereo RCA output wallplate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).

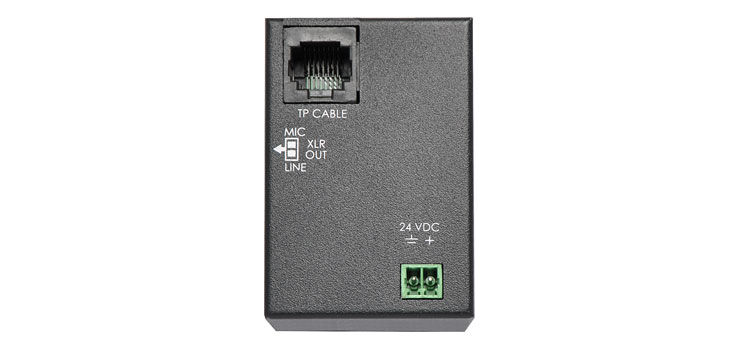

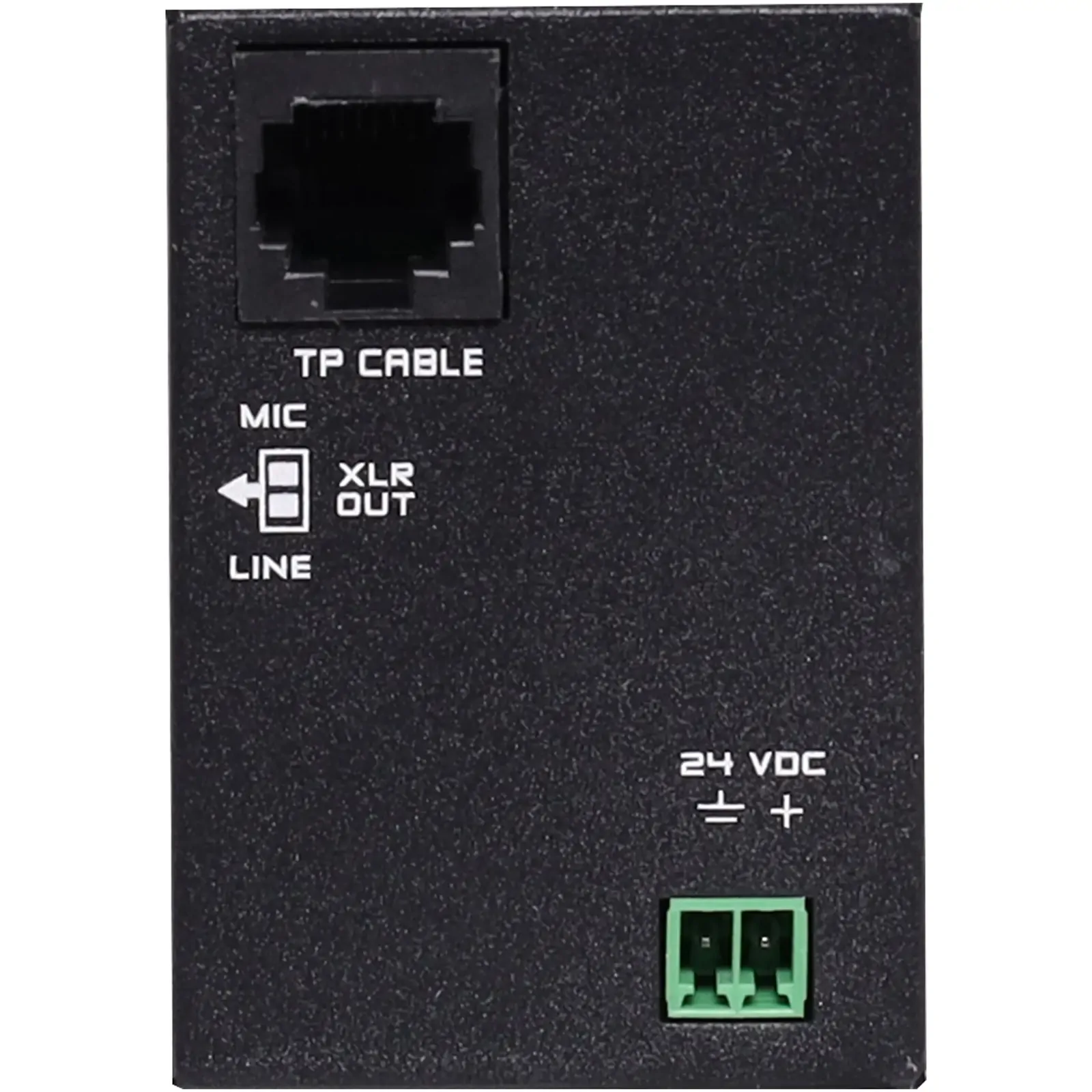

• This wallplate provides XLR output and RCA jack outputs, and receives the signal from three pairs of CAT5 cable, then routs one to XLR output and two to L/R channel of RCA outputs. Before the installation, Please set MIC/LINE switch depends on the output level of XLR connector. It can be powered from a 24VDC power supply by using the rear panel terminal block, and the power also could be provided to all the connected modules by Pair D of UTP CAT5 cable. When the power is supplied to this module, the front panel LED will light on.
• Distributed audio signals over UTP cabling are becoming increasingly widespread in large building installations and multi-function venues. This product, used together with the rest in the range provide a connected solution for local zone inputs, feeding signals back to centrally located zone amplifiers. The system uses a proprietary standard called CSP which can be easily converted to the widely adopted Dante standard using the A 4830/A 4831 converter boxes. Powered by 24V DC input.

Features

• XLR / RCA Audio Output,
• Gain Switch XLR only
• Signals from Pair A(XLR), Pair B(L) and Pair C(R).
• Power can be linked to the removable terminal
• Blue LED Indicates Module is Powered

 Specifications

• Input: CSP UTP RJ45
• Connection: RJ45
• Twisted Pair Used: A, B, C pairs
• Outputs: 150 ? Balanced; 100 ? Unbalanced
• Output Connector: XLR (Balanced Mic or Line, switchable); RCA Jacks
• Output Level: XLR: -45 dBu Mic or +4 dBu Line Level
• RCA: -10 dBV
• THD+N: < 0.005%
• Frequency Response: 20 Hz ~ 20 KHz
• Crosstalk: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
• Power Requirement: 24 VDC @ 55 mA; 155 mA (Max.)
