Overview

• This Stereo RCA Jack output wallplate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).

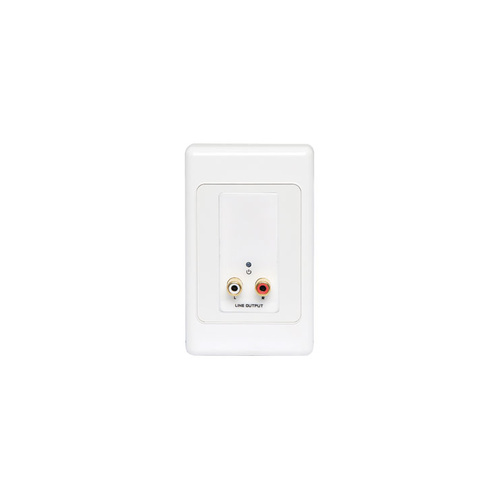

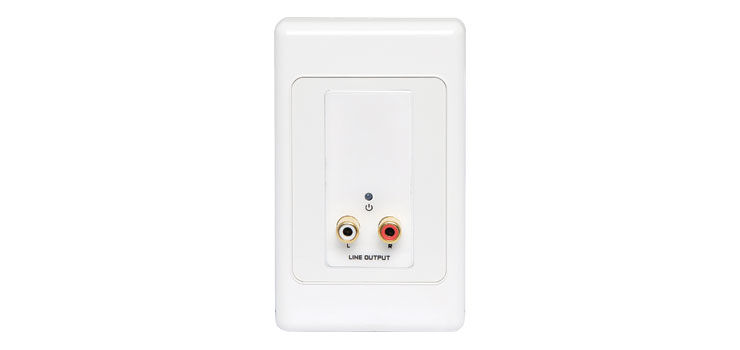

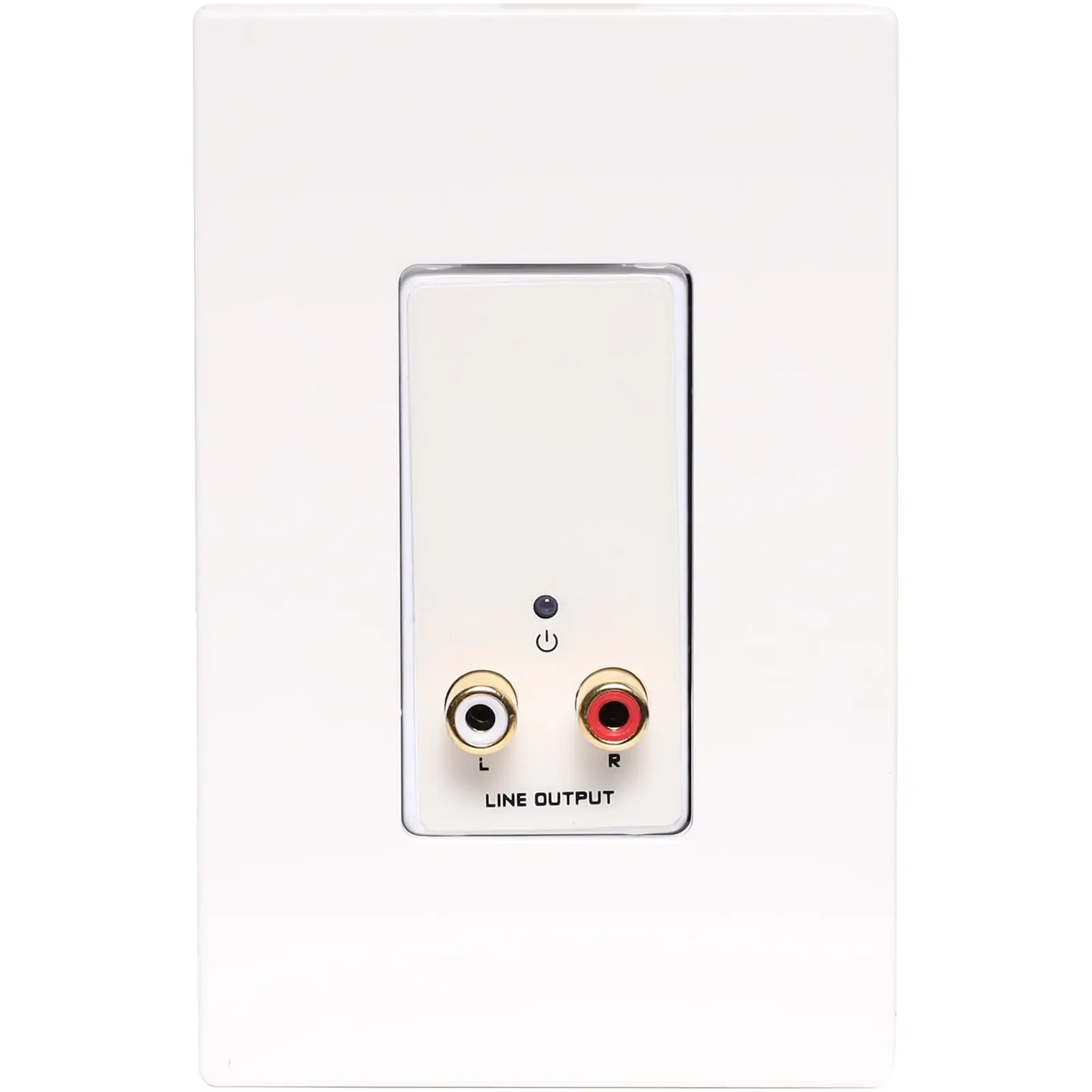

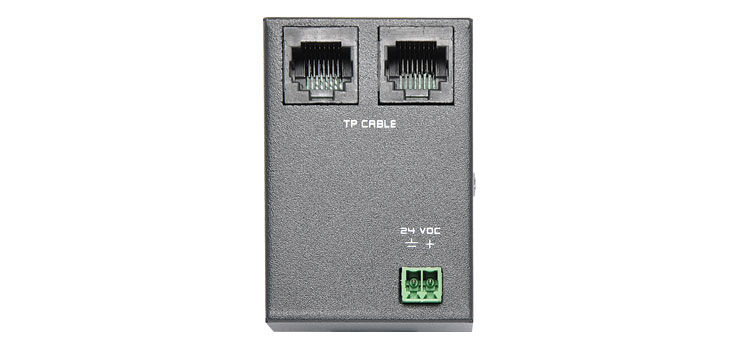

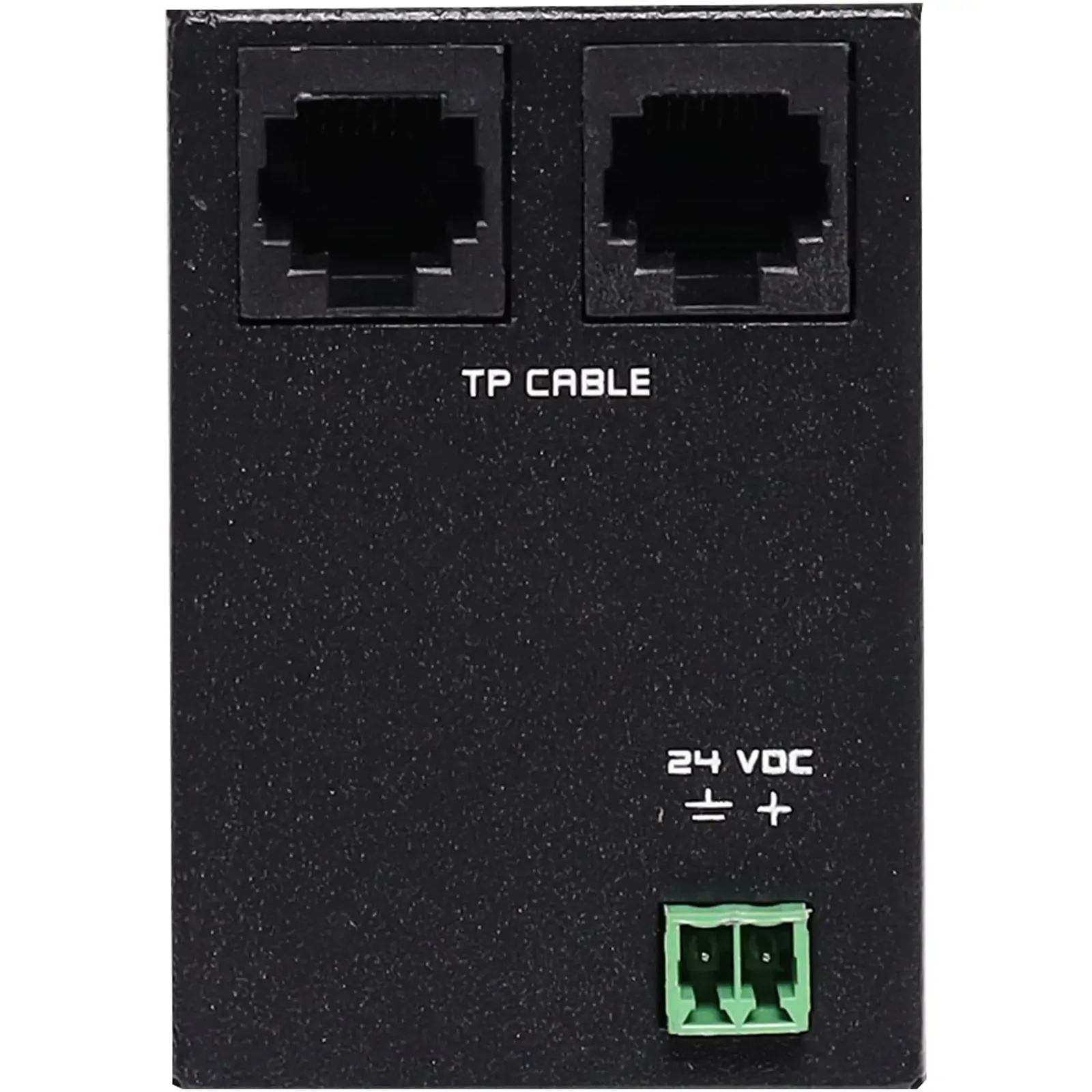

• This wallplate provides RCA jacks on the front panel, and receives the signal from Pair B, C of UTP CAT5 cable. The signal from Pair B routs to RCA(L) and Pair C routs to another RCA(R). There is an additional RJ-45 jack on the back panel, to connect with other CSP receiver modules, so all three audio pairs A,B,C and power pair D could pass through both RJ-45 jacks. And the system allows the chain connection up to 10 receiver modules.
• It could be powered from a 24VDC power supply by using the rear panel terminal block, and the power also could be provided to all the connected modules by Pair D of UTP CAT5 cable. When the power is supplied to this module, the front panel LED will light on.
• Distributed audio signals over UTP cabling are becoming increasingly widespread in large building installations and multi-function venues. This product, used together with the rest in the range provide a connected solution for local zone inputs, feeding signals back to centrally located zone amplifiers. The system uses a proprietary standard called CSP which can be easily converted to the widely adopted Dante standard using the A 4830/A 4831 converter boxes.
• Powered by 24V DC input.

Features

• Stereo RCA Jack Audio Outputs
• Signals from Pair B(L) and Pair C(R).
• Source Loop
• Power can be linked to the removable terminal
• Blue LED Indicates Module is Powered
• Daisy chain topology

Specifications

• Input: CSP UTP RJ45
• Connection: RJ45
• Twisted Pair Used: B(Left), C(Right) pairs
• Outputs: 100 ? Unbalanced
• Output Connector: RCA Jacks
• Output Level: RCA: -10 dBV
• THD+N: < 0.005%
• Frequency Response: 20 Hz ~ 20 KHz
• Crosstalk: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
• Power Requirement: 24 VDC @ 55 mA; 155 mA (Max.)

  *Specifications are subject to change without notice.
