Overview

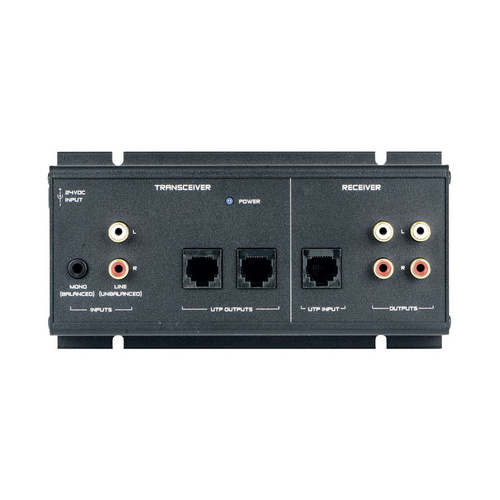

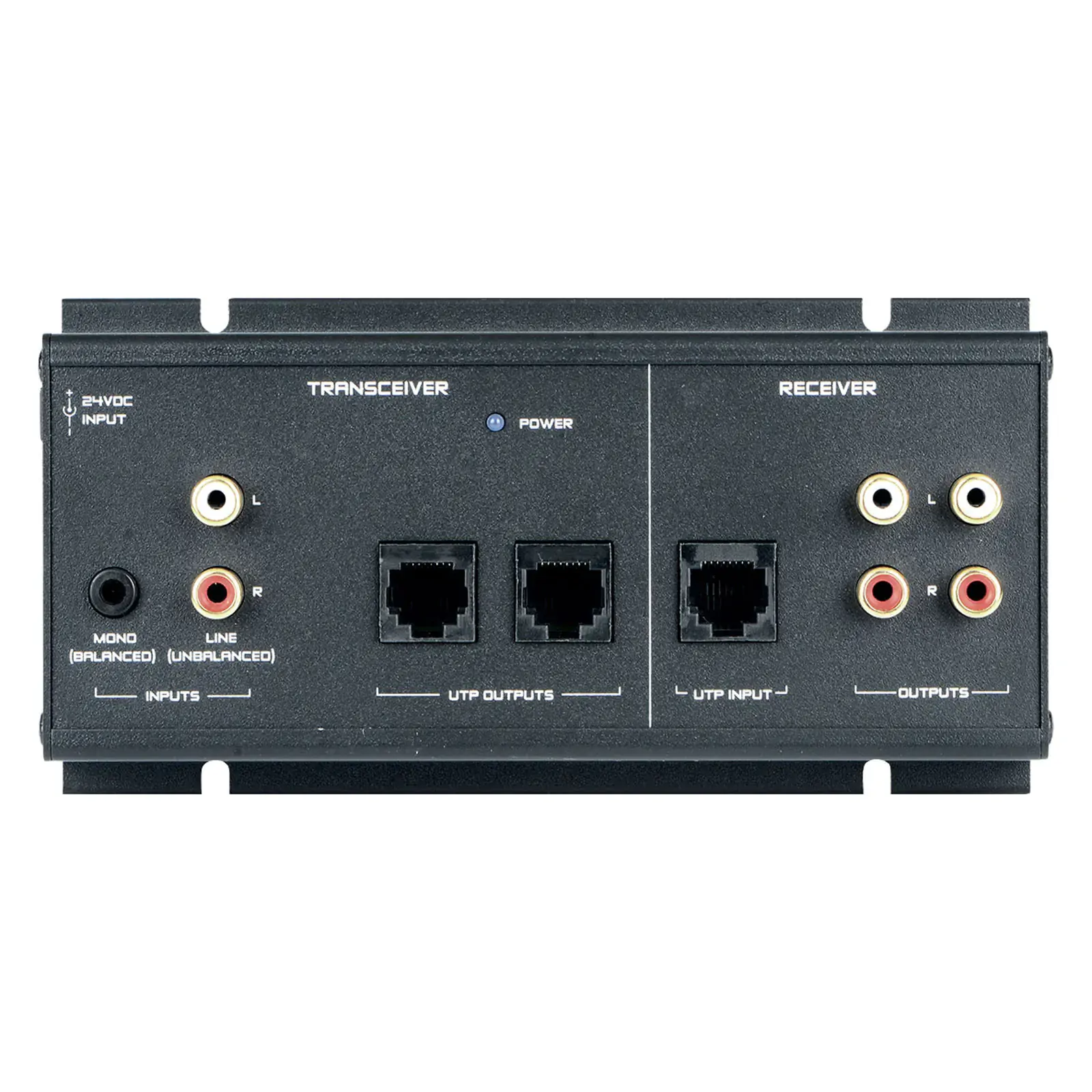

This Local Input/Output Hub Interface Box is a compact system hub for interfacing input and output wallplates together with existing zone audio amplifiers and audio sources. Allows connection for up to 2 UTP output wallplates and a single UTP input wallplate. Two stereo RCA outputs provide connection to line input on external amplifiers.

Features

  • Design Transceiver and Receiver in one Module
  • Provides the Power to Connected Receivers
  • Sends Left and Right Audio Channels
  • Unbalanced Stereo RCA Input from Audio Source
  • Balanced 3.5 Jack Audio Input from Mono Source
  • Audio Signal Goes to two UTP RJ45 Outputs
  • CSP Receiver Compatible with all 2 pair transceiver wallplates
  • Two RCA stereo unbalanced outputs
  • L (Left) Output Goes to Pair B; R (Right) Goes to Pair C
  • Daisy chain topology
  • AFC Design (AFC: Auto Feedback Gain Circuitry)

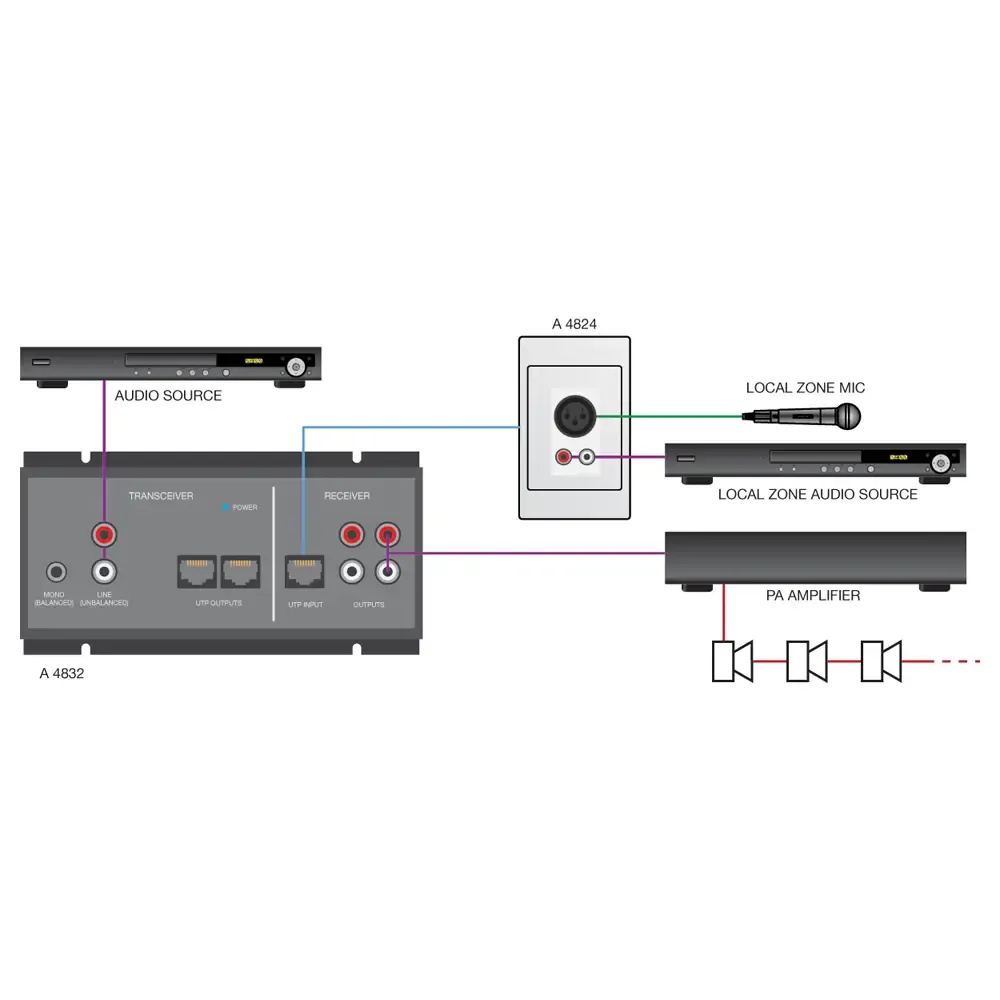

Purple - Stereo RCA cabling
Red - 100V line speaker cabling
Blue - UTP Cat 5e/6 data cabling
Green - Balanced audio cable



(A4832)

SKU A4832
Model # A4832
Barcode # 9321758225073
