Overview

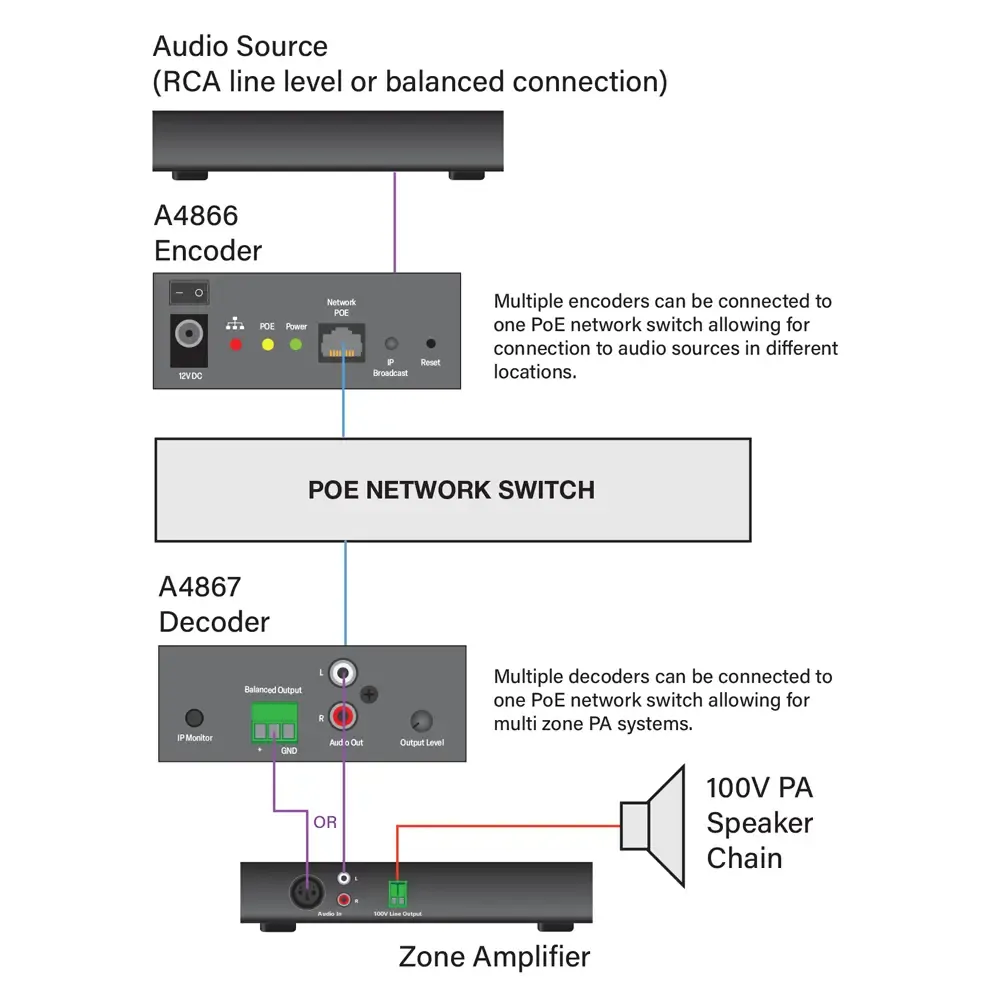

The Merlaud IP Communicator balun system provides an easy way to send balanced audio line signals over network IP systems. This allows installers to connect an encoder and decoder to an existing ethernet network system and stream high quality balanced line audio to local zone PA systems. An example of how this may be used is within a school, where a centralised PA system feeds local zone amplifiers in different buildings across the facility. This flexible point to point system can be used in new or existing systems where a balanced line level signal is required to be sent over long distances.

For a complete system an encoder (A4866) and decoder (A4867) will be required and set up will be required via a web portal which allows individual configuration of each encoder and decoder in a system. These can be used one to one, or single encoder to multiple decoders, depending on installer requirements.

Balanced input is via 3 pin euroblock screw terminals. Stereo RCA's are provided should you need standard line level input. Volume level is adjustable directly on the encoder box.

Features

• Decodes balanced line level or stereo RCA inputs for streaming across an IP network (when used with A4866).
• Configurable IP addresses for each unit.
• Allows for multiple encoders and decoders on a network.
• Can be used with pre-existing UTP cabling - ideal for multi building facilities utilising local zone amplifiers for PA.
• Web portal set up.
• Local level adjustment.

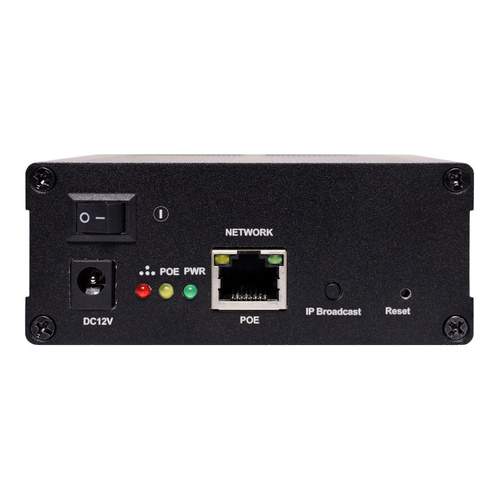

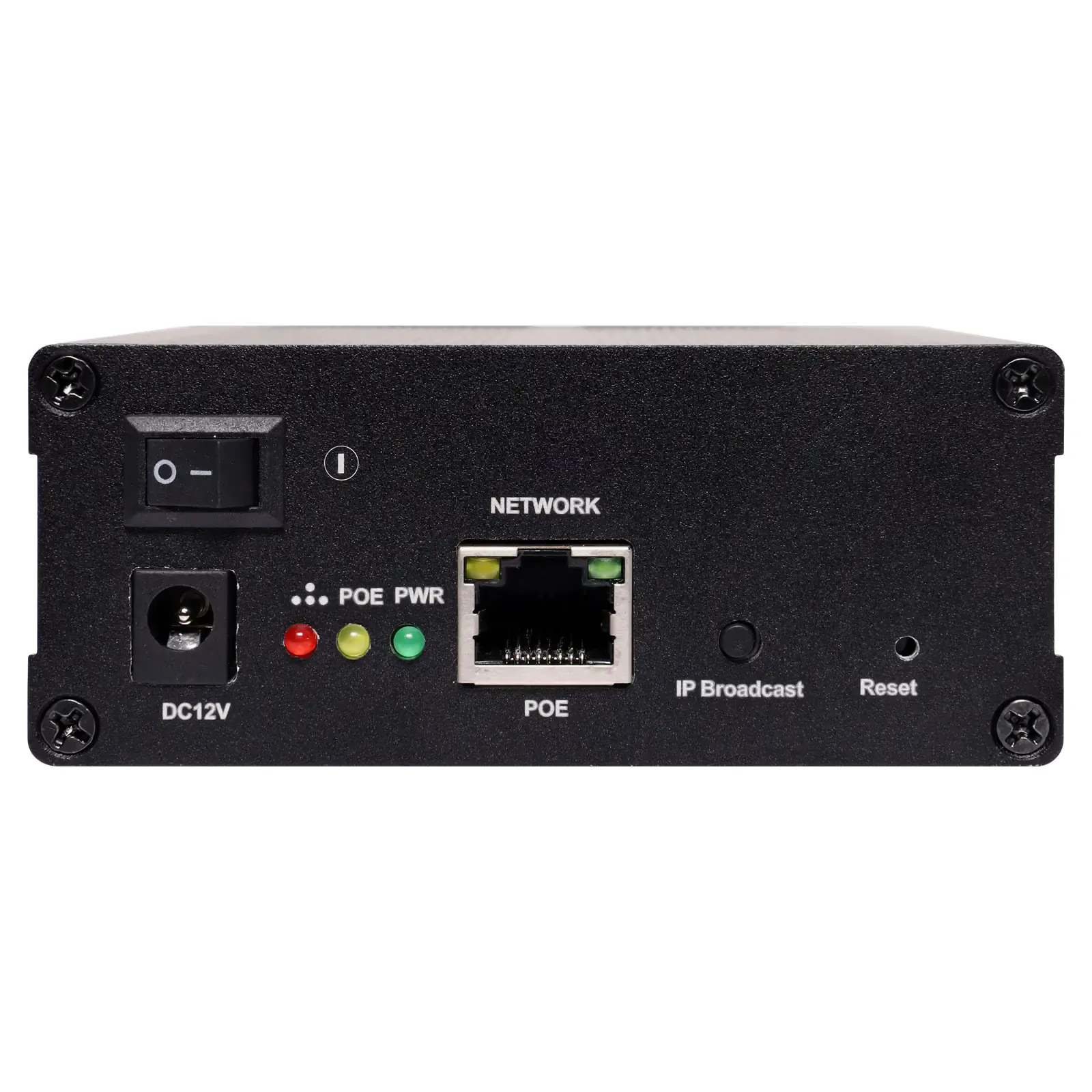

• Can be powered via PoE or local 12V DC plugpack.

Specifications

• Power: 12-24V DC input or PoE.
• Inputs: 3 pin euro block balanced line, stereo RCA.
• Line input max: 3200mV, internal resistance 3.3K ohms.
• Latency: <40ms

  *Specifications are subject to change without notice.
