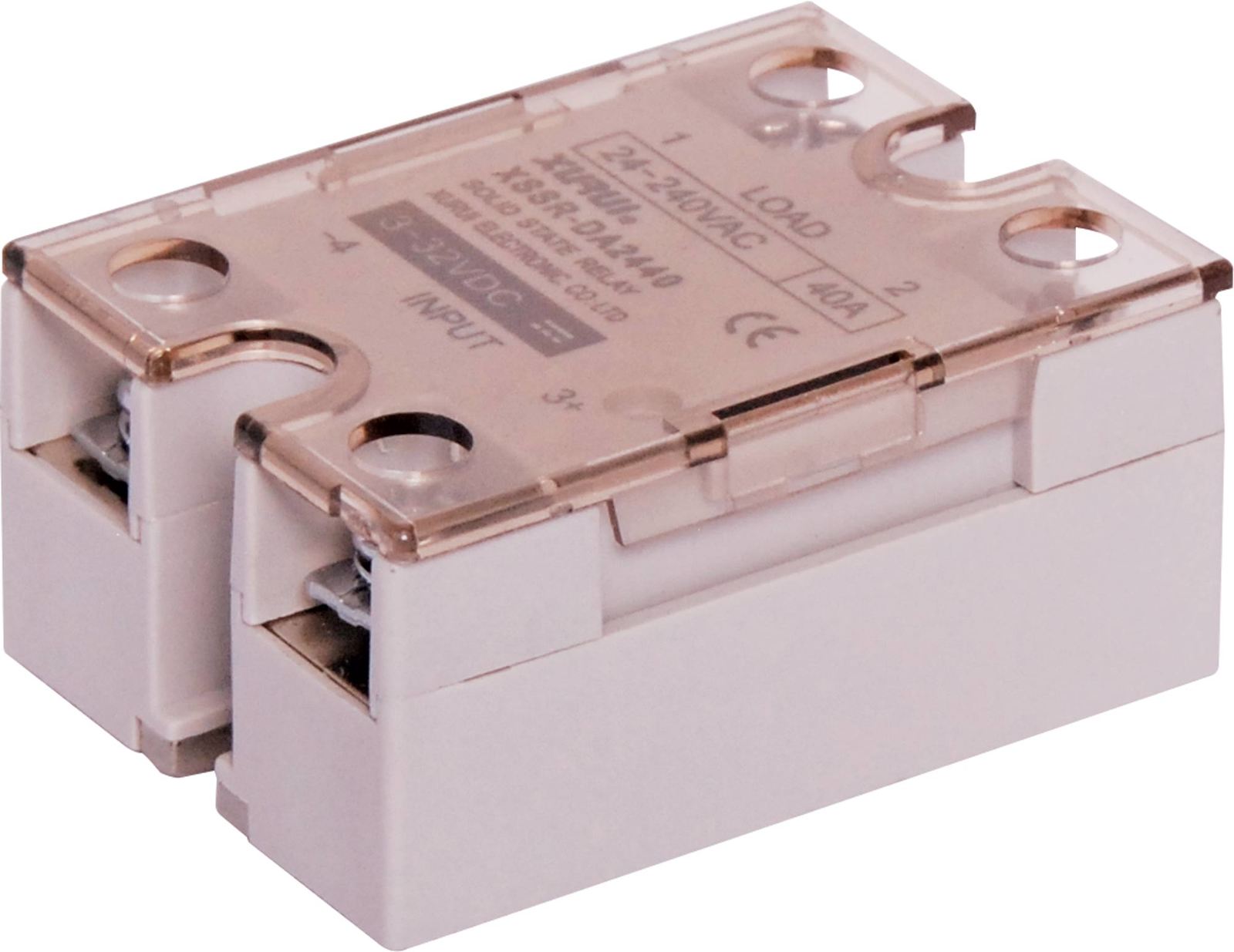

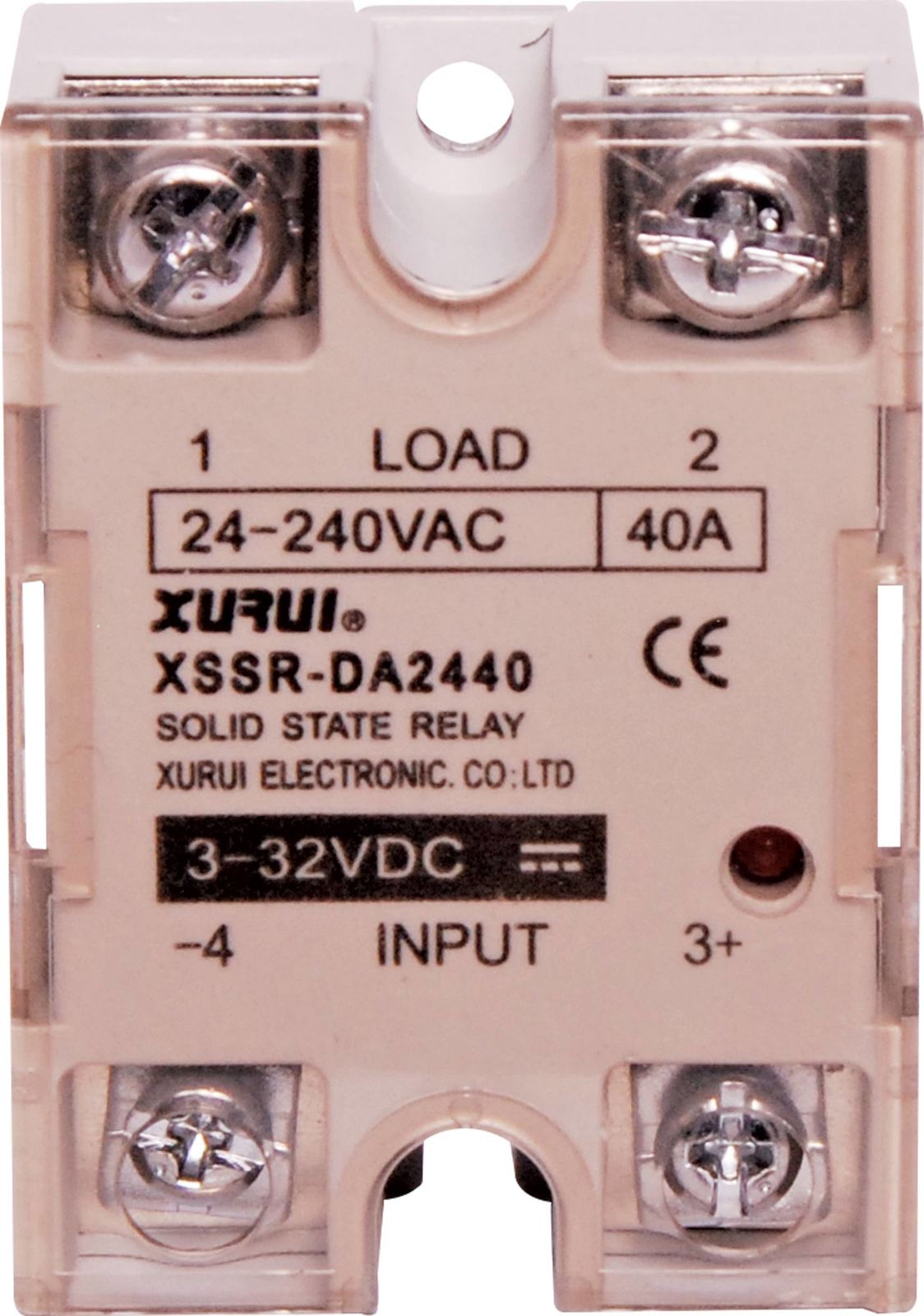

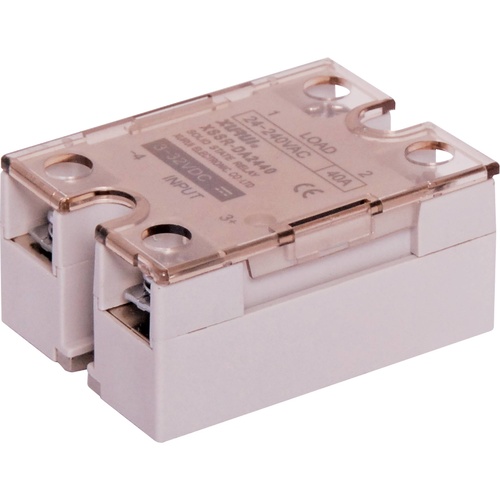

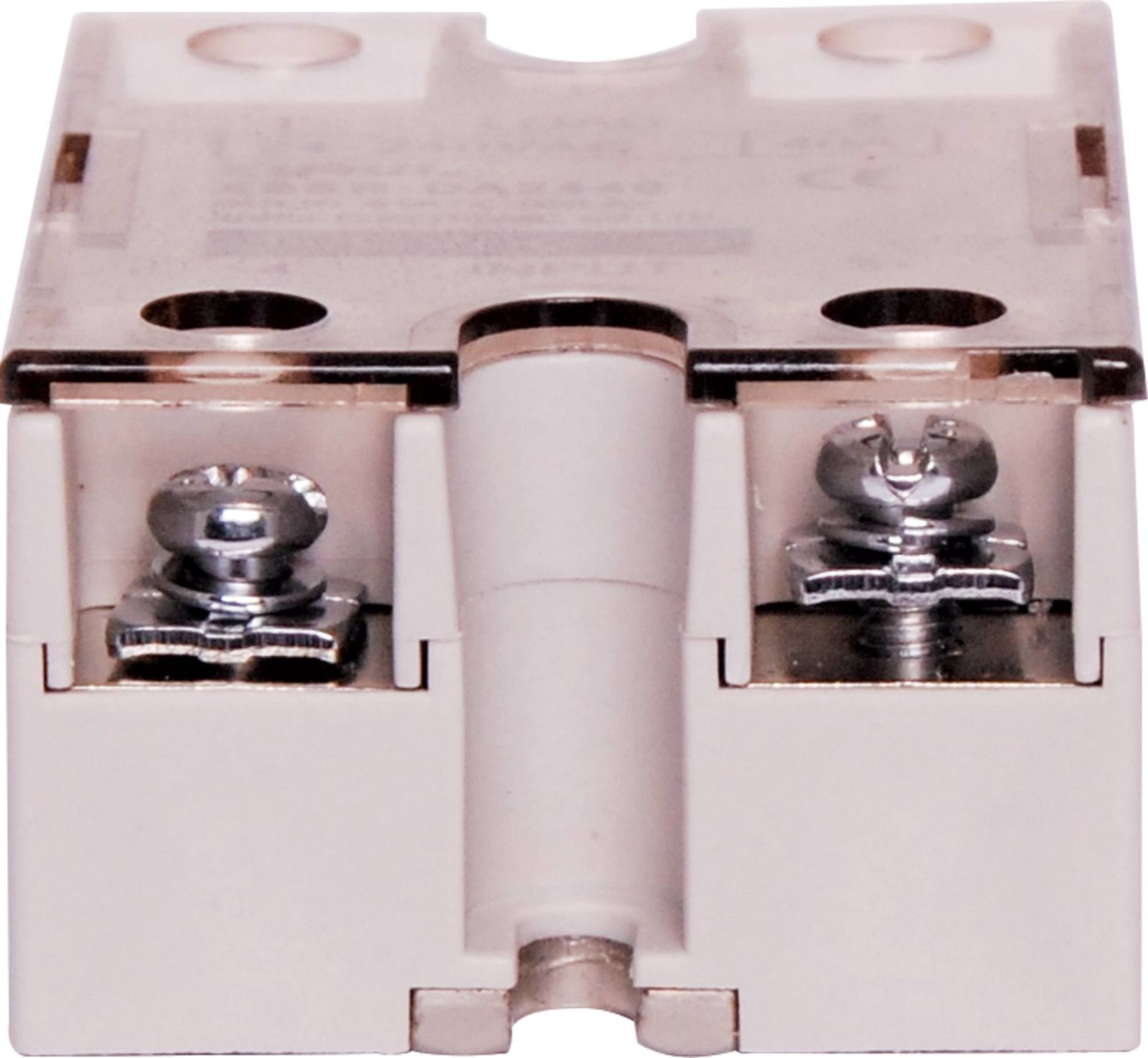

No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off. Switches AC only. 3-32V DC coil.

 Specifications

  • Control voltage: 3-32V DC
  • Control current: 6-25mA
  • Reverse voltage: 32V DC
  • Closing voltage: 1V DC
  • Opening voltage: 3V DC
  • Load voltage: 24-240V AC, 75-480V AC
  • Maximum load current: 5A-75A
  • Minimum load current: 0.08A
  • Breakover voltage: ≤1.6VAC
  • Output leakage current: ≤5mA
  • Withstand voltage: 2500V AC
  • Insulation resistance: >100MΩ
  • Switching time: <10mS
  • Frequency range: 50-60Hz
  • Load current safety factor: 50-60% resistive, 30-40% inductive

(S4416A)

12 months

SKU S4416A
Model # S4416A
Barcode # 9321758195253
Brand BOURNE
Unit Of Measure each
