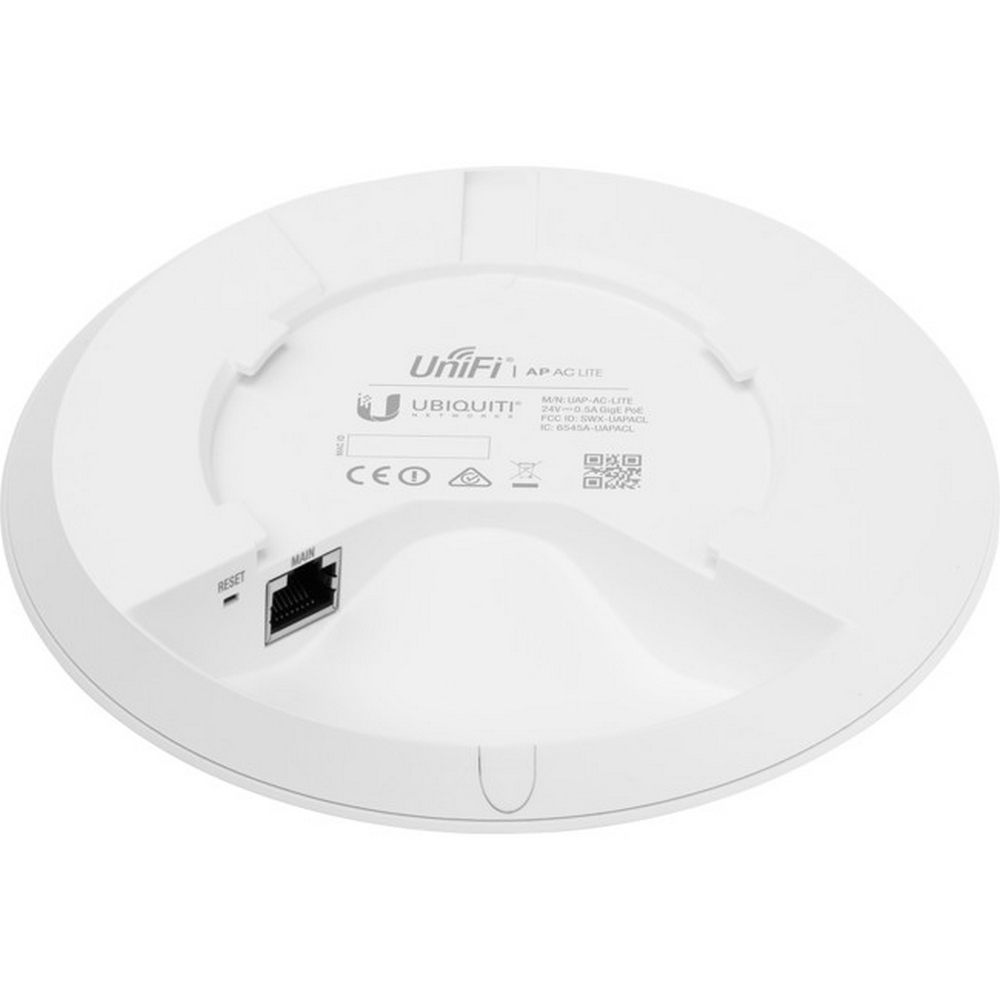

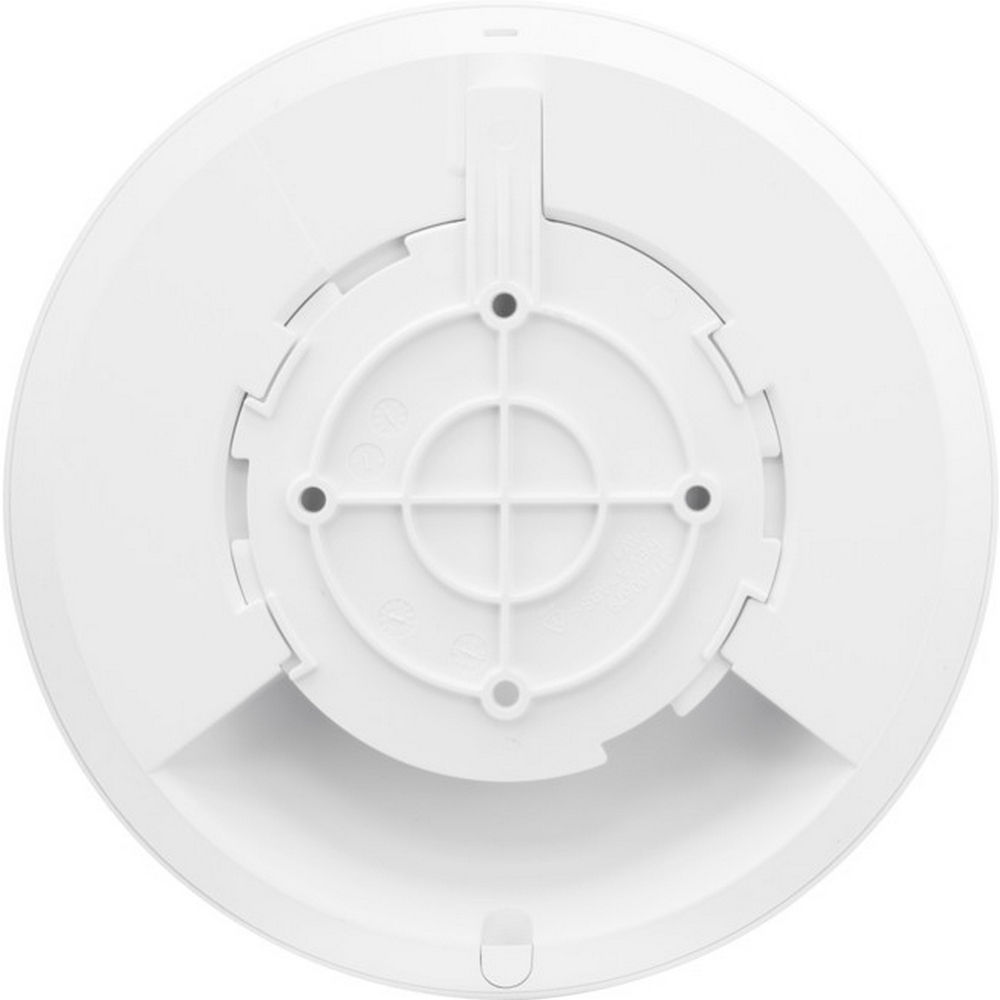

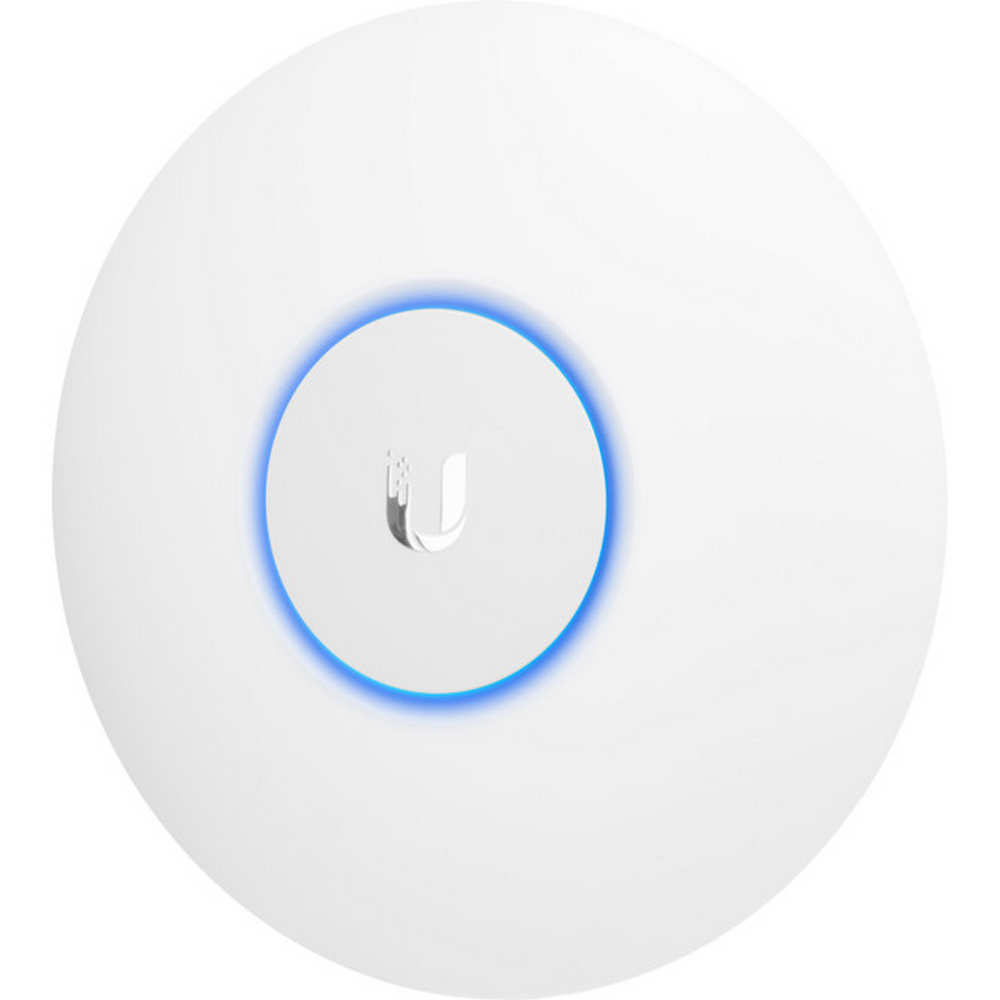

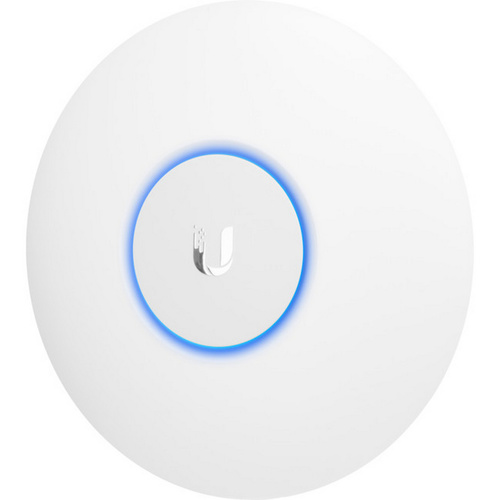

Ubiquiti Ultra-Compact Design UAP-AC-LITE 802.11ac Dual Radio Access Point

Features

UAP-AC-LITE 802.11ac Dual Radio Access Point

The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.

Dual-Radio Performance, Gigabit Speeds

The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’sdisruptive pricing strategy.

Sleek, Ultra-Compact Design

The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.

Designed for Optimal RF Performance: Thenewly redesigned UniFi Controller optimizes RF performance.

Scalable Enterprise Wi-Fi Management

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFivirtual control plane allows for unlimited scalability underone centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Specifications

UAP-AC-LITE
Dimensions	160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
Weight	170 g (6.0 oz)
With Mounting Kits	185 g (6.5 oz)


Networking Interface	(1) 10/100/1000 Ethernet Port
Buttons	Reset
Antenna	(2) Dual-Band Antennas, 3 dBi Each
Wi-Fi Standards	802.11 a/b/g/n/ac
Power Method	Passive Power over Ethernet (24V),(Pairs 4, 5+; 7, 8 Return)

Power Supply	24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption	6.5W
Maximum TX Power
2.4 GHz	20 dBm
5 GHz	20 dBm


BSSID	Up to Four per Radio
Power Save	Supported
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	Wall/Ceiling (Kits Included)
Operating Temperature	-10 to 70° C (14 to 158° F)
Operating Humidity	5 to 95% Noncondensing
* Only the single-pack of the UAP-AC-LITE includes a PoE adapter.

New UniFi Access Point Comparison

	UAP-AC-LITE	UAP-AC-LR	UAP-AC-PRO	UAP-AC-EDU
Dimensions	160 x 31.45 mm	175.7 x 43.2 mm	196.7 x 35 mm	287.5 x 125.9 mm
Environment	Indoor	Indoor	Indoor/Outdoor	Indoor
2.4 GHz Speed	300 Mbps	450 Mbps	450 Mbps	450 Mbps
5 GHz Speed	867 Mbps	867 Mbps	1300 Mbps	1300 Mbps
PoE Mode	24V Passive PoE	24V Passive PoE	802.3af PoE/802.3at PoE+	802.3at PoE+ Compatible
Ports	(1) 10/100/1000 Ethernet	(1) 10/100/1000 Ethernet	(2) 10/100/1000 Ethernet	(1) 10/100/1000 Ethernet
Instant Upgrade	No	No	Yes, standard UAP mount	No
