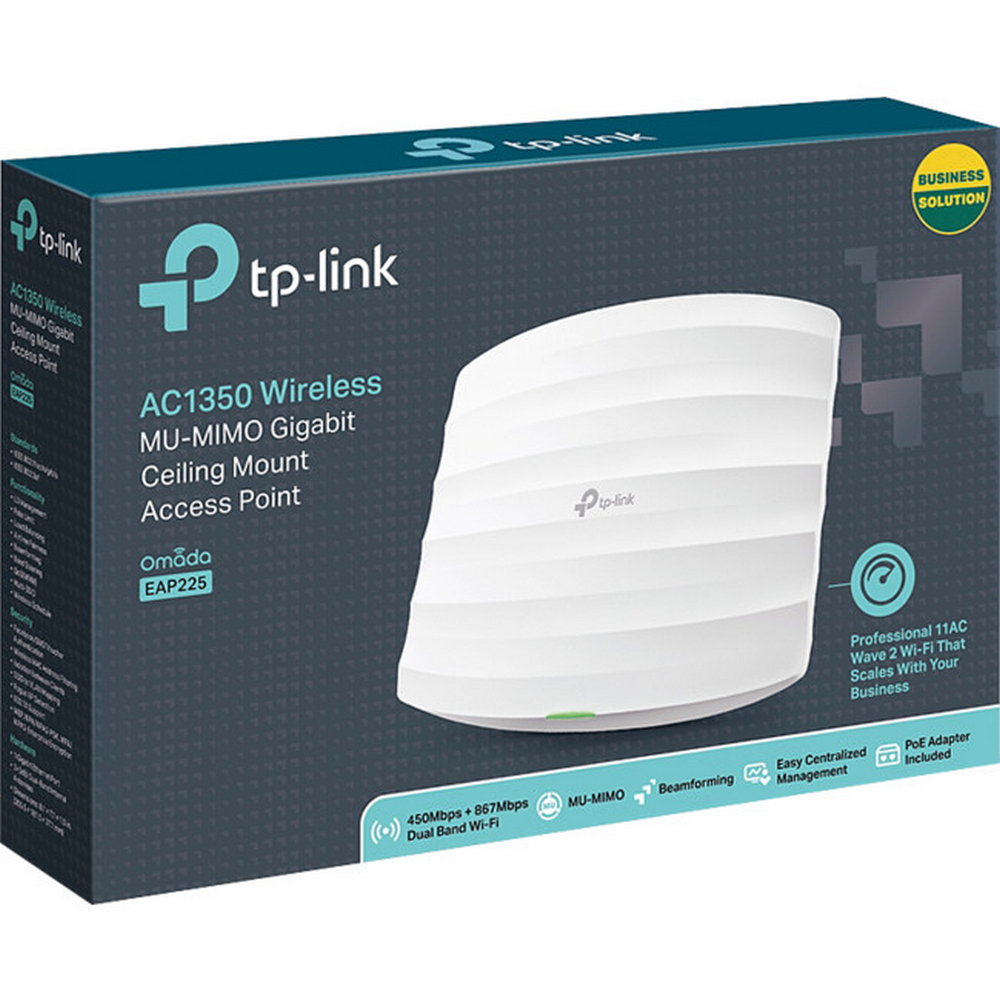

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Superior Wi-Fi Speeds with MU-MIMO Technology Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 V3 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Easy for Centralized Management Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There's no added cost and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further tosimplify connectivity and boost your business.

Multiple PoE Options for Easy Installation EAP225 V3 supports both 802.3af PoE and Passive PoEpower supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Unified Wi-Fi for Multi-user Business Environment The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.

Specifications

HARDWARE FEATURES

• Interface: Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
• Button: Reset
• Power Supply: PoE or External 12VDC / 1.5A Power Supply
• Power Consumption: 10.15 W
• Antenna Type
  • Internal Omni
  • 2.4GHz: 2* 4dBi
  • 5GHz: 2*4dBi
• Mounting: Ceiling /Wall Mounting (Kits included)
• Physical Security Lock: Kensington Lock Slot
• Watch Dog: Yes

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Signal Rate
  • 5GHz:Up to 867Mbps
  • 2.4GHz:Up to 300Mbps
• Wireless Functions
  • Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Band Steering
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
• Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,
  • WPA-PSK / WPA2-PSK
• Transmission Power
  • CE:
    • <20dBm(2.4GHz)
    • <23dBm(5GHz)
  • FCC:
    • <27dBm(2.4GHz & 5GHz)

MANAGEMENT

• EAP Controller Software: Yes
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• System Logging Local/Remote Syslog: Local/Remote Syslog
• Telnet: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents
  • AC1200 Wireless Dual Band Gigabit Access Point EAP225
  • Power Adapter
  • Mounting Kits
  • Installation Guide
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
• Environment
  • Operating Temperature: 0?~40? (32?~104?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
