Composite AV + IR over CAT5 Wall Plate Extender Kit

NEW: Now with easy RJ45 socket connection.

Twisted pair extenders allow long distance distribution of audio and video using inexpensive CAT5e cables. The PRO1199 extends composite video and stereo audio signals up to 100 meters.
Using basic or shielded Cat5 or Cat6 cables the PRO1199 kit allows economical long distance distribution of composite video + stereo audio, as well as remote controlling devices through the integrated IR repeater.

Features:

• Deco style wall plates
• Video: Composite Stereo Left & Right
• 3x RCA to RJ-45 socket
• CFL friendly – Allows installation with CFL lighting
• Cord Length – 3 m on IR emitter and IR Reciever
• Confirmation LED on IR receiver

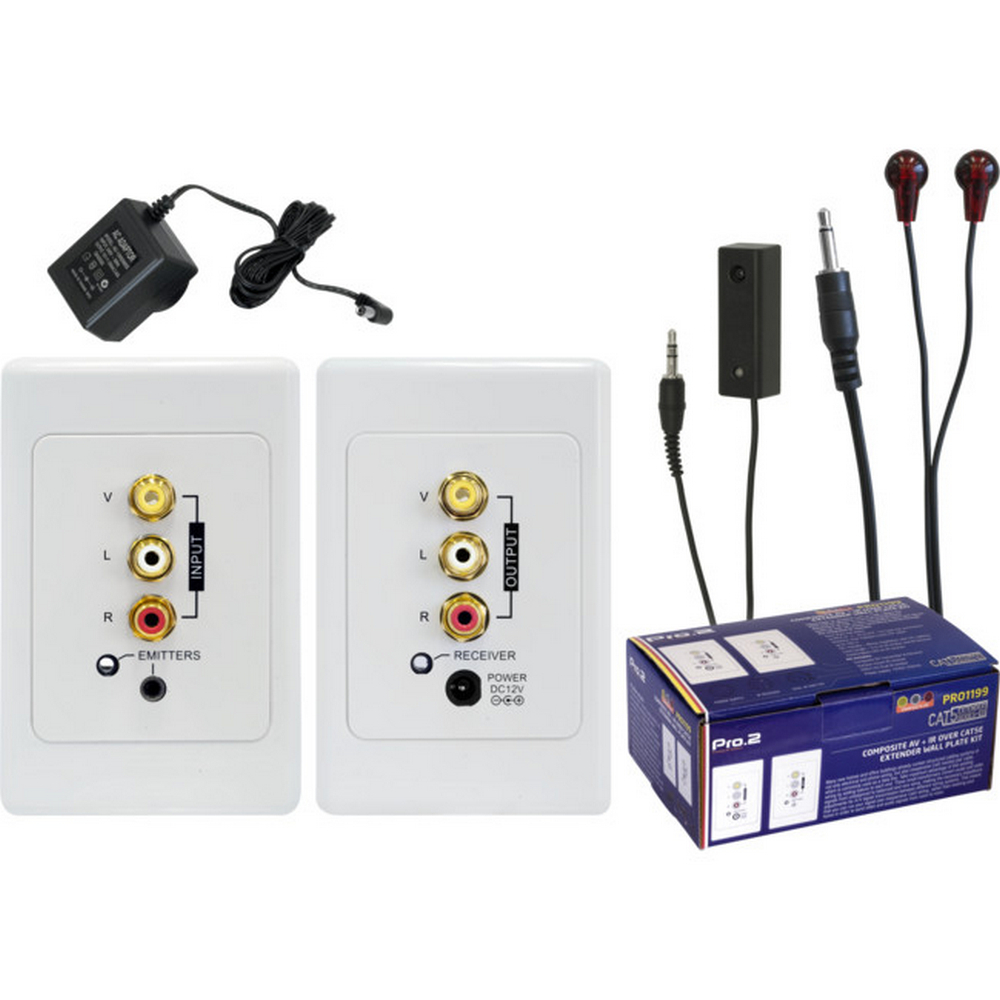

Kit includes:

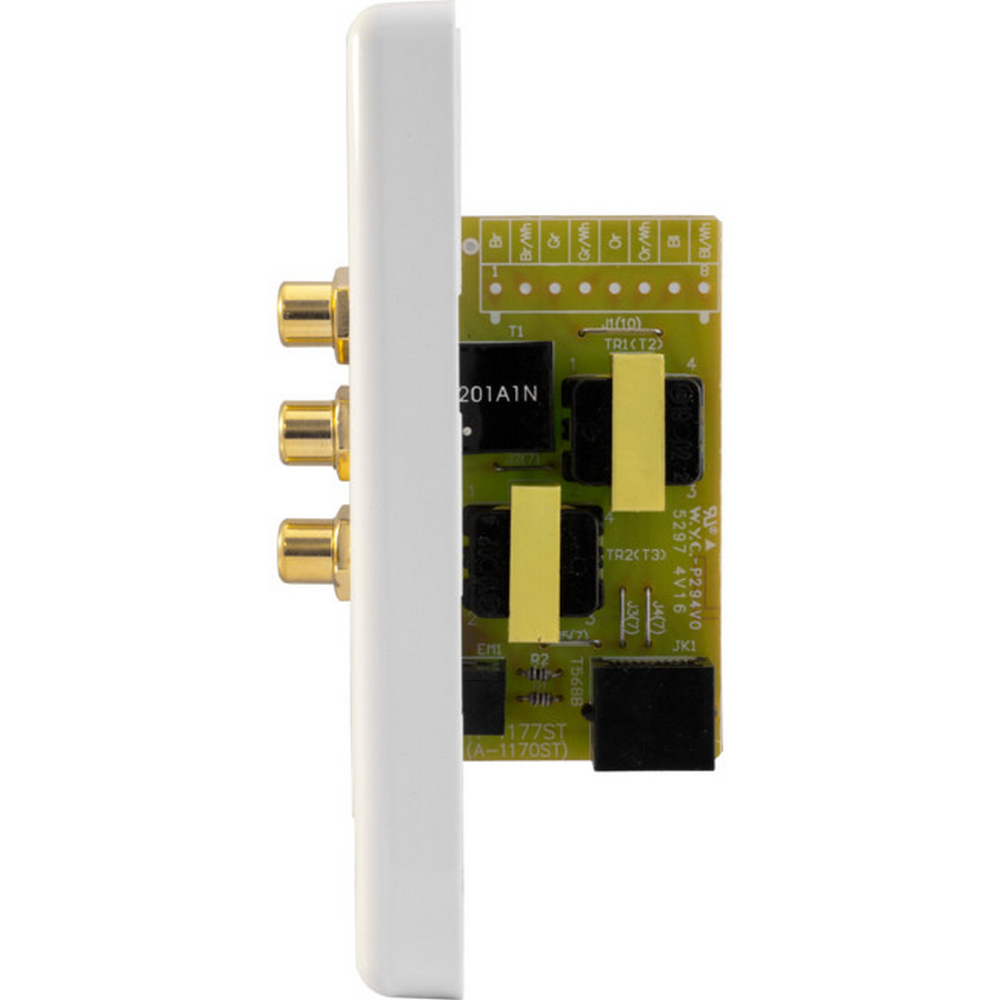

• Composite AV Transmitter & Receiver wall plates
• Surface mount IR receiver
• PRO1142 Dual IR emitter
• Power supply: 12VDC 200mA

Many new homes and office buildings already contain structured cabling systems of not only electrical and phone wiring, but also inexpensive Cat5 twisted pair cable, which is commonly used as a data line. Take maximum advantage of this existing wiring by adding baluns to each end. These small transformers convert audio and video signals from unbalanced to balanced and vice versa, making the necessary impedance adjustments for A/V signal transmission between different wiring systems. This means that you can run your signal over inexpensive Cat5 wiring, rather than rewiring your home in order to send video and audio signals from roomto room.

Ideal for such devices as DVD players, satellite receivers, Cable boxes, Video Games, plasma and LCD displays, projectors, monitors, amplifiers, switchers, and other equipment supporting audio or video signals and transmitted via cost-effective unshielded twisted pair (UTP)cable in a point-to-point configuration.

IR system Includes -
IR receiver and 1 dual IR emitters (PRO1142 also availableseparately) that deliver commands to 2 components, expandable up to 4 devices. The integrated IR-Repeater is made up of a receiver that picks up the signal from your remote, and emitters for sending the signals to the components. The IR emitters and AC adapter plugs into the Transmitting wall plate and the IR Receiver plugs into the Receiving wall plate. Both the IR emitters and receiver comes with a 10ft cable attached to it for your convince.

Specifications:

• Impedance: 100Ω unbalanced
• Bandwidth: Video: DC~60 MHz
• Infrared Component:
  • IR control though the integrated IR repeater
  • Receive Frequency: 34kHz to 40kHz
  • Transmit Frequency: 38kHz
  • Range: On Axis – 50ft / 30º Off Axis – 40ft
