Overview

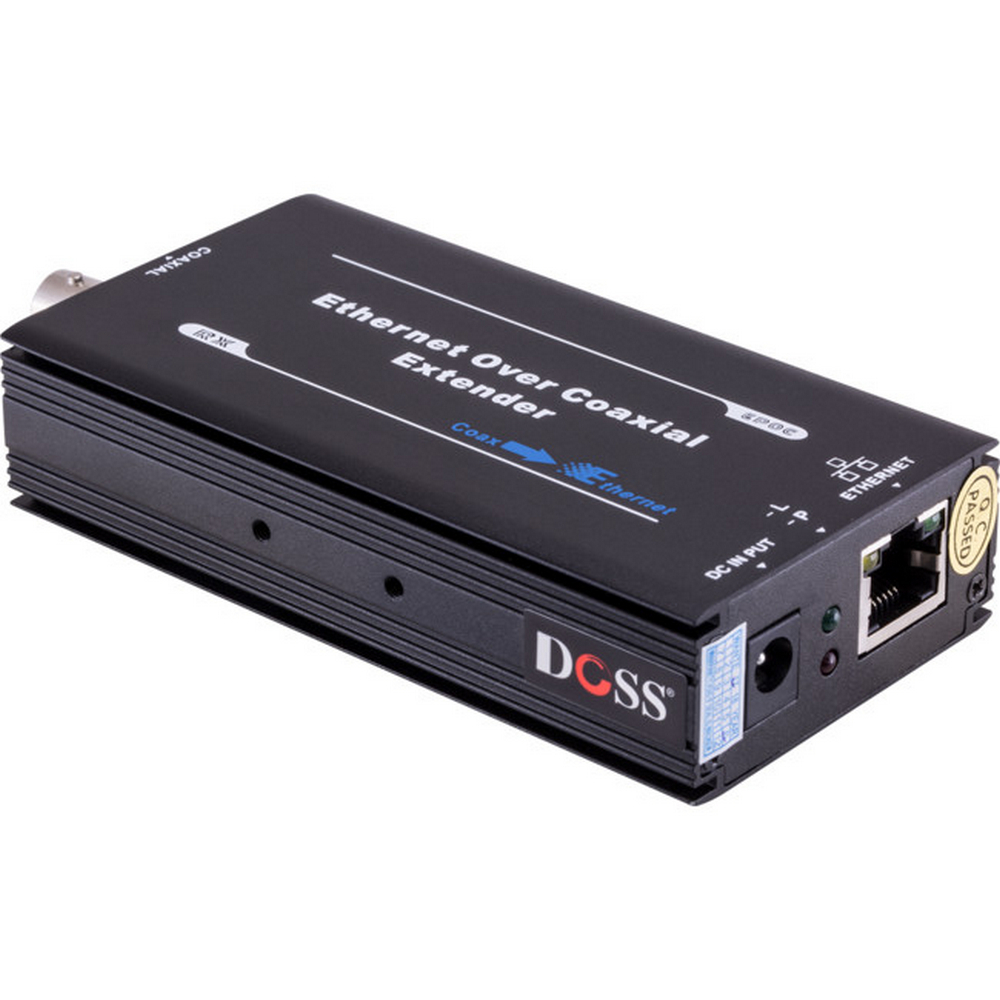

The IPOC1KR is Ethernet and power signal receiver over single coaxial cable. The IPOC1KR is used with IPOC1KPT, which is an ideal solution for reconstruction of old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance reach max up to 1000 metres.
With high speed modern technology, the physical bandwidth is up to 100Mbps (bidirectional). The IPOC1KR is built-in multi-stage surge and lightning protection protect video equipment against damaging voltage spikes and providenoise immunity to ensure quality signals without disturbing"hum-bars".
The IPOC1KR is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.

Features

Single Channel Ethernet and Power Receiver over Single Coaxial Cable

• Ethernet transmission distance reaches max up to 1000 meters
• Power transmission distance reaches max up to 1000 meters
• Meet standards of EEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
• Support IEEE802.3af standard; automatically detect and recognize IEEE802.3af standard PD equipments and provide power to PD equipments
• High speed modem technology, the physical bandwidth is up to 100Mbps (bidirectional)
• Multi-stage strong surge and lightning protection design
• Low power consumption, automatic error-correction coding technology
• Easy to install, plug-and-play mode, fast network connection

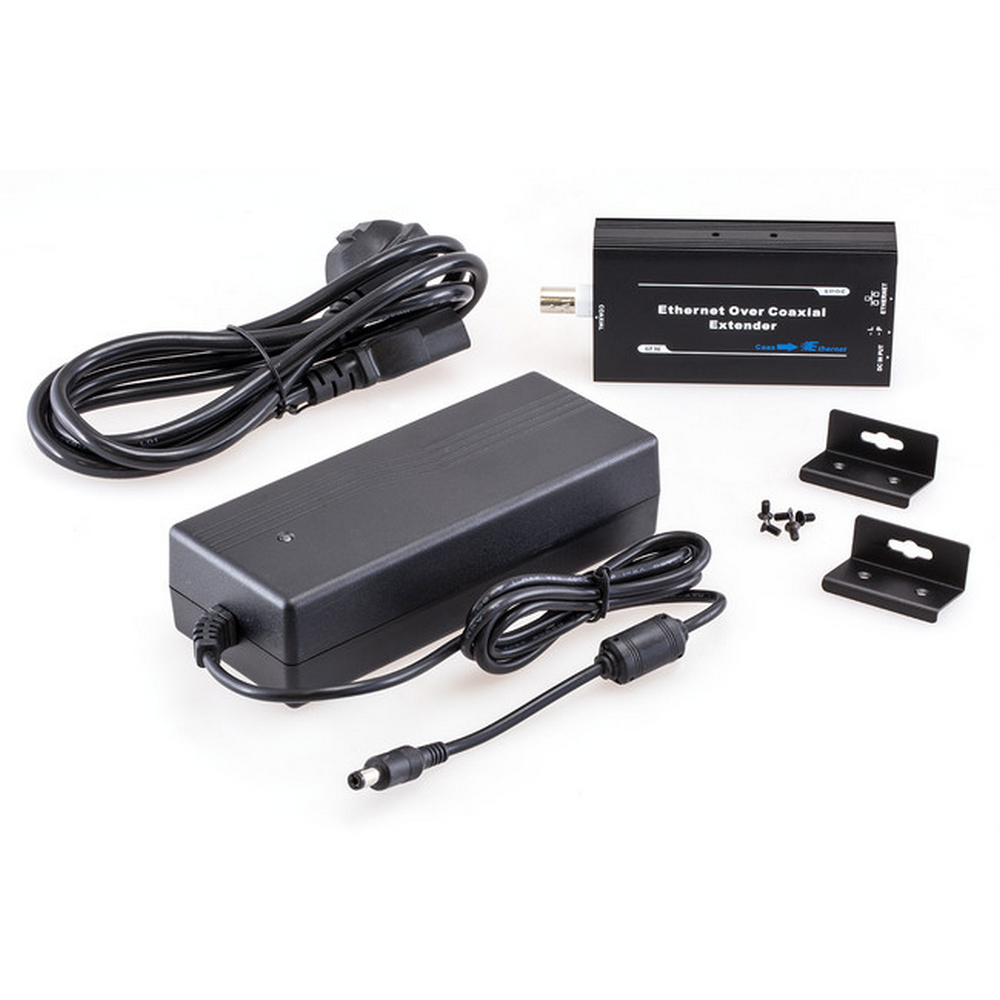

• Include extra 53VDC/1.25A power adaptor
• {tab Specifications}

  Technical Specifications

  Model		IPOC1KR
  Product Name		Single Channel Ethernet and Power Receiver over Single Coaxial Cable
  Power Supply	Power Adaptor	Input:100-240VAC      Output: 53VDC/1.25A
  	No-Load Power	1.5W(max)
  RJ45Interface	Ethernet Interface	RJ45 Interface
  	Transmission Distance	100m (max) over cat5e/6
  	Standards	IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE 802.3af
  	Physical Speed	100Mbps(bidirectional)

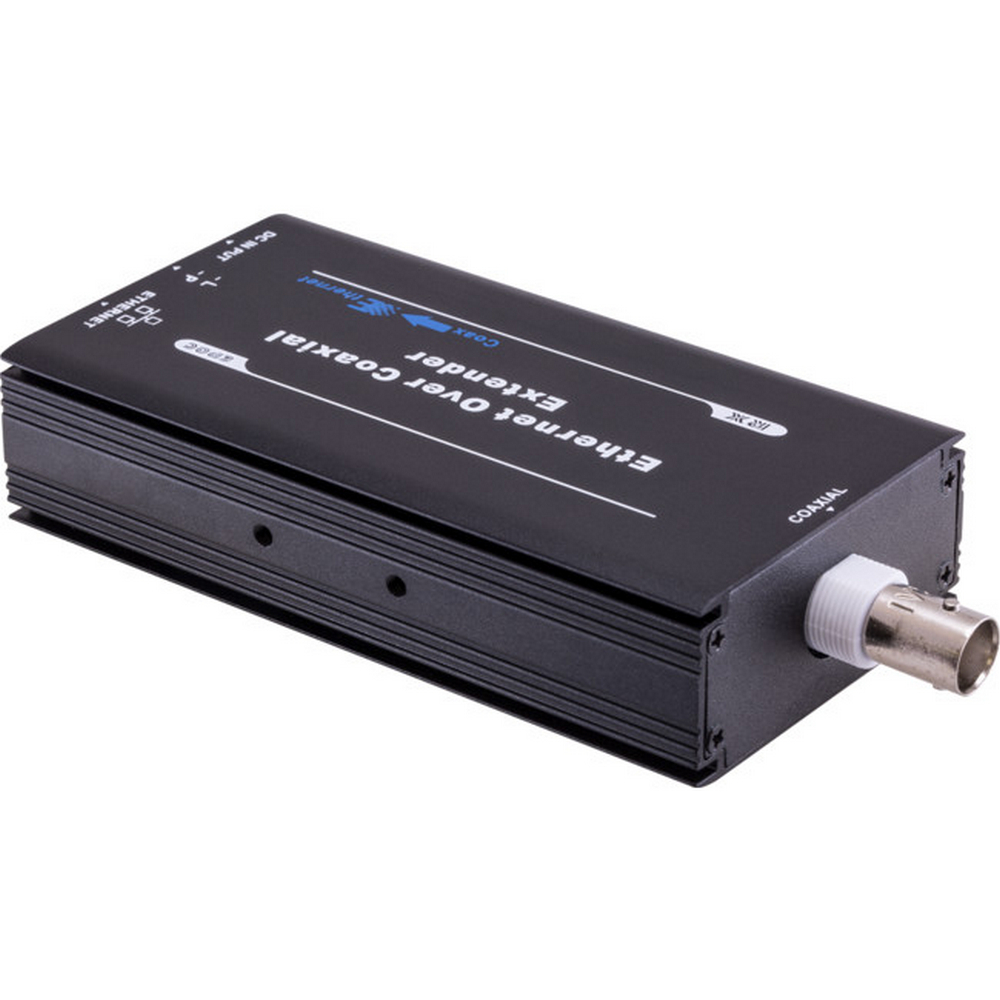

  Coaxial Cable Interface	Coaxial Cable Interface	BNC connector
  	Coaxial Cable Impedance	75Ohm
  	Maximum Distance	1000m(SYV75-5 Cable)
  Transmission Distance	Distance	Bandwidth
  	300m	100Mbps
  	500m	90Mbps
  	800m	70Mbps
  	1000m	55Mbps
  LED Indicators	Green Light	Coaxial cable connecting indicator
  	Red Light	Power indicator
  Lightning Protection Grade	Network Port	Differential Mode:2KV Common Mode:4KV Executive Standard: IEC61000-4-5
  	Device	contact discharge: 3 grade air discharge: 3 grade Executive Standard: IEC61000-4-2
  Mechanical	Dimensions(LxWxH)	103x54x26mm
  	Housing	Aluminum
  	Body Color	Black
  	Weight	145g
  Environmental	Operating Temperature	0~55°C
  	Storing Temperature	-25°~85°C
  	Relative Humidity	0~95% (non-condensing)

  {tab Applications} Security Monitoring System


• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
