Overview

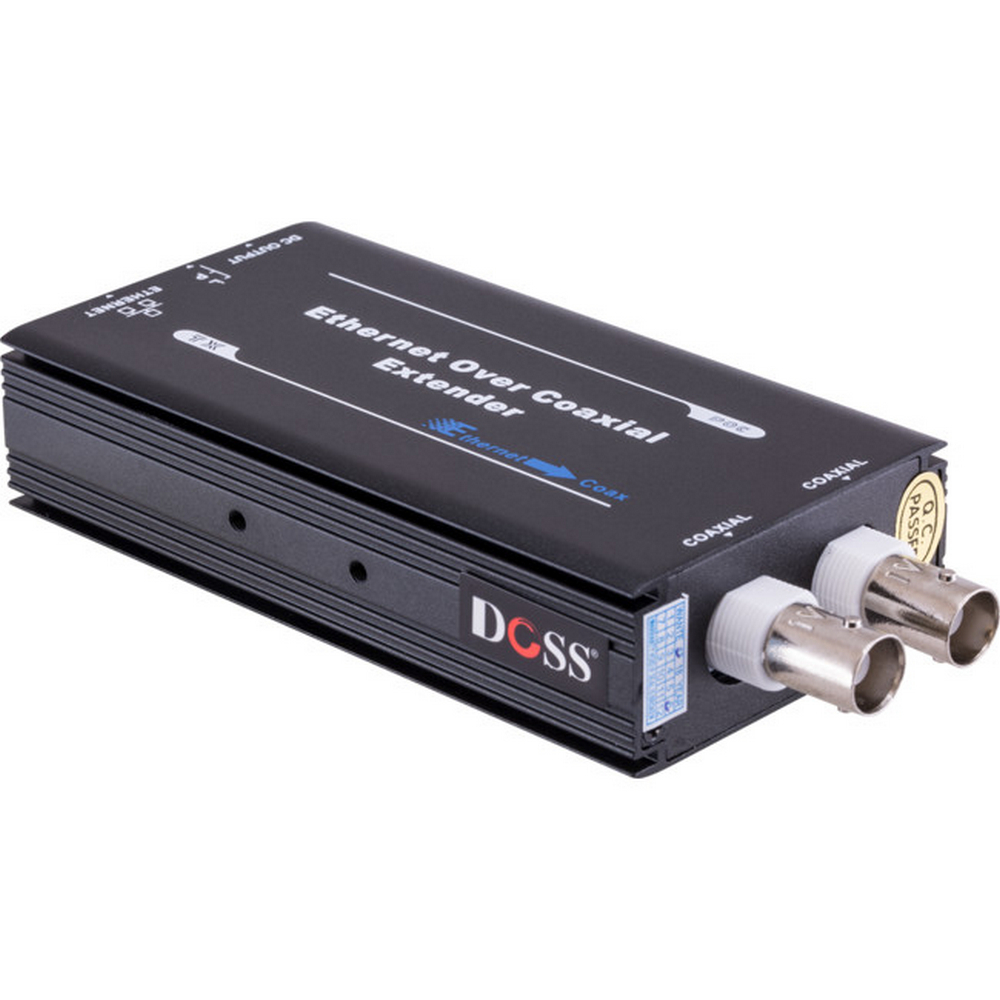

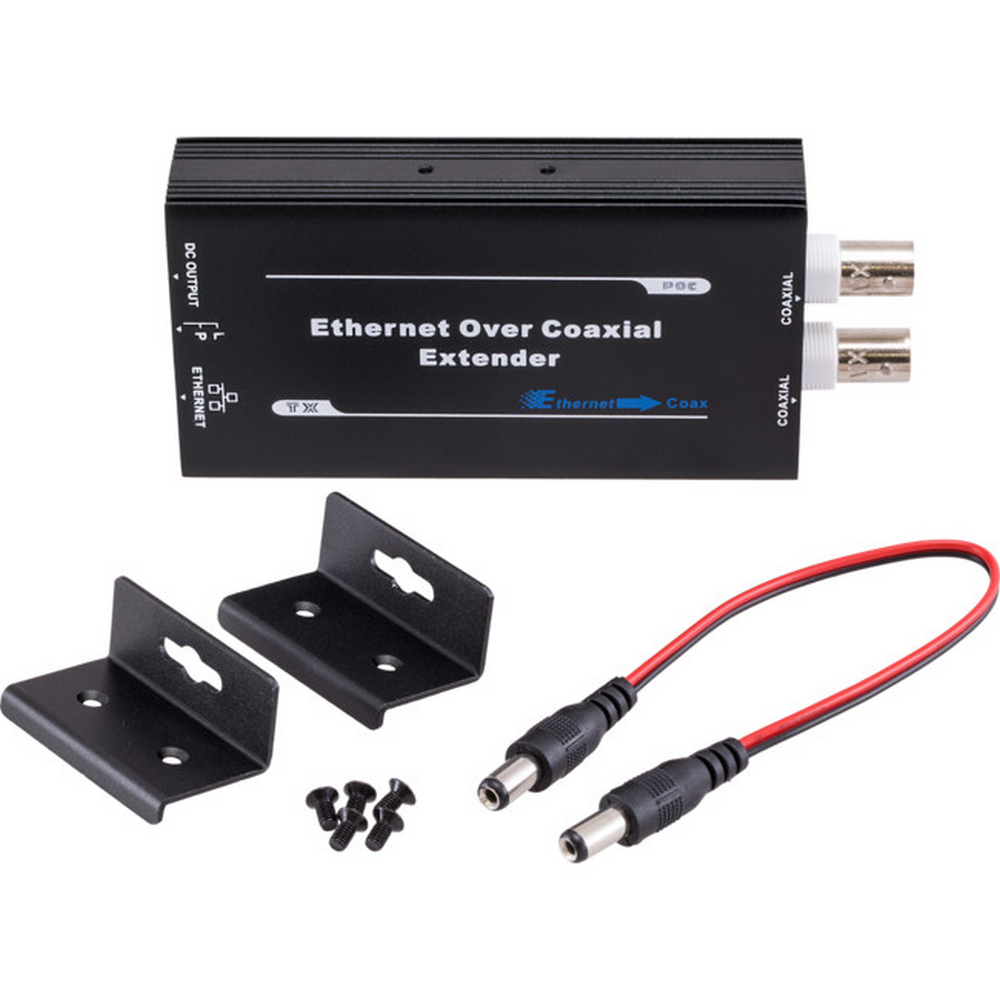

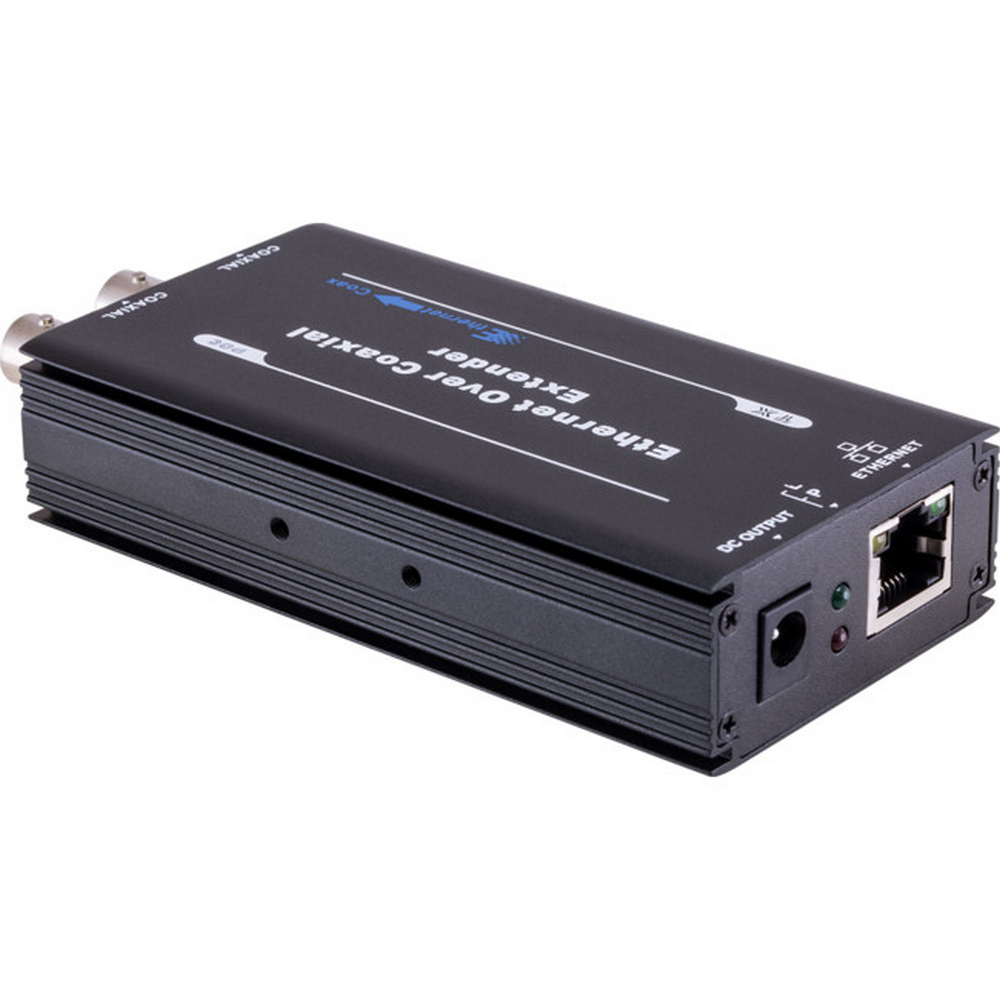

  IPOC1KPT is Ethernet and power signal transmitter over single coaxial cable. The IPOC1KPT is used with IPOC1KR, which is an ideal solution for reconstruction of old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance reach max up to 1000meters. The IPOC1KPT is able to provide power to POE cameras over network cable and it is able to provide power to NONE-POE cameras, too.
With high speed modern technology, the physical bandwidth is up to 100Mbps (bidirectional). The IPOC1KPT is built-in multi-stage surge and lightning protection protect video equipment against damaging voltage spikes and providenoise immunity to ensure quality signals without disturbing "hum-bars".
The IPOC1KPT is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.

Feature

Single Channel Ethernet and Power Receiver over Single Coaxial Cable

• Support cascade mode; maximum four transmitters can be cascaded
• Ethernet transmission distance reaches max up to 1000 meters
• Power transmission distance reaches max up to 1000 meters with max 12W output power
• Provide power to devices; max up to 12V/1A
• Meet standards of EEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
• Support IEEE802.3af standard; automatically detect and recognize IEEE802.3af standard PD equipments and provide power to PD equipments
• High speed modem technology, the physical bandwidth is up to 100Mbps (bidirectional)
• Multi-stage strong surge and lightning protection design
• Low power consumption, automatic error-correction coding technology
• Easy to install, plug-and-play mode, fast network connection

{tab Specifications}

Technical Specifications

{tab Application}

Applications

Security Monitoring System

• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses

Application Diagram

{tab FAQ}

Q: What is the maximum units I can cascade the transmitter and receiver?

A: Due to the limitation of the bandwidth, it is suggested to use one Transmitter to one Receiver if all the Receivers are less than 5m apart, if the receivers can be 10m apart, 3x Transmitters + 1 x Receiver can be used, if all the receivers are located in different level/floor of the building, you can use as many as 10 pairs.

Q: What is the difference between the transmitter and receiver?

The transmitter is connected to the IP camera side, nopower supply required; the receiver is connected to Switch or NVR side, it requires the POE power.
