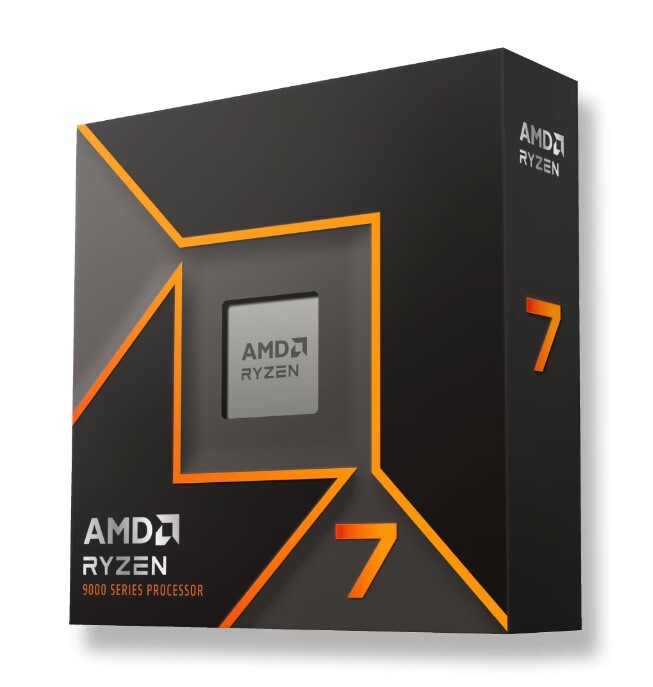

AMD Ryzen 7 9700X 8Cores/16Threads, 65w, Max Boost Clock 5.5 GHz, PCIE 5.0, 32MB Cache, Radeon™ Graphics, 2200 MHz Frequency
General Specifications

• Form Factor: Desktops , Boxed Processor
• Market Segment: Enthusiast Desktop
• AMD PRO Technologies: No
• Former Codename: Granite Ridge AM5
• Architecture: Zen 5
• CPU Cores: 8
• Multithreading (SMT): Yes
• Threads: 16
• Max. Boost Clock: Up to 5.5 GHz
• Base Clock: 3.8 GHz
• L1 Cache: 512 KB
• L2 Cache: 8 MB
• L3 Cache: 32 MB
• Default TDP: 65W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Package Die Count: 2
• CPU Socket: AM5
• Supporting Chipsets; A620 , X670E , X670 , B650E , B650 , X870E , X870
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Thermal Solution (PIB): Not Included
• Recommended Cooler: Premium air cooler recommended for optimal performance

Supported Extensions:

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3, x86-64

Operating System Support:

• Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 2.0 (480Mbps) Ports: 1
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28 , 24

Additional Usable PCIe Lanes from Motherboard

• X870E 8x Gen4
• X870 4x Gen4
• X670E 12x Gen4
• X670 12x Gen4
• B650E 8x Gen4
• B650 8x Gen4

NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 192 GB
System Memory Subtype: UDIMM
Max Memory Speed

• 2x1R DDR5-5600
• 2x2R DDR5-5600
• 4x1R DDR5-3600
• 4x2R DDR5-3600

Graphics Model: AMD Radeon™ Graphics

Graphics Core Count: 2

Graphics Frequency: 2200 MHz

USB Type-C® DisplayPort™ Alternate Mode: Yes

Product ID Boxed: 100-100001404WOF
