General Information
Model Number 100-100001368WOF

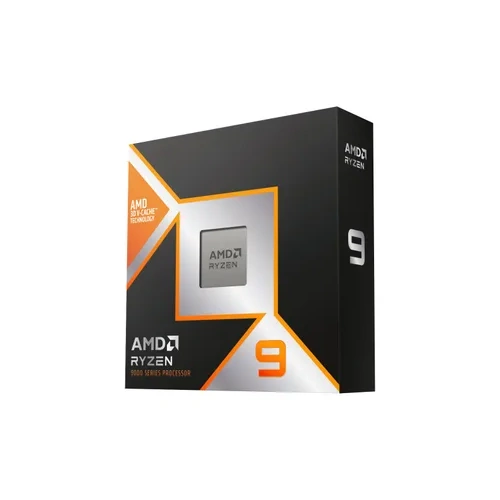

Name AMD Ryzen™ 9 9900X3D
Family Ryzen
Series Ryzen 9000 Series
Form Factor Desktops, Boxed Processor
Market Segment Enthusiast Desktop
AMD PRO Technologies No
Regional Availability Global
Former Codename Granite Ridge AM5
Architecture Zen 5
Unlocked for Overclocking Yes (Warranty does not cover overclocking damage)
CPU Socket AM5
Thermal Solution (PIB) Not Included
Recommended Cooler Liquid cooler recommended
Max Operating Temperature (Tjmax) 95°C
OS Support Windows 11 / 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit

Core Specifications
# of CPU Cores 12
Multithreading (SMT) Yes
# of Threads 24
Max. Boost Clock Up to 5.5 GHz†
Base Clock 4.4 GHz‡
L1 Cache 960 KB
L2 Cache 12 MB
L3 Cache 128 MB
Default TDP 120W
Package Die Count 3

Memory Support
System Memory Type DDR5
Memory Channels 2
Max. Memory 192 GB
System Memory Subtype UDIMM
Max Memory Speeds - 2x1R DDR5-5600 - 2x2R DDR5-5600 - 4x1R DDR5-3600 - 4x2R DDR5-3600
ECC Support Yes (requires motherboard support)
AMD EXPO™ Support Yes

Connectivity & Expansion
Native USB 3.2 Gen 2 Ports 4 (10 Gbps)
Native USB 2.0 Ports 1 (480 Mbps)
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes 28 total / 24 usable
NVMe Support Boot, RAID 0/1/5/10

Graphics Capabilities
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
USB Type-C® DisplayPort™ Alt Mode Yes

Advanced Technologies
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Boost Technology Precision Boost 2



(100-100001368WOF)

36
SKU 100-100001368WOF
Model # 100-100001368WOF
Barcode # 730143315579
Brand AMD
