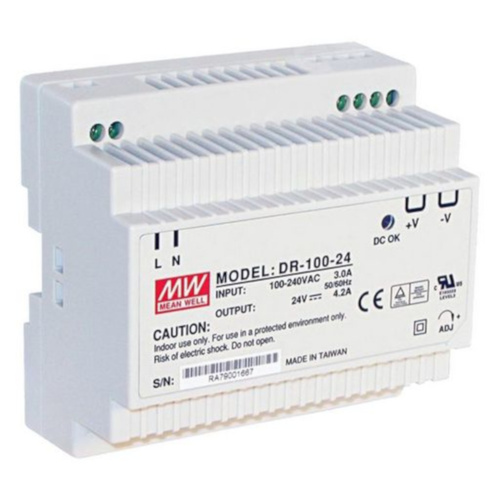

The DR100 series DIN rail mount switching power supplies are designed with a fully isolated plastic case to prevent user contact and the risk of shock.
Other standard features include its no load power consumption to save energy, short circuit, over load, over voltage and over temperature protections.

12VDC 7.5A / 24VDC 4.2A Power output
Integrated protection : overvoltage / overload / short circuit
Integrate to protect IT & security in home, office and retail environments
Designed for installation on DIN rail TS-35/7.5 or 15
Prevents overheating with free air convection
Isolation class II
LED indicator for power on
No load power consumption<1W
100% full load burn-in test

Specifications

Code DR100-24
Size 100x93x56mm
Vin 230Vac
Vout 24Vdc
Iout 4.2A

(DR100-24)

12 Months

SKU DR100-24
Model # DR100-24
Brand Securview
Unit Of Measure Each
