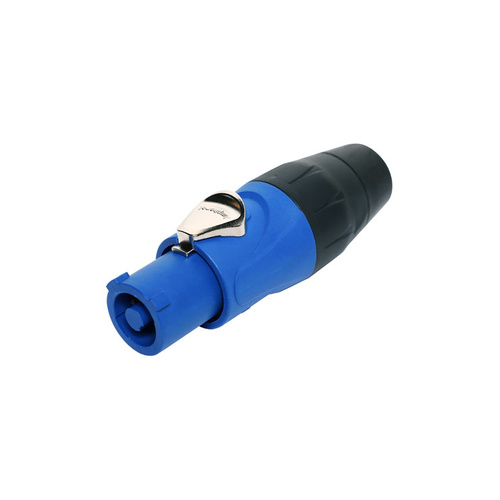

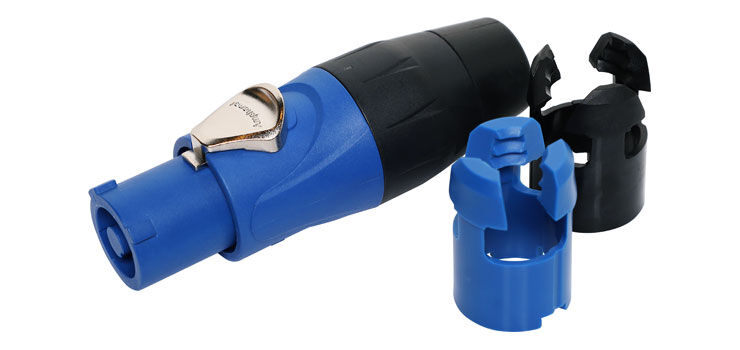

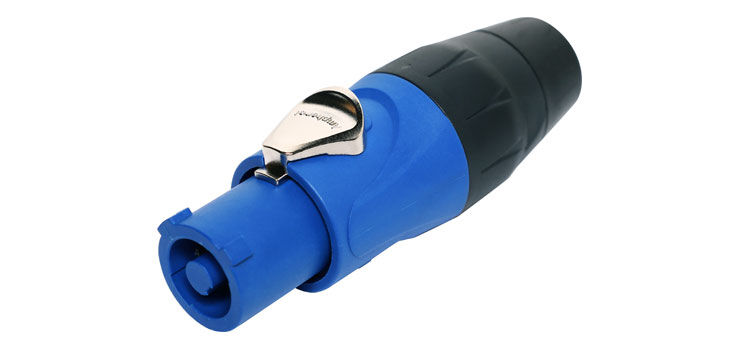

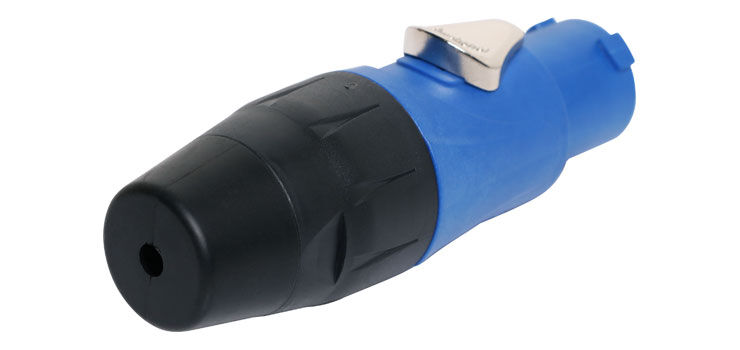

Extra heavy duty Amphenol Power connector as used in commercial heavy duty power applications. Power In. HP-3-F 25A 250V. SAA approved.





When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.

Features

• Locking 25 A / 250 V AC appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• User friendly latch design for easy handling

 Specifications

• Current Rating: 25 A
• Voltage Rating: 250 V
• Mounting Angle: Straight
• Mounting Style: Cable
• Number of Ports: 1 Port
• Series: HP
• Contact Material: Brass
• Contact Plating: Silver
• Flammability Rating: UL 94 HB
• Housing Material: Polyamide (PA)
• Insulation Resistance: 2 GOhms
• Maximum Operating Temperature: + 75 C
• Minimum Operating Temperature: - 25 C
• Wire Gauge: 14 AWG
