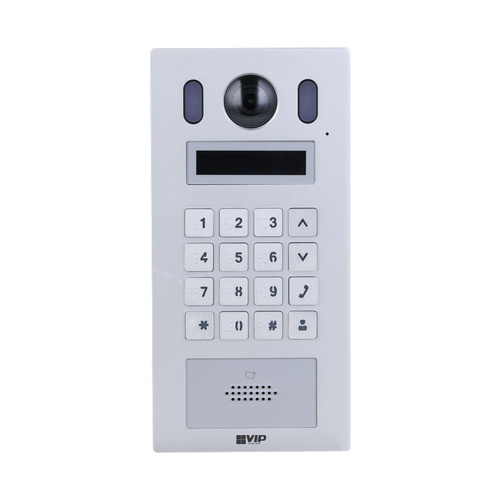

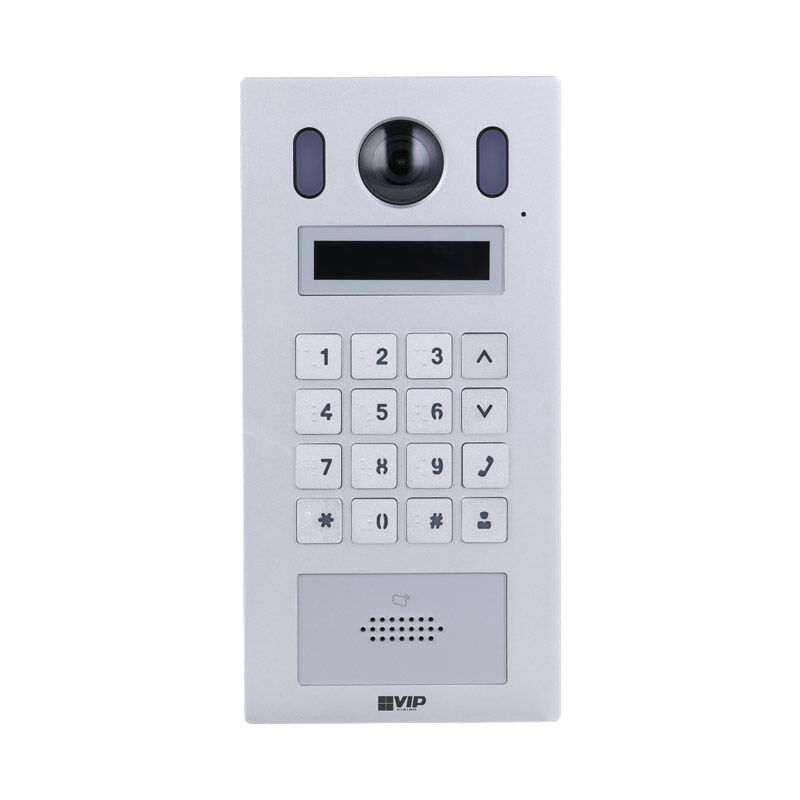

This INTIPADSD2 is an intercom door station from the VIP Vision Apartment Series which can improve access and communication in multi-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.

Product Features:

• 1/2.9’’ 2.0MP sensor, 1080p Full HD resolution
• Wide angle lens with 140° horizontal field of view
• Keypad for code unlock & NFC reader for card access
• Connect up to 200 intercom monitor(s) via Ethernet
• Intuitive, easy-to-use mechanical button interface
• 48VDC / PoE (802.3af/at) power input support
• IP65/IK08 weather & vandal resistant front plate
• Backlit OLED interface & supplemental white light

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

*This door station is compatible with 13.56MHz NFC cards only.
*Please note that this model requires a firmware update to use remote access/DMSS app.

Specifications

General

• Main Processor : Embedded Microprocessor
• Button Illumination : Backlit 2.3" OLED, Supplemental White Light (AGC)
• Card Support : Mifare, Up to 30mm card detection, AM Modulation, 13.56MHz, 42dBuA/m@10m max. TX power
• Tamper Detection : Yes
• Internal MicroSD Slot : MicroSD Slot, up to 256GB (sold separately)
• Max. Additional Door Stations : 20
• Max. Indoor Monitors : 500
• App Connection : N/A

Camera

• Camera System : 1/2.9" 2.0 Megapixel CMOS with 2mm lens (Horizontal. FoV: 140°)
• Low-Light Application : N/A
• Input / Output : 1 x RJ45, 1 x 12V/600mA, 1 x Alarm I/O, 1 x Wiegand, 1 x RS-485
• Audio / 2-Way Talk : Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
• Ethernet / Network : 10M/100Mbps Self-adaptive / TCP/IP protocol

Environmental

• Vandal Resistant : IK08
• Ingress Protection : IP65 (Front plate)
• Construction : Aluminum
• Installation Options : Surface mount / Flush mount (sold separately)
• Power Input : 48VDC, PoE (802.3af/at)
• Power Consumption : Standby <5W / Operation <7W
• Dimensions : 200 x 98 x 35mm

Other

• Interface : 1 x Door Chime, 1 x Exit Button, 1 x Lock Control
• Operating Environment : -40°C ~ +60°, 10~90% relative humidity
