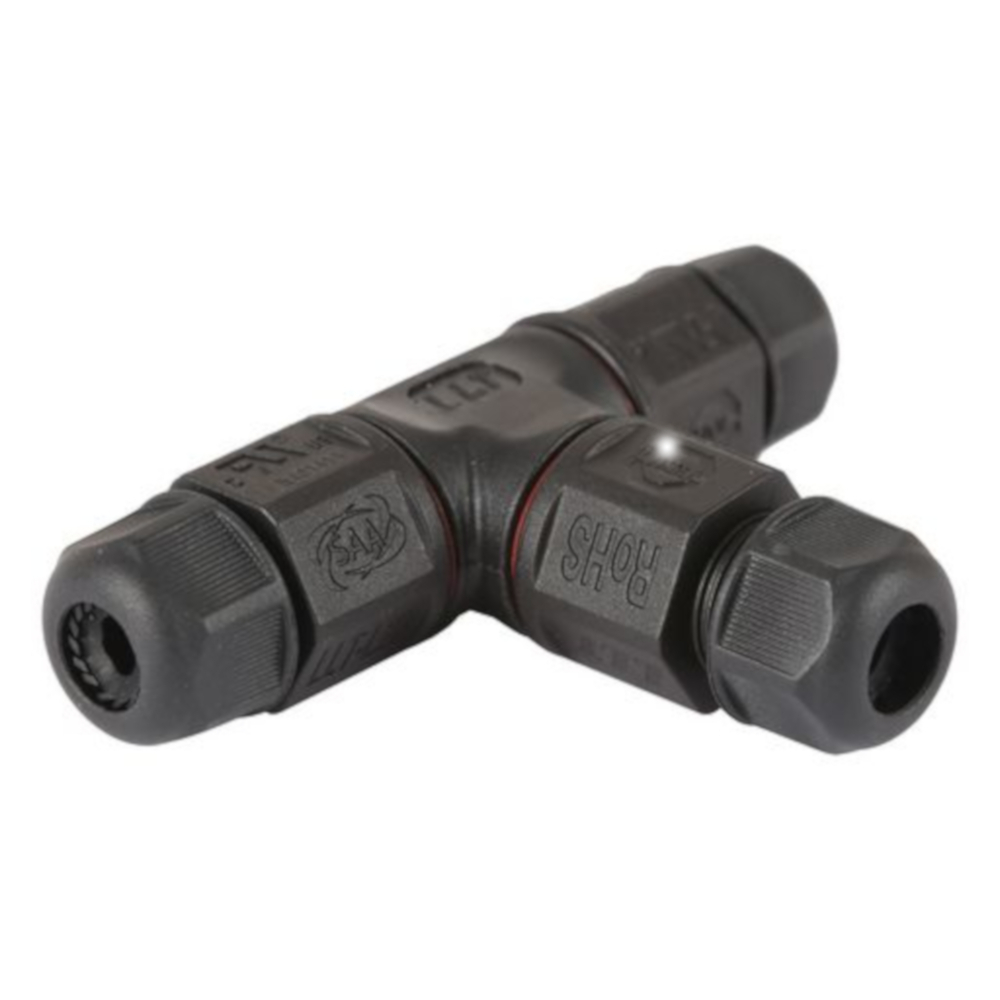

3 WAY IP68 WATERPROOF CABLE CONNECTOR

6.5MM TO 10MM CABLE DIAMETER

3 way waterproof connector with silicon gel gasket. It has a nylon glass fiber reinforced casing. 380Vac 25A power rating. IP68 waterproof. To suit circular cable with 6.5mm to 10mm diameter. For flat sheathed cables, connector ends need to be sealed with waterproof compound

Features:

  • Splits 3-Way round cable up to 380Vac 25A
  • Screw Terminal material: Brass Ni Plated
  • Cable terminals; max 4mmØ braided
  • Silicone Gel gasket and O rings
  • Nylon glass fibre reinforced (PA66 + GF V0)
  • Cable diameter: 6.5mm-10.0mm
  • IP rating: IP68
  • High temp rating: -40 to 105°C
  • Contact resistance: 100Mohm at 500V
  • Breakdown voltage: 1500V/1Min 5mA

Specifications:

Manufacturer CLA
Current 25A
Voltage 380Vac
Cable 6-10mmØ
IP Rating IP68
Split 3 Way

(WPC002)

12 months

SKU WPC002
Model # WPC002
Unit Of Measure 1
