Description

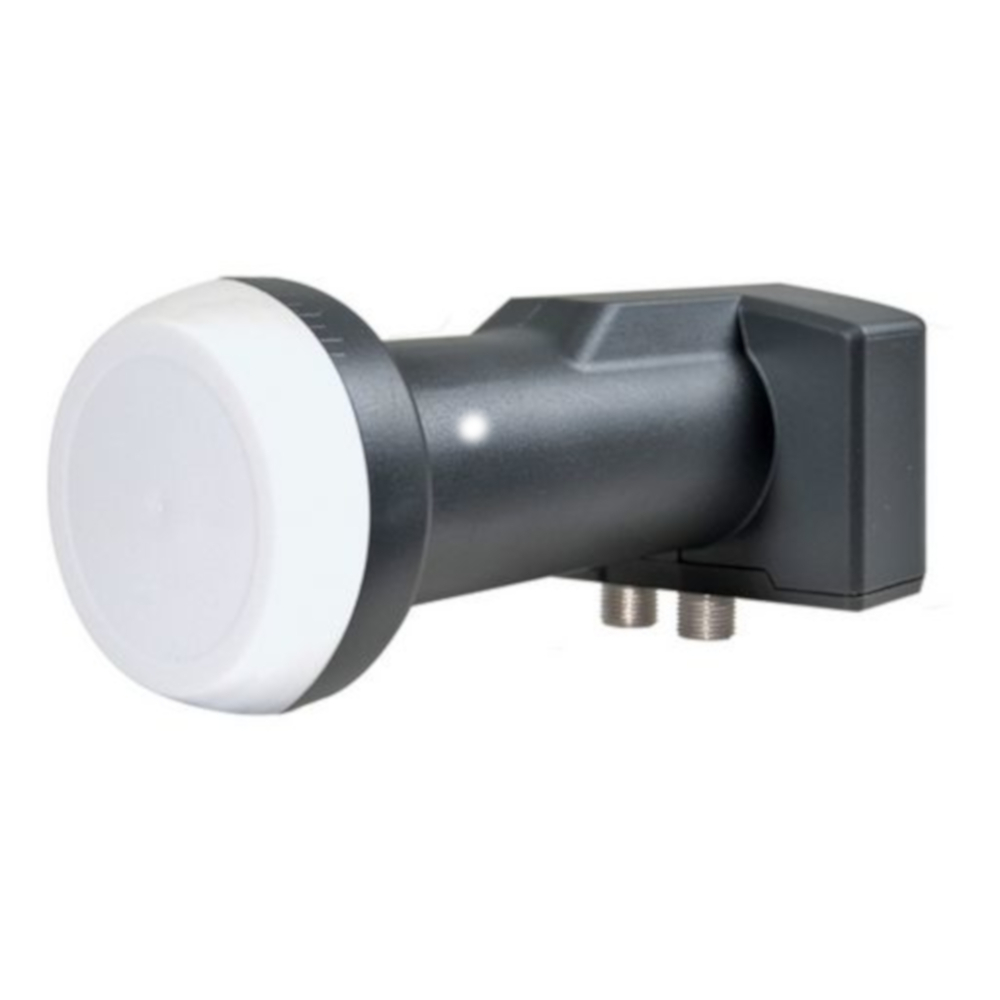

The low current twin output LNBF is used to connect 1 x PVR or 2 x standard receivers to a single dish
Each receiver is able to select polarity independently
The LNBF is commonly used for Foxtel or VAST services on Optus D3 & 10
The Acer LNBF has a L.O. frequency of 10.7 GHz
Foxtel approved F30834

The low current twin output LNBF
1 or 2 receivers to a single dish
ie. a Foxtel PVR
Each receiver is able to select polarity independently
Foxtel or VAST on Optus D3 & 10
L.O. frequency of 10.7 GHz

Input Frequency Range 11.70 to 12.75 GHz
Output Frequency 1000 to 2050 MHz
L.O. Frequency 10.7 GHz
Noise Figure Room Temperature: Typ 1.1 dB. Max 1.3 dB
Gain Ripple In 26 MHz Bandwidth: Max 1 dB, In band: Typ 5 dB. Max 7 dB
Image Rejection Min 40 dB
1 dB Compression Point Min 0 dB
3rd Order Intermodulation (Two Tones). Intercept Point: Min 10 dB
L.O. Stability Over Temperature: Max ± 2.5 MHz
L.O. Phase Noise 1 kHz Offset Max: 55 dBc/Hz, 10 kHz Offset Max: 75 dBc/Hz, 100 kHz Offset Max: 95 dBc/Hz,1 MHz Offset Max: 105 dBc/Hz
Output VSWR @ 75 ? Max 2.0
Cross-Polar Isolation Min 20 dB Typ 25 dB
Polarity Switching Voltage Vertical: Min 10.5 V Max 14 V, Horizontal: Min 16 V Max 19 V
DC Current Consumption Input Voltage Typ 75 mA Max 85 mA
Mobile Interference Suppression (1.8 GHz) - 15 dBm Output @ Monopole Antenna: Max - 40 dBm
Feedhorn Mounting 40 mm Standard Size
Operating Temperature - 40 °C to + 60 °C
